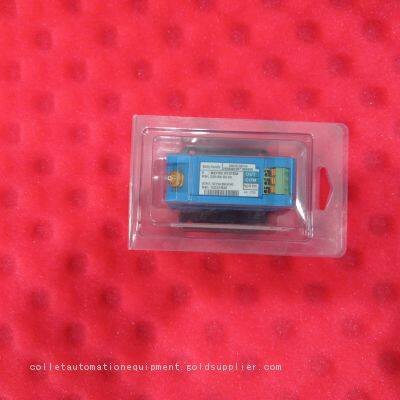

Bently Nevada 330180-50-00 3300 XL Proximitor Sensor

Sumset International Trading Co., Limited

Parent company: Xiamen Hongxinhe Trading Co., Ltd.

Lina(Sales Manager/Technical Consultant)

Mobile (WhatsApp/Wechat): +86 18059276824

Email: sales7@nseauto.com

Address: Room 1904, Building B, Diamond Coast, No. 96 Lujiang Road, Siming District, Xiamen, Fujian, China 361001

Description
The 3300 XL 8 mm Proximity Transducer System consists of:
o One 3300 XL 8 mm probe,
o One 3300 XL extension cable1, and
o One 3300 XL Proximitor Sensor2.
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements3.

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other non-XL 3300 series 5 mm and 8 mm transducer system components5.
This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space6,7.

Proximitor Sensor
The 3300 XL Proximitor Sensor incorporates numerous improvements over previous designs. Its physical packaging allows you to use it in high-density DIN-rail installations. You can also mount the sensor in a traditional panel mount configuration, where it shares an identical 4-hole mounting

“footprint” with older Proximitor Sensor designs. The mounting base for either option provides electrical isolation and eliminates the need for separate isolator plates. The 3300 XL Proximitor Sensor is highly immune to radio frequency interference, allowing you to install it in fiberglass housings without adverse effects from nearby radio frequency signals. The 3300 XL Proximitor Sensor’s improved RFI/EMI immunity satisfies European CE mark approvals without requiring special shielded conduit or metallic housings, resulting in lower installation costs and complexity.
The 3300 XL’s SpringLoc terminal strips require no special installation tools and facilitate faster,
more robust field wiring connections by eliminating screw-type clamping mechanisms that can loosen.
