SARA-R422M-10S，SARA-R500S-01

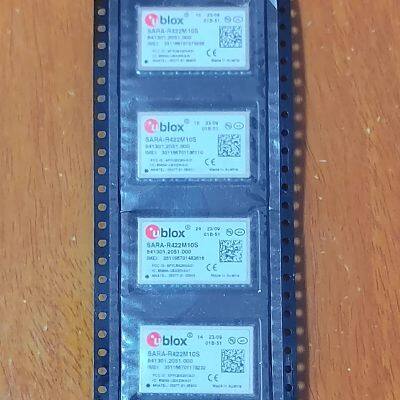

SARA-R422M-10S

Manufacturer: U-Blox

Description: RF TXRX CELL 4G LTE CATM1/NB-IOT

Family: RF transceivers and modems

Part Status: Active

RF Series/Standard: Mobile Phone

Protocol: 4G LTE CAT M1/NB-IoT

Modulation:-

Frequency: 700MHz, 850MHz, 1.7GHz, 1.9GHz Data Rate:-

Power-Output:-

Sensitivity: -107.5dBm

Serial interfaces: I2C, SPI, UART, USB

Antenna type: without antenna, castle-shaped

IC/Parts Used:-

Storage Capacity:-

Voltage-Power supply: 3.2V ~ 4.2V

Current-Receiver:-

Current-Transmission: 100mA ~ 490mA

Mounting Type: Surface Mount Type

Operating temperature: -40°C ~ 85°C

The SARA-R4 series modules are a multi-band LTE-M/NB-IoT/EGPRS multi-mode solution with a small SARA LGA form factor (26.0 x 16.0 mm, 96 pins). They can be easily integrated into compact designs and can be migrated seamlessly from other u-blox cellular module families. The SARA-R4 series modules provide software-based multi-band configurability, enabling international multi-region coverage in LTE-M/NB-IoT and (e) GPRS radio access technologies. The SARA-R4 series modules provide data communication over an extended operating temperature range of -40 °C to +85 ° C, with low power consumption and extended coverage into buildings and basements (as well as underground for NB-IoT). The SARA-R4 series of modules is compatible with the u-blox LISA, LARA, and TOBY cell module families, and is needle-specific compatible with the u-blox SARA-N, SARA-G, and SARA-U cell module families. This facilitates migration from other u-blox LPWA, GSM/GPRS, CDMA, UMTS/HSPA and higher LTE category modules, maximizing customer investment, simplifying logistics, and enabling very short time-to-market. With many interface options and an integrated IP stack, the SARA-R4 series modules are the choice for LPWA applications with low to medium data throughput rates, as well as for devices that require long battery life, such as for smart metering, smart lighting, telematics, asset tracking, remote monitoring, alarm panels, and connected health. Secure cloud product versions are available in the SARA-R4 family of modules, including and an immutable root of trust.
