Home > Products > Standard Test Vessels > IEC60335-2-6 figure 102 Carbon Steel Vessels for testing induction hotplates
IEC60335-2-6 figure 102 Carbon Steel Vessels for testing induction hotplates
US$ 200 - 5000
/ Piece
1 Piece(Min. Order)
- Shenzhen
- T/T PayPal
- 10 days
You May Like
-
GB30720 Standard Aluminum Pans for Domestic Gas Cooking Appliance
-
IEC60335-2-6 Clause 21.102 1.8KG Loaded Test Vessel
-
IEC60335-2-9 Figure 102 4.5KG Test Load for Testing Rotating Spits
-
EN30-1-1 Standard Aluminum Sauce Pans for Testing on Gas Burners
-
IEC60884-1 Clause 22 figure 18/19 Maximum and minimum withdrawal force Test Apparatus
-
IEC60884-1 Cold Bend Test Apparatus
Product Details
| Brand Name | Pego | Place of Origin | China | |
| Model Number | PG-CSV |
Product Description
1. Introduction

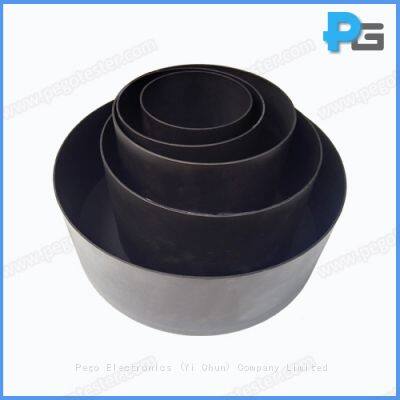

The carbon steel vessels are designed according to IEC60335-2-9:2002 figure 104, IEC60335-2-6 Fig. 102, GB4706.14-2008 figure 10 and GB4706.22-2008 figure 102, they are applied to test the induction hotplates. The vessels are made of low carbon steel having a maximum carbon content of 0.08%, and the surface is sprayed with high temperature non-stick coating. There are totally five vessels.
2. Parameter
Diameter of Cooking Zone (mm) | Dimension | |||
d (mm) | e (mm) | a (mm) | c (mm) | |
≤110 | 110 | 140 | 2±0.5 | <0.006 d |
＞110≤145 | 145 | 140 | 2±0.5 | <0.006 d |
＞145≤180 | 180 | 140 | 2±0.5 | <0.006 d |
＞180≤220 | 220 | 120 | 2±0.5 | <0.006 d |
＞220≤300 | 300 | 100 | 2±0.5 | <0.006 d |
3. Figures:
