GN010011P53 Gallium Nitride Diode GaN HEMT RF Microwave Optical Communication Chips Electronic Components ic Parts Supply

GN010011P53 series GaN Internally Matched Power Amplifier
Performance characteristics:

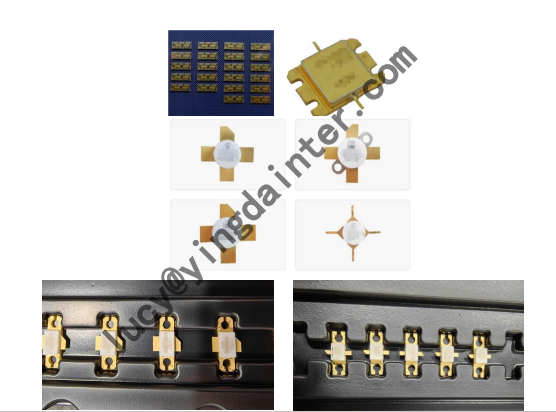

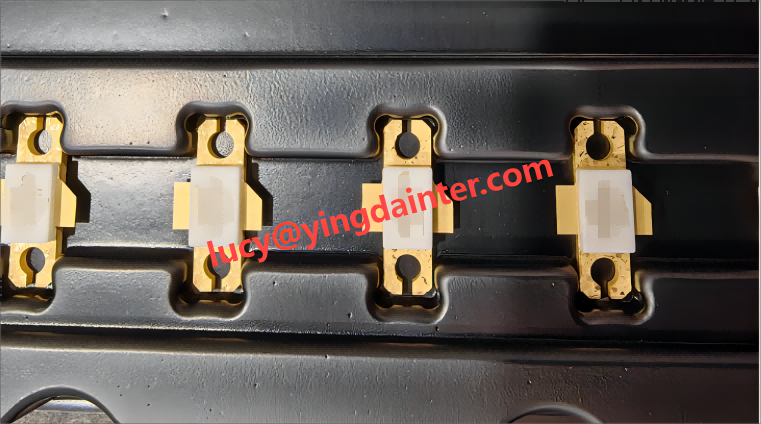

Covering the working frequency band:0.99 ~1.13GHz Good 50Ω impedance matching,easy to cascade Metal ceramic tube sealed package Screw-fixed flange package or welded pill package
Product introduction:
Electrical performance table:
1.Working conditions:50Ω test system,VDS=+48V,IDS=50mA.((Typical test conditions: TA = +25℃,pulse width:10us,4% duty cycle.)
Parameter	Test Conditions			Minimum		Typically	maximum		Unit
Saturation power	Freq.=0.98GHz~1.08GHz Vgs=-3.48V VDS=+50V IDsq=5~100mA			53.0		-	-		dBm
Power Gain				35.0		-	-		dB
Power Added Efficiency				65.0		-	-		%
Power Flatness						-	2.0		dB
Pinch-off voltage	VDS=6V		IDS≤100mA	-5		-	-3.50		V
Gate-source reverse   Current	VDS=0V		VGS=-10V			-	5		uA
Note:The final technical indicators and dimensions are subject to the technical agreement.Products with similar power specifications,higher efficiency and wider bandwidth can be customized.
Working limit parameter:
Source-drain voltage Vds		+100V			wasted power （Tc=25℃)			220W
Gate-source voltage Vgs		-10V			storage temperature			-55℃~+125℃
Operating temperature		-40℃~+75℃			-			-

AFTER-SALES GUARANTEE

1. Each product from YINGDA has been given a warranty period of 365 days. During this period, we could provide free technical maintenance if there are any problems about our products.

2. If you find quality problems about our products after receiving them, you could test them and apply for unconditional refund if it can be proved.

3. If the products are defective or they don't working, you can return to us within 1 YEAR, all transportation and customs charges of the goods are borne by us.

Yingda is a leading and trusted supplier of all electronic components such as IC , Connectors, Transistors, Diodes, Capacitors, MOSFET, Power Cords, Adapter & All type of Automotive, Medical, Agricultural, Consumer electronics grade components. We provide all electronic components that exist. Yingda has always been a customer-driven and quality-focused company and we have more than 10 years experience in this field. You can fully trust us since we have good reputation and always been 100% honest and genuine to our clients.

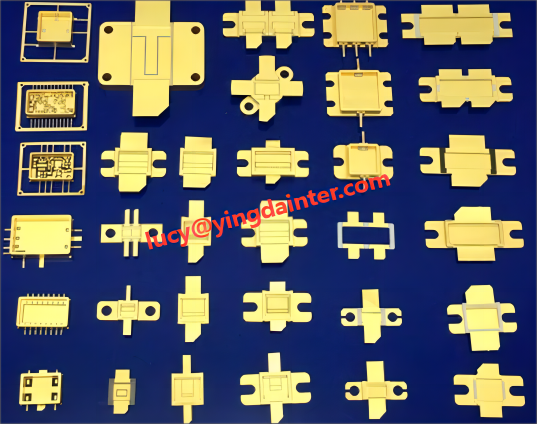

MADE-IN-CHINA alternative solution provider for brand power tubes (internal matching, external matching), amplifier chips, amplifier modules, etc.

Main products: amplifiers, attenuators, detectors, diodes, directional couplers, front-end modules, hybrid microcircuits, infrastructure subsystems, mixers, demodulators, phase shifters, synthesizers, etc.

1. Microwave RF Devices MADE-IN-CHINA CNC Phase Shifters

2. High-frequency tubes, In-situ replacement: MA-COM, Motorola, SemeLAB, Microsemi, APT, Infineon, Toshiba, Mitsubishi, Hitachi, NEC

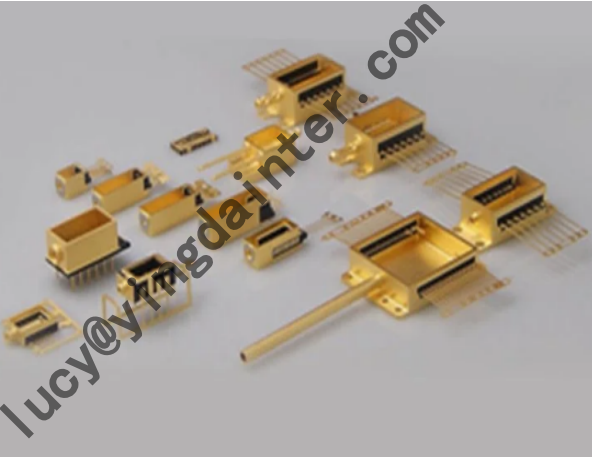

3. Domestic tube shell, substrate, packaging materials

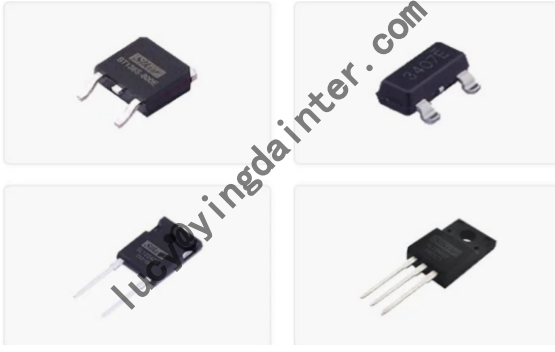

4. Domestic diodes and transistors, In-situ replacement: IR, ON, ST and other imported brands

If you have any question or any shortage parts recently, pls feel free to contact me.

FREE SAMPLS CAN BE PROVIDED FOR FIRST COOPERATION

I'll give you favorable price with short lead time and 365 days warranty.

We ensure to only provide 100% new & original parts for you, if not refundable.
