Home > Products > Hydraulic Press > HP-100 PLC Cylinder RAM Hydraulic Press
HP-100 PLC Cylinder RAM Hydraulic Press
- QINGDAO
- 15 days
You May Like
Product Details
| Brand Name | GUANFENG | Place of Origin | China | |
| Model Number | 100T | Certification | 9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 12 months | |
| Weight | 1300 | Dimension(L*W*H) | 730X1730X2200 | |
| Voltage | 380 | Condition | New | |
| Power(W) | 3 | CNC or Not | Normal | |
| Power Source | Hydraulic |
Product Description
Applications:
1. It is suitable for the press fitting and stretch forming of metal and plastic products as well as the movements of coining and overprinting.
2. It mainly applies to the fields of machine tool, engineering machinery, bearings, washing machine, automobile parts, motor components and powder metallurgy.
3. It is suitable for the molding of plastic products, such as DMC and BMC.
4. The machine, with a high degree of automatization, is particularly suitable for the mass production of parts. And it can be used as assembly line with several such equipment.

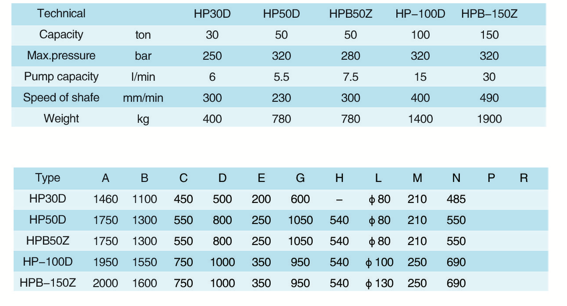

Model | units | HP-30 | HP-50 | HP-63 | HP-100 | HP-150 |
capacity | kn | 300 | 500 | 630 | 1000 | 1500 |
pressure | Mpa | 25 | 25 | 30 | 30 | 30 |
travel | mm | 200+270 | 220+405 | 220+405 | 250+405 | 250+405 |
Table size | mm | 300*400 | 480*360 | 400*500 | 440*980 | 440*980 |
dimension | mm | 1160*550*1600 | 1500*650*1950 | 1500*650*1950 | 1730*730*2250 | 1730*730*2250 |
weight | kg | 420 | 980 | 1020 | 1220 | 1350 |
