Hole Inspection SRV085 Innerwall 360° Degree Inner View Megapixel FA Lenses 1/2.5" Co-axial Object Diameter 0.78mm~5mm Height 0.4~5mm Camera Optics Lens For Tube Cap Container Tiny Hole
US$ 1 - 10000
/ Piece
1 Piece(Min. Order)
- Shanghai
- T/T PayPal
- 3 days
You May Like
-
Top Suggest Pericentric China Top 1 Sales 1/2”360° Degree Outer View Top + Side Inspection Same Time Outwall Surface Multi-angle Imaging FA Lenses Automation Round View Industrial Inspection Camera Lens
-
Hangzhou Top Suggest Pericentric China Top 1 Sales 1/2”360° Degree Outer View Top + Side Inspection Same Time Outwall Surface Multi-angle Imaging FA Lenses Automation Round View Industrial Inspection Camera Lens
-
SRV3006 Inner View Wall 360° Degree Lens >1/3" Built-in Coaxial Light Inner Hole Barrel Surface Inspection FA Lenses Round View Imaging Camera Optics High Resolution Compact Object Lens For Pharmacy Cosmetic Alcohol
-
Game Changer IPRAS ( Intellegient Passive Random Focus System ) 35mm 1.2" 25Mpixel C Mount Autofocus With Motorized & Algorithm Support for Vision Inspection
-
Global Advanced Game Changer IPRAS ( Intellegient Passive Random Focus System ) 35mm 1.2" 25Mpixel C Mount Autofocus With Motorized & Algorithm Support for Vision Inspection
-
China Computer Vision IPRAS ( Intellegient Passive Random Focus System ) 35mm 1.2" 25Mpixel C Mount Autofocus With Motorized & Algorithm Support for Vision Inspection
Product Details
| Brand Name | Soyo | Place of Origin | China | |
| Model Number | SRV085 |
Product Description
Homepage:
/products_detail.asp?id=1734&cataid=224&Cataupper=119&list=27
Whatsapp: 008618949838193
Wechat/Skype: soyocctv
E-mail: sales@soyocctv.com
SRV085 Innerwall 360° Degree Inner View Megapixel FA Lenses 1/2.5" Co-axial Object Diameter 0.78mm~5mm Height 0.4~5mm Camera Optics Lens For Tube Cap Container Tiny Hole
Download ： SRV085 ( Leadtime 3-5 Working Days )
* 360°inner barrel inspection 360
* High resolution & compact size
* Inspect small size object at wide sight
* Application for tube, auto, container, bottle cap inside inspection
Model | 1/2.5" | |
Resolution | Φ3.6 | |

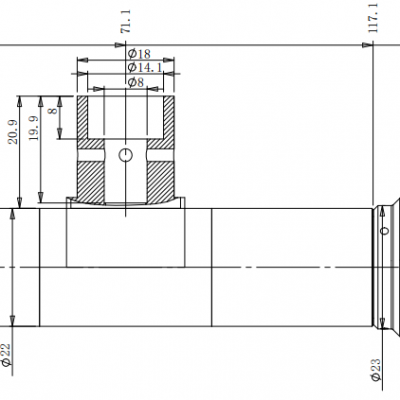

Dimension | Φ26*147.2mm | |
Mount | C | |
Diameter (mm) | Height (mm) | |
0.78 | 0.4 | 10 |
1 | 0.5 | 10.1 |
1.5 | 1 | 10.5 |
2 | 2 | 11 |
2.5 | 2.5 | 11.3 |
3 | 3 | 11.8 |
3.5 | 3.5 | 12 |
4 | 4 | 12.5 |
4.5 | 4.5 | 13 |
5 | 5 | 13.3 |
