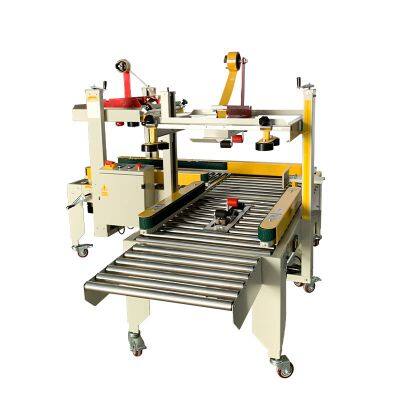

Tearubber Paper Sealing Machine Box Packing Equipment

〖brief introduction 〗

 Box sealing machine is mainly suitable for carton sealing packaging, box sealing machine uses tape to seal the carton, economic and fast, easy to adjust, can complete the automatic sealing action, such as the use of printing tape, but also can improve the product image. The sealing mode can be divided into: up and down drive, left and right drive, side, corner, etc., generally using transparent tape and kraft paper materials.

〖product characteristics 〗

〓 With positioning universal wheel, can be fixed in one place without moving, but also according to the need of sliding box sealing machine.

〓 According to the carton specifications, you can manually adjust the width and height, and the operation is easy and convenient.

〓 Stainless steel drum design, smooth delivery, good bearing capacity.

〓 Smooth operation, can be used for a long time, not easy to damage, long service life.

〓 Humanized independent switch design, use more worry.

〓 High quality movement kit, so that the tape more fit to the surface of the carton, so that the sealing is neat and the failure rate is low.

〖machine parameters 〗

〔〔Automatic lid sealing machine——HS-FX5050Z〕〕

Power supply voltage: 220V, 50Hz

Power: 400W

Length range of box closure: 200-600mm

Range of box sealing width: 130-500mm

Range of box sealing height: 150-500mm

Seal speed: 18m / min

Width of box sealing tape: 48mm, 60mm

Overall dimension: L2680 * W900 * H (1415-1615) mm

Transmission mode: the left and right conveyor belt transmission

〔〔Automatic box sealing machine——HS-FX5050G〕〕

Power supply: 220V / 50Hz

Power: 180W

Drive mode: left and right drive

Delivery speed: 18m / min

Seal width: 80-500mm

Seal height: 90-500mm

Applicable tape width: within 50mm

Dimensions: L1860 * W980 * H1690mm

〔〔E-commerce box sealing machine——HS-FX4030-A〕〕

Power supply voltage: 220V, 50Hz

Applicable tape type: PVC, BOPP

Drive mode: left and right drive

Seal length range: 130mm-unlimited

Seal width range: 80-300mm

Seal height range: 90-400mm

Applicable width of the adhesive tape: 30-50mm

The reserved length of the tape on both sides: within 6cm

Machine size: L1520 * W630 * H1390mm

〔〔Automatic box sealing machine——HS-FX5050〕〕

Power supply voltage: 220V, 50Hz

Seal length range: 130mm-unlimited

Width range of enclosure: 110-500mm

Range of box sealing height: 130-500mm

Applicable tape width: within 7cm

The reserved length of the tape on both sides: 7cm

Drive mode: left and right drive

Machine size: L1800 * W820 * H1540mm

Applicable tape type: PVC, BOPP

〔〔Automatic box sealing machine——HS-FX6050〕〕

Power supply voltage: 220V, 50Hz

Seal length range: 130mm-unlimited

Width range of enclosure: 180-500mm

Range of box sealing height: 140-600mm

Applicable width of the adhesive tape: 45-60mm

The reserved length of the tape on both sides: 7cm

Drive mode: up and down drive

Machine size: L1760 * W820 * H1640mm

Applicable tape type: PVC, BOPP

〔〔Aircraft box sealing machine——HS-FX4030F〕〕

Power supply voltage: 220V, 50Hz

Seal length range: 130mm-unlimited

Seal width range: 80-300mm

Seal height range: 40-400mm

Applicable tape width: 36-48mm

The reserved length of the tape on both sides: 6cm

Drive mode: left and right drive

Machine size: L2000 * W600 * H1250mm

Applicable tape type: PVC, BOPP
