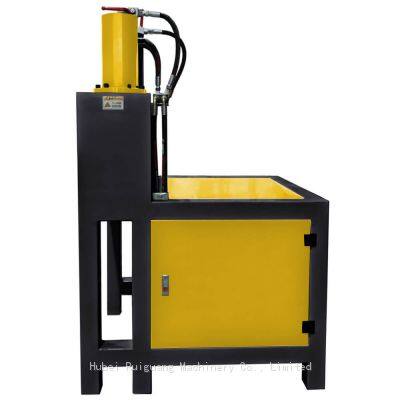

Single Workstation Pipe Punching Machine

Single Workstation Pipe Punching Machine is a single-station multi-functional hydraulic punching machine. Changing different dies can realize pipe hole punching, pipe end notching, pipe end pressing, hydraulic cutting, and other functions. This model is a relatively economical solution. The operator manually inserts the pipe into the mold, depresses the footswitch, and the machine will complete a working cycle. The operator can replace the mold according to the actual production needs and truly realize the functions of punching, end notching, pipe end pressing, hydraulic cutting, etc.

• CE Certificate:  YES

• Control:  Electric

• Capacity:  45 holes/min

• Accuracy:  ±0.30mm

• Cylinder diameter:  63mm, 80mm, 100mm, 125mm, 140mm, 180mm, 220mm

• Max. punching press:  According to pipe material, pipe thickness, hole size, etc.

• Workstation quantity:  As Per Requirement

• Punching molds quantity:  As Per Requirement

• Driven power:  Hydraulic

• Voltage:  As Per Requirement

• Available materials:  Stainless steel tube, Mild Steel pipe, Iron pipe, Aluminum profile, etc.

1. Single Workstation Punching Machine works to punch holes for aluminum ladders profiles, steel guardrail, zinc steel fence, iron guard fence, aluminum alloy shelf bracket, handrail, balustrade, railing, banisters.

2. Available for different materials, including aluminum profile, stainless steel tube, mild steel pipe, iron pipe, copper tube, etc.

3. Available for various shapes of holes punching, including square hole, rectangular hole, D shape hole, triangular hole, oval hole, waist circular hole, prismatic hole, etc.

4 workstations punching machine is also available here. 4 Workstations Pipe Hole Punching Machine

Single Workstation Pipe Punching Machine adopts with different punching molds designing which integrated one. Reasonable design punch and die set, to prevent scratch on the pipe surface. Gantry milling process the machine punching molds base to ensure high precision performance. There is an auto cooling system in hydraulic station. This machinery is an electric hole punching machine available for the most convenient operation and economic consideration.

According to customers’ needs and requirement, different customized punching molds is workable for different pipe notch and hole punching, end pressing, pipe cutting, end notching purposes. This machine adopts a powerful hydraulic cylinder with 63mm, 80mm, 100mm, 125mm, 140mm, 180mm, 220mm cylinder diameter.

• One hydraulic cylinder, will adopt several punches and die set as per requirement.

• No scratch on the surface of metal tube and pipe, reasonable designing punch and die set to preventing scratch, auto wiping system removes metal filings.

• High precision. Gantry milling process the machine punching molds base to ensure high precision performance. High-quality guides rail and transmits gear.

• Available for the different distances of holes punching.

• Hydraulic-driven, step-less pressure regulation.

• One set of punching machines will workable for different shapes of holes punching, by replacing customized punch and die set.

• Manual feed for easy maintenance and cheap punching machine consideration.

• Durable hydraulic cylinder, best quality hydraulic hose.

• The punching molds are made by SKD11 with a temper.

• 24 months warranty for punching machine, 6 months for punching molds.
