Make Pillow Shape Briquette

FOB Price

US$ 3500 - 4000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Shisheng Machinery	Place of Origin	China
Model Number	XM430	Certification	ISO, CE
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	1 year
Dimension(LWH)	174018201890mm	Production Capacity	3-4t/h
Condition	New	Power(W)	15kw
Motor Type	AC Motor

Make Pillow Shape Briquette

Make Pillow Shape Briquette Introduction:

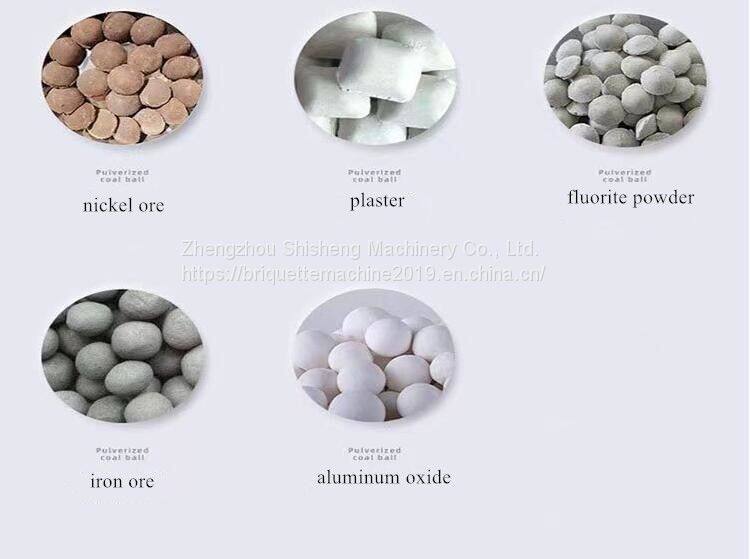

(1) Briquette making machine can mold a variety of mineral powder, metal powder, coal powder, coke powder and other materials.

(2) Due to forced squeeze by roller, the products have high density, high strength and high hardness.

(3) The press roller uses 65Mn rigid material is in good abrasion resistance, effectively prolong service life.

(1) Main motor transmit power to speed reducer.

(2) The coupling between reducer and rollers start to run.

(3) The exposed gear impel drive and driven shaft to rotate synchronize

(4) The pressure in two rollers increase gradually, from small to large.

(5) Pressure reaches top, the briquettes is molded successfully.

Make Pillow Shape Briquette Technical Parameter:

XM Series Coal Briquetting Machine

Model	Reducer	Ratio	Roller Size(mm)	Main Shaft Speed(r/min)	Matched Power(kw)	Capacity(t/h)	Pressure Type
XM290	ZQ350	1:31.5	290*200	12-14	5.5	0.9-1.0	Constant Pressure
XM360	ZQ350	1:31.5	360*250	12-14	7.5	1.5-2.0	Constant Pressure/Hydraulic Pressure
XM400	ZQ400	1:31.5	400*250	12-14	7.5	2.5-3.5
XM430	ZQ400	1:31.5	430*250	12-14	11	3.5-4.5
XM500	ZQ650	40.17	500*470	10-12	37	7.5-8.5
XM650	ZQ850	40.17	650*470	9-11	45	9-10
XM750	ZQ1000	40.17	750*570	9-11	90	13-14
XM850	ZQ1250	50	850*570	8-10	110	15-17
Remarks: Above capacity is based on material specific gravity 0.8, briquette size: φ50*33mm
Roller material is 65Mn, high chrome alloy and 9Cr2Mo
According to different material adjust machine parameter to meet customer production

KF Series Mineral Powder Briquetting Machine

Model	Reducer	Ratio	Roller Size	Main Shaft Speed(r/min)	Matched Power(kw)	Capacity(t/h)	Pressure Type
KF500-371-280	ZQ500	40.17	370*280	8-10	11	6.5-7.5	Constant Pressure/Hydraulic Pressure
KF650-500-300	ZQ650	40.17	500*300	8-10	37	8.5-9.5
KF850-650-300	ZQ850	40.17	650*300	8-10	55	10.5-11.5
KF1250-750-350	ZS1250	50	750*350	7-9	110	13.5-14.0
KF1450-850-350	ZS1450	50	850*350	7-9	132	15.0-16.0
KF560-1000-350	ZSY560	50	1000*350	7-9	150	17.0-20.0
Remarks: Above Capacity is based on material specific gravity 2, briquette size:φ50*33mm
Roller material is 65Mn, high chrome alloy and 9Cr2Mo.
According to different material adjust machine parameter to mmet customer production
