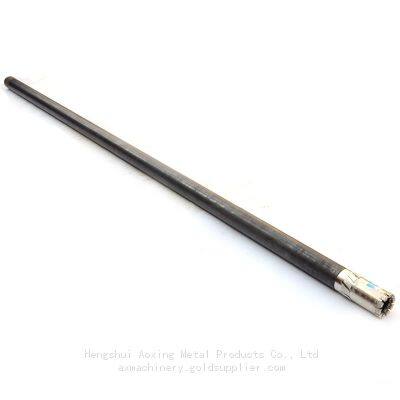

Double Tube Core Barrel for Core Drilling
Negotiable
/ Pair
1 Pair(Min.Order)
- tianjn
- T/T
- 3 days
You May Like
Product Details
| Brand Name | AOXING | Place of Origin | China | |
| Model Number | T2type | Material | Alloy | |
| Type | Union | Shape | Equal | |
| Technics | Forged | Connection | Female | |
| Head Code | Other |
Product Description
Product Description
The T2 series core barrels are suitable for coring in all formation types. The barrel is designed to be used with core bits with a relatively thin kerf to maximize the rate of penetration.
The inner and outer tubes are manufactured to our own specification from cold drawn tube of a very high tensile strength and straightness. The head is manufactured from heat treated alloy steel to ensure a long life.
T2 barrels can also be used with plastic "Coreliner" tubes with an undersize bit and corelifter, to obtain an instantly "packaged" core.
Size
The inner and outer tubes are manufactured to our own specification from cold drawn tube of a very high tensile strength and straightness. The head is manufactured from heat treated alloy steel to ensure a long life.
T2 barrels can also be used with plastic "Coreliner" tubes with an undersize bit and corelifter, to obtain an instantly "packaged" core.
Size
| Core Barrel Size: |
| Wireline series: AQ, BQ, NQ, HQ, PQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76 |
| T2 series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101 |
| TT series: TT 46, TT 56 |
| T6 series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146 |
| T6S series: T6S 76, T6S 86, T6S 116, T6S 131, T6S 146 |
| B series: B46, B56, B66, B76, B86, B101, B116, B131, B146 |
| MLC series: NMLC, HMLC |
| LTK series: LTK48, LTK60 |
| WF series: HWF, PWF, SWF, UWF, ZWF |
| WT series: RWT, EWT, AWT, BWT, NWT, HWT (Single Tube, Double Tube) |
| WG series: EWG, AWG, BWG, NWG, HWG (Single Tube, Double Tube) |
| WM series: EWM, AWM, BWM, NWM, HWM |
| Other sizes: AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, M101 |
