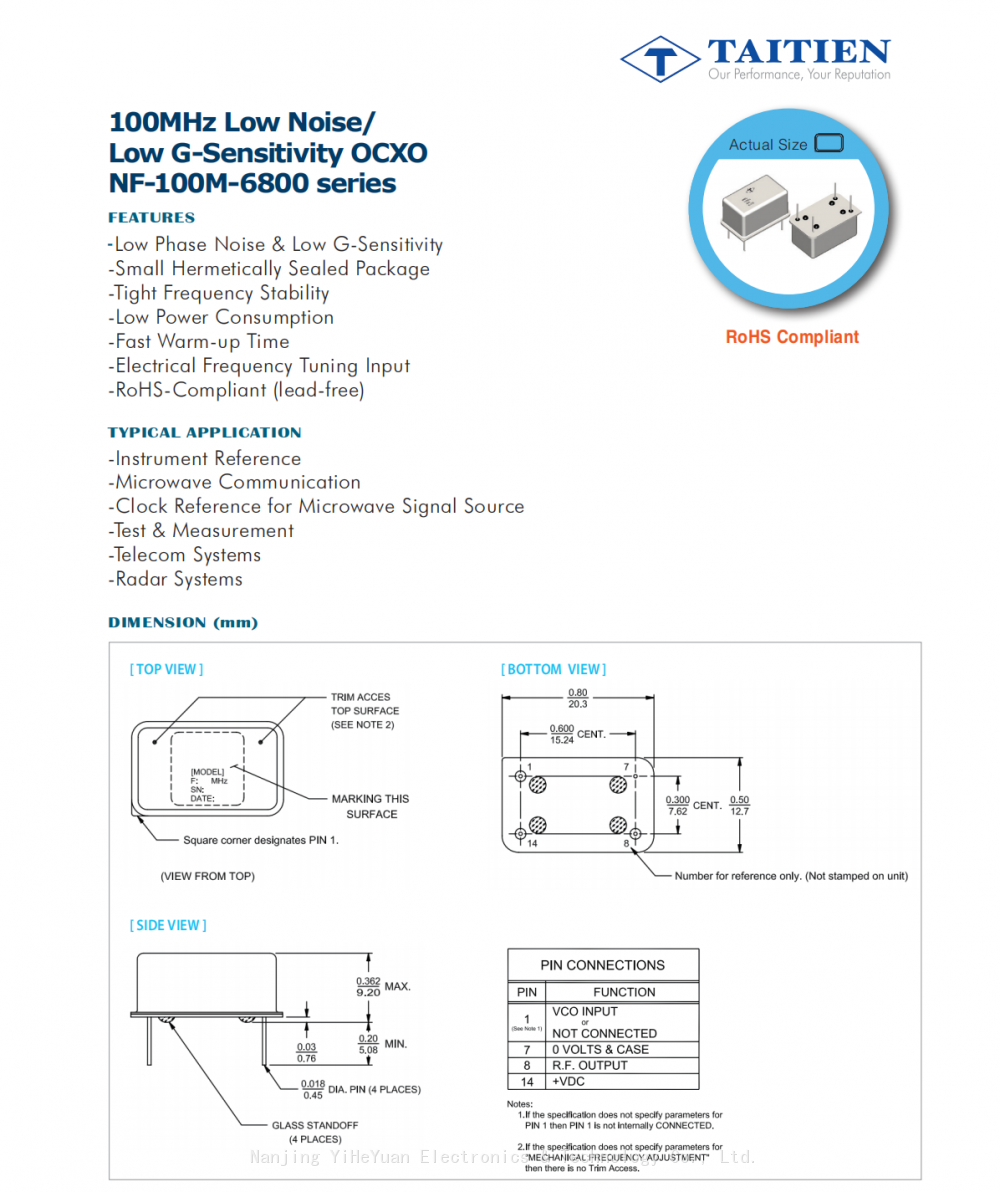

100MHz Low Noise/ Low G-Sensitivity OCXO NF-100M-6800 Series
Negotiable
/ Piece
1 Piece(Min. Order)
- Nanjing
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
You May Like
-
TX-D Type 32.768KHz 3.2 x 2.5 mm SMD CMOS Temperature Compensated Crystal Oscillator
-
TP Type High Precision and Low G-Sensitivity 3.2 x 2.5 mm SMD Voltage Controlled TCXO
-
VN-K Type High Frequency & Ultra Low Noise 2.5 x 2.0 mm Differential Output VCXO
-
VM-K Type High Frequency & Ultra Low Noise 3.2 x 2.5 mm Differential Output VCXO
-
OB-U Type Ultra Low Phase Noise 2.5 x 2.0 mm SMD Differential Output Crystal Oscillator
-
TL Type High Precision and High Temperature 5.0 x 3.2 mm SMD Voltage Controlled Temperature Compensated Crystal Oscillator
Product Details
| Brand Name | TAITIEN | Place of Origin | China | |
| Model Number | NF-100M-6800 | Operating Temperature | -20℃~ +70℃ | |
| Package Type | Throught Hole | Dimensions | 20.3×12.7mm | |
| Supply Voltage | 5V | Frequency Tolerance | ±50, ±100ppb | |
| Nominal Frequency | 100MHz |
Product Description
