DECK CRANE FUKUSHIMA KH 3026 SLEWING RING Slew Bearing
- T/T Credit Card
You May Like
-
Rotating Manipulator Tower Crane Turntable Cross Roller Bearing Slewing Side High Load 011.10.180 Tower Crane Slewing Bearing
-
KYHGB 01 Series Single Row Ball Type Turntable Bearing Slewing Ring Bearing for Lift
-
Customized Rotary Table Crane Slewing Ring Bearing 230.20.0400.013
-
Cheap Price Swing Circle CAT325 Excavator Parts Slewing Bearing Slewing Ring Bearings
-
112.32.1800 Large Scale Custom High Precision Cross Roller Slewing Bearing Swing Bearing Slew Ring
-
Rock Drilling Machinery Large Ball Diameter Slewing Bearing
Product Description
1. Integration of factories and trade to ensures
that every working procedure of the product
can be strictly controlled.
2. Competitive quality and low price.
3. Advanced technology, professional packaging,
fast delivery, and developed sea, land and air logistics.
4. Timely after-sales service ensures that users
have a great experience.
Type | • Single row four point contact ball slewing bearing • Single row crossed cylindrical roller slewing bearings • Double row ball slewing bearings •Double row Roller/ball combination slewing bearing •Three-Row Roller Slew Ring Bearing |
Rollng elements | Steel ball / Cylinder Roller |
Rollng elements Material | GCr5/GCr15SiMn/Customized |
Bearing Material | 50Mn/42CrMo/42CrMo4V /Customized |
Cage Material | Nylon/ steel /copper |
Structure | taper pin , Mounting holes,Inner ring ,grease fitting,load plug, seals , roller ,spacer balls or separators |
Outer diameter | 50-10000mm |
Bore size | 50-10000mm |
Mounting hole | Through hole/Tapped hole |
Raceway hardness | 55-62HRC |
Inner and outer ring modulation hardness | 229-269HB/Customized |
Gear type | No gear ,Internal gear , External gear. |
Embellish grease | EP2 lithium lubricating grease |
Certificate | ABS.BV,DNV,ISO9001,GL |
Application area | Ladle turret,Stacker crane,Bucket wheel machine,Solar heliostat Tracking System,port crane, Cabling machine,tower crane , offshore platform,ferris wheel, Palletizing robot,Rotary metallurgical furnace,can packing machine,Wind blade transporter,shield tunneling machine,tube push bench,excavator |
Brand Name | HGB |
Place of Origin | Luoyang Henan |
Warranty | 12 months |
Payment term | T/T is our first choice |
Packing details | 1,Filling with anti-rust oil 2.Corved with Plastic paper 3.Corved with kraft paper 4.Corved with Blue tie 5.Put in wooden box |

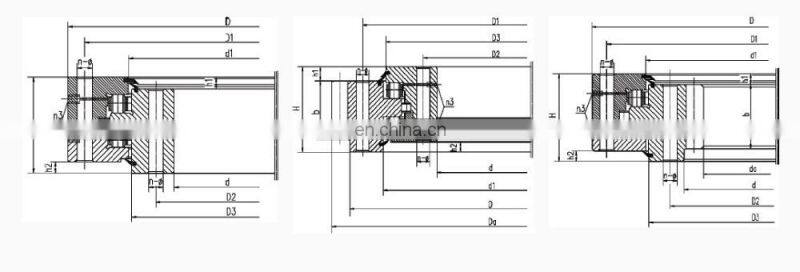

Three row roller slewing bearing (13 series).
Structural characteristics, performance and scope of application
Three row roller slewing bearing have three seat rings, the upper and lower raceways and the radial raceways are separated, so that the load of each row of roller can be determined accurately. Being able to bear all kinds of loads at the same time, it is the largest one of the four structural products with large axial and radial dimensions and firm structure. It is especially suitable for heavy machinery requiring larger diameter, such as bucket wheel stacker and reclaimer, wheel crane, marine crane, port crane, ladle turret and large tonnage truck crane. Heavy machinery and so on.
Bearing Parts
Steel ball/Roller:carbon-chromium bearing steel GCr15SiMn or GCr15 for rolling Material
Cage: include integral cage, segment cage and spacer-type cage. We use 20# steel or copper for integral and segment cages, PA 1010 resin or QA110-3-105 albronze for spacer-type cages.
Seals:uses NBR or VITON, few felted wool.
Single row cross roller slewing bearing
It is composed of two or three rings. It has compact structure, light weight, high manufacturing accuracy, small assembly gap and high requirement for installation accuracy. Rollers are 1:1 cross-arranged. It can bear axial force, overturning moment and large radial force at the same time. It is widely used in lifting transportation, construction machinery
Three row roller slewing bearing
It have three seat rings, the upper and lower raceways and the radial raceways are separated, so that the load of each row of roller can be determined accurately. Being able to bear all kinds of loads at the same time, it is the largest one of the four structural products with large axle and radial dimensions and firm structure. It is especially suitable for heavy machinery requiring larger diameter, such as bucket wheel stacker and reclaimer, wheel crane, marine crane, port crane, ladle turret and large tonnage truck crane. Heavy machinery and so on.
Single row four point contact ball slewing bearing.
It is composed of two seat rings. It has compact structure, light weight, and four-point contact between steel ball and arc raceway. It can bear axial force, radial force and overturning moment at the same time. The construction machinery of rotary conveyor, welding manipulator, small and medium-sized crane and excavator can be selected.

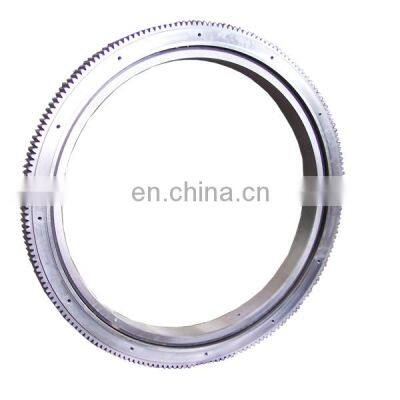

Internal gear ring
External gear ring
No gear ring
We are located in the beautiful Peony Flower City, known as the "Bearing Town" of China's thirteenth ancient capital - Luoyang. Is a professional design, research and development, production, sales and service in one of the slewing bearing integrated entity enterprise. Relying on the unique advantages of Luoyang old brand bearing processing base, the company has gathered a group of experienced bearing designers and skilled first-line production workers, together with advanced production and processing equipment and testing tools, to ensure the quality of products and related services from the root..
Wide production workshop and strong production team as a support,ensure the products can be produced by required quality and quantity. andThereby increase the customer benefits.
The above is our production equipment with advanced technology , the stable and longevity bearing produce from these equipment .
1.Q: Are you trading company or manufacturer ?
A: We are professional slewing bearing manufacturer with 20 years' experience.
2.Q: How long is your delivery time?
A: Generally it is 4-5 days if the goods are in stock. or it is 45 days if the goods are not in
stock, Also it is according to quantity.
3.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample, it is extra.
4.Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
5.Q: Can you provide special customization according to the working conditions?
A: Sure, we can design and produce the slewing bearings for different working conditions.
6.Q: How about your guarantee?
A: We provide lifelong after-sales technical service.
