China Factory Manufacturing High Quality High Accuracy Small Digital Temperature and Pressure Integral Sensor
Negotiable
/ Piece
10 Pieces(Min. Order)
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal Cash
- 10 days
You May Like
-
CHNTEK QTB251 Sputtering Thin Film Pressure Sensitive Element
-
CHNTEK QTB351 Sputtering Thin Film Pressure Sensitive Element
-
CHNTEK QTB351-HT High-temperature Resistant Sputtering Thin Film Pressure Sensitive Element
-
CHNTEK QTB251-B Sputtering Thin Film Pressure Sensitive Element
-
QTQ001 Universal Pressure Sensor
-
QTQ002 Universal Pressure Sensor
Product Details
| Brand Name | CHNTEK | Place of Origin | China | |
| Model Number | QTQ302 |
Product Description
| Measuring range(MPa) | 1-250 |
| Burst pressure | 300% |
| Overload pressure | 1000%~4000%F.S (the max is ≤400MPa) |
| Accuracy | ±0.5%F.S |
| Long-term stability | ±0.2%F.S/year |
| Output | 4-20mA, 0.5-4.5V, 0.5-4.5V(ratiometric), 0-10V，0-5V |
| Power Supply | 8-32VDC |

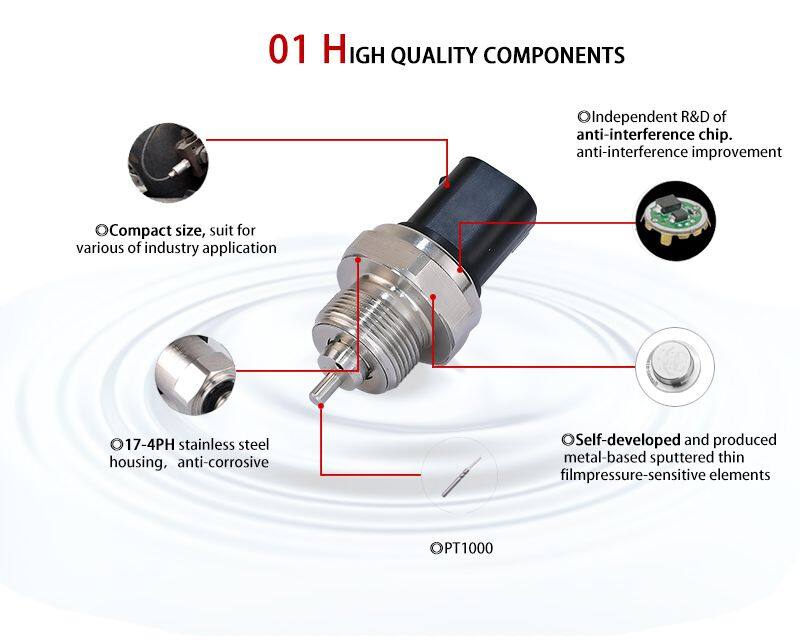

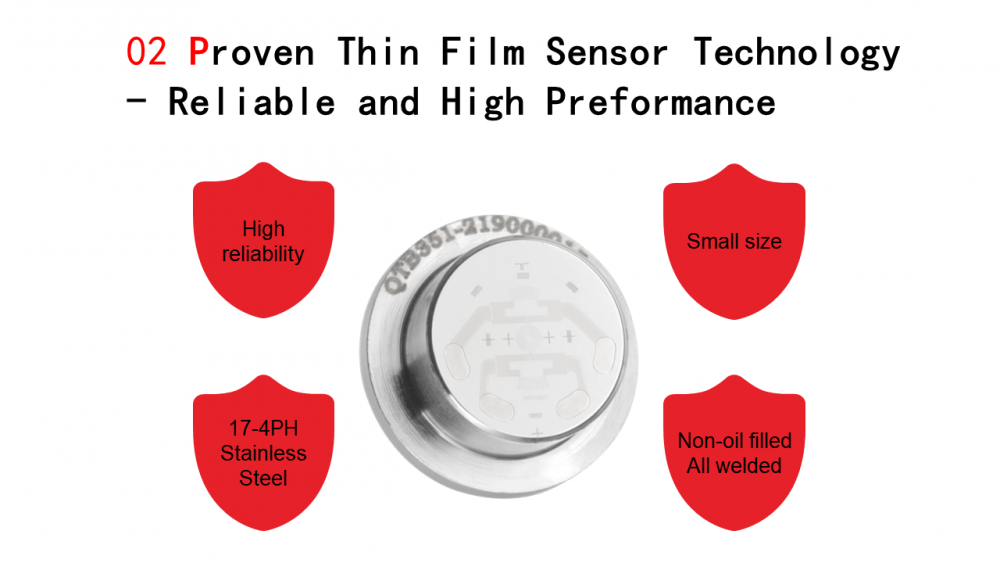

| Sensitive component material | 17-4PH |

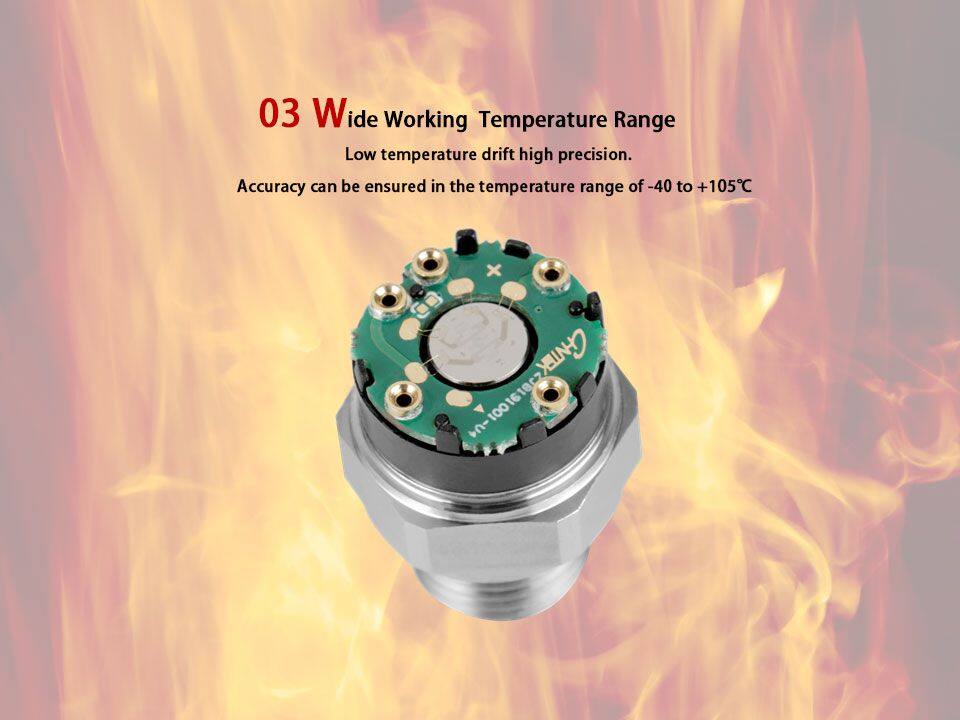

| Ambient temperature range | -40~+105℃ |
| Pressure port | G2=G1/4-19 M3=M12*1.5 G1=G1/8 G5=G1/4-19A M6=M20*1.5 M1=M8*1.25 G4=G1/2 M4=M14*1.5 N2=NPT1/4 G3=G3/8 |
