Home > Products > Briquette Machine > Coal Ball Forming Machine
Coal Ball Forming Machine
- Qingdao
 - T/T L/C
 - 20 days

You May Like
Product Details
| Brand Name | Shisheng Machinery | Place of Origin | China | |
| Model Number | KF650-500-300 | Certification | ISO, CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 year | |
| Dimension(L*W*H) | 1740*1650*1760mm | Production Capacity | 6-8t/h | |
| Condition | New | Power(W) | 30kw | |
| Motor Type | AC Motor |
Product Description
Coal Ball Forming Machine
Coal Ball Forming Machine Introduction:
The Coal Ball Forming Machine is also called: strong ball pressing machine, mineral powder pressing ball machine, roller pressing ball machine, goose egg forming machine and so on. The briquetting machine is mainly used for making balls of non-ferrous and ferrous metal ore powder, which can be directly smelted in the furnace to increase the added value. All metallurgical industry waste and auxiliary materials that need to be put into the furnace need a ball press to complete. For example: dust removal ash, pond mud, scale, steel slag, iron concentrate powder, aluminum ash powder, silicomanganese ore powder and so on. A ball press is a device that presses powdery materials into balls.
The Coal Ball Forming Machine is widely used, and can briquette, granulate or briquette the following materials, such as aluminum chips, activated carbon, alumina, bauxite, caustic soda, charcoal, clay, coke chips, coal, cryolite, Fertilizers, plastics, limestone, pigments, urea, potash...etc. Its purpose is to reduce dust, control bulk density, recycle, improve transportation characteristics, etc. The capacity design is mainly used for dry powder pressing into pellets in the Pidgeon process of magnesium smelting.
Coal Ball Forming Machine Technical Parameter:
XM Series Coal Briquetting Machine
| Model | Reducer | Ratio | Roller Size(mm) | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) | Pressure Type |
| XM290 | ZQ350 | 1:31.5 | 290*200 | 12-14 | 5.5 | 0.9-1.0 | Constant Pressure |
| XM360 | ZQ350 | 1:31.5 | 360*250 | 12-14 | 7.5 | 1.5-2.0 | Constant Pressure/Hydraulic Pressure |
| XM400 | ZQ400 | 1:31.5 | 400*250 | 12-14 | 7.5 | 2.5-3.5 | |
| XM430 | ZQ400 | 1:31.5 | 430*250 | 12-14 | 11 | 3.5-4.5 | |
| XM500 | ZQ650 | 40.17 | 500*470 | 10-12 | 37 | 7.5-8.5 | |
| XM650 | ZQ850 | 40.17 | 650*470 | 9-11 | 45 | 9-10 | |
| XM750 | ZQ1000 | 40.17 | 750*570 | 9-11 | 90 | 13-14 | |
| XM850 | ZQ1250 | 50 | 850*570 | 8-10 | 110 | 15-17 | |
| Remarks: Above capacity is based on material specific gravity 0.8, briquette size: φ50*33mm | |||||||

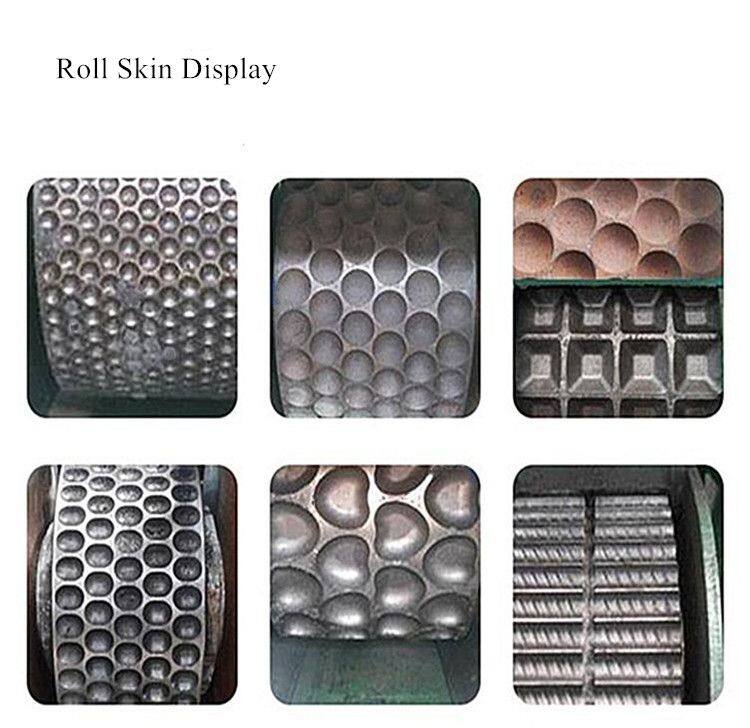

| Roller material is 65Mn, high chrome alloy and 9Cr2Mo | |||||||
| According to different material adjust machine parameter to meet customer production | |||||||
KF Series Mineral Powder Briquetting Machine
| Model | Reducer | Ratio | Roller Size | Main Shaft Speed(r/min) | Matched Power(kw) | Capacity(t/h) | Pressure Type |
| KF500-371-280 | ZQ500 | 40.17 | 370*280 | 8-10 | 11 | 6.5-7.5 | Constant Pressure/Hydraulic Pressure |
| KF650-500-300 | ZQ650 | 40.17 | 500*300 | 8-10 | 37 | 8.5-9.5 | |
| KF850-650-300 | ZQ850 | 40.17 | 650*300 | 8-10 | 55 | 10.5-11.5 | |
| KF1250-750-350 | ZS1250 | 50 | 750*350 | 7-9 | 110 | 13.5-14.0 | |
| KF1450-850-350 | ZS1450 | 50 | 850*350 | 7-9 | 132 | 15.0-16.0 | |
| KF560-1000-350 | ZSY560 | 50 | 1000*350 | 7-9 | 150 | 17.0-20.0 | |
| Remarks: Above Capacity is based on material specific gravity 2, briquette size:φ50*33mm | |||||||
| Roller material is 65Mn, high chrome alloy and 9Cr2Mo. | |||||||
| According to different material adjust machine parameter to mmet customer production | |||||||
YHG Series Dry Powder High Pressure Briquetting Machine
| Model | YHG-0.5 | YHG-1.5 | YHG-3.0 | YHG-5.0 | YHG-8.0 | YHG-10.0 |
| Roller Diameter(mm) | φ299 | φ367 | φ522 | φ738 | φ760 | φ858 |
| Roller Width(mm) | 180 | 183 | 196 | 210 | 225 | 300 |
| Capacity(t/h) | 0.5 | 1.2-1.4 | 2.5-3.0 | 4.5-5.5 | 7.5-8.5 | 8.0-9.5 |
| Main Reducer | ZQ650 | ZQ850 | ZS1250 | ZS1450 | ZS1650 | ZS1650 |
| Main Motor | 18.5 | 37 | 55 | 75 | 90-110 | 110-132 |
| Pre-pressure Motor(kw) | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 |
| Pre-pressure Reducer | WHC-125 | WHC-160 | WHC-200 | WHC-210 | WHC-210 | WHC-250 |
| Remarks: Above capacity is based on material specific gravity 1.3, briquette size: φ35*30*20mm | ||||||
| Roller material adopts 9Cr2Mo | ||||||
| Pre-pressure motor is speed motor | ||||||
