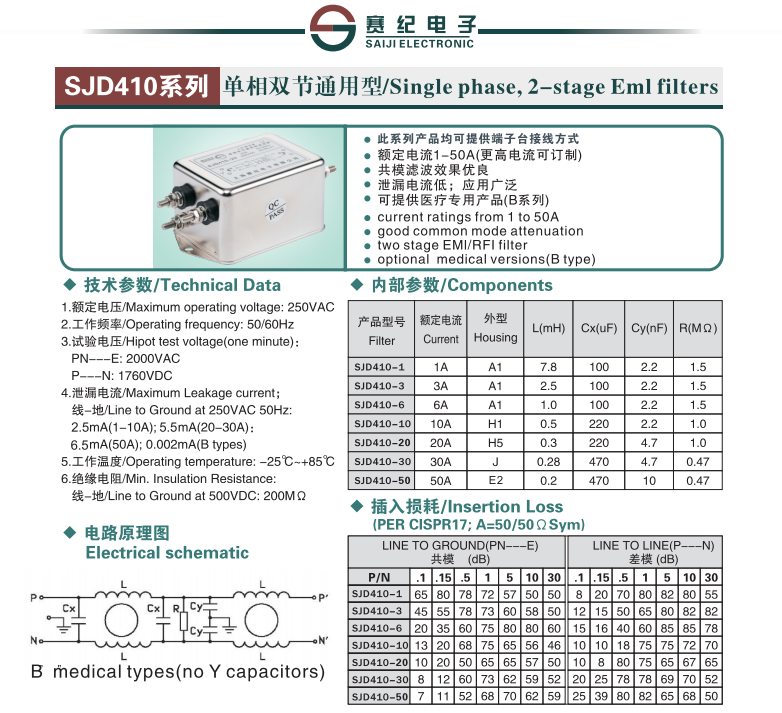

Saiji SJD210 410 710 High-performance Power Filter Single-phase AC 220V Harmonic Anti-interference DC

FOB Price

US$ 12 - 39 / Piece

1 Piece(Min. Order)

Port shanghai
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	上海賽紀(jì)電子有限公司	Place of Origin	China
Model Number	SJD410	Type	EMC Filter
Nominal Center Frequency	50/60Hz

Product Description

Product Introduction

(This series of products can all provide terminal block wiring methods)

Rated current: 1-300A optional

Optional medical device specific type (B-series)

Multiple connection methods such as leads, solder pads, bolts, and terminal blocks are available for selection

Can provide customized products

Features and advantages

--High performance AC filter with excellent common mode and differential mode filtering effects, effective filtering range of 5KHz-30MHz

--The SJD410 420 430 series adopts a two-stage common mode filtering design, and the overall filtering effect is basically the same, with slight differences only based on different currents

--Products with high working voltage of 380VAC or above are optional

application area

Electronic and electrical equipment, consumer electronics, data communication equipment, office automation equipment, various power supply products, and other electronic devices with higher requirements for filtering
