Stationary Rock Breaker System for Underground or Opencast Grizzly Screen
- Qingdao
- T/T L/C Credit Card PayPal Cash
- 60 days
You May Like
Product Details
| Brand Name | YZH | Place of Origin | China | |
| Model Number | WHC860 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Condition | New |
Product Description
Stationary Rock Breaker System for Underground or Opencast Grizzly Screen

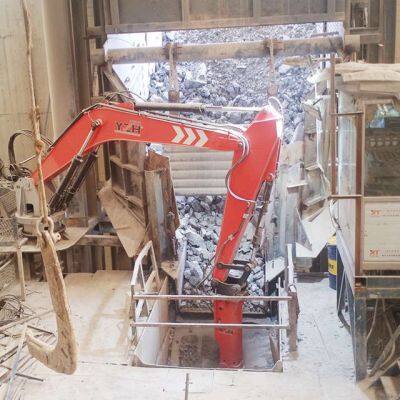

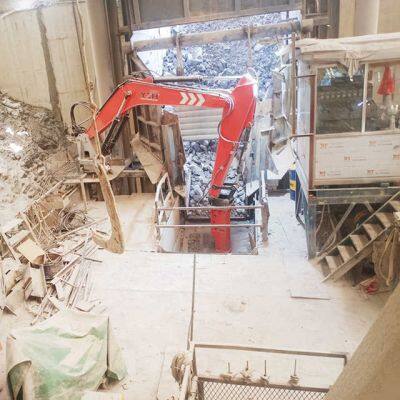

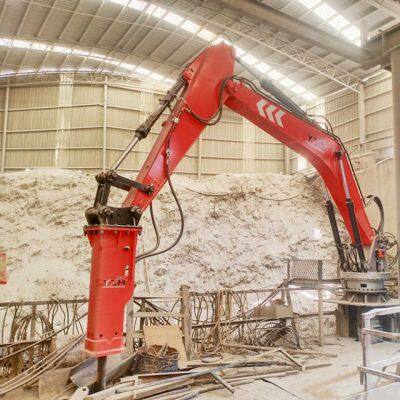

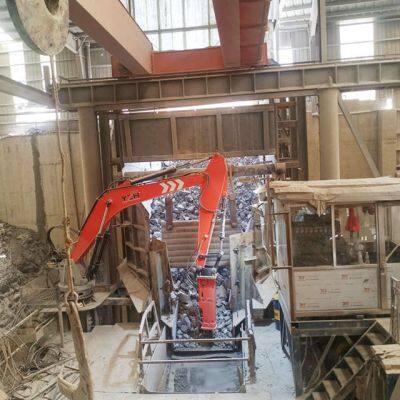

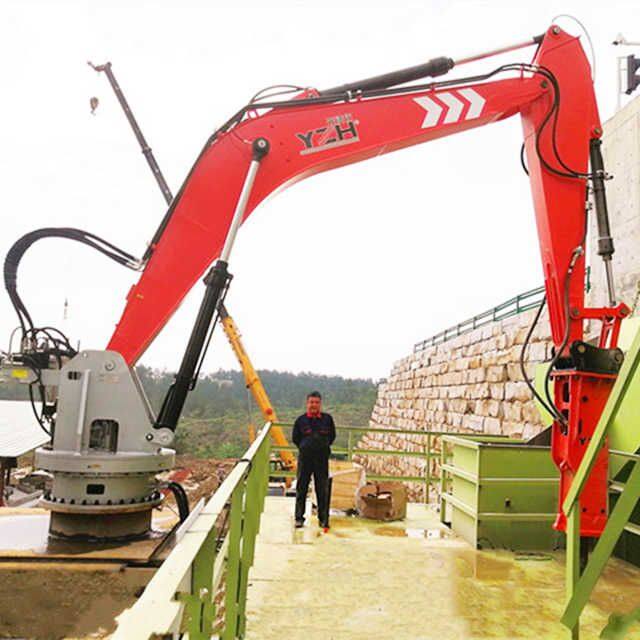

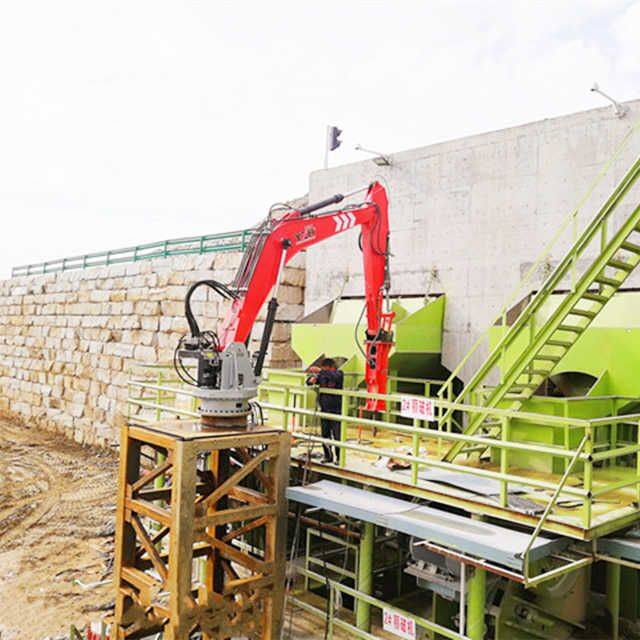

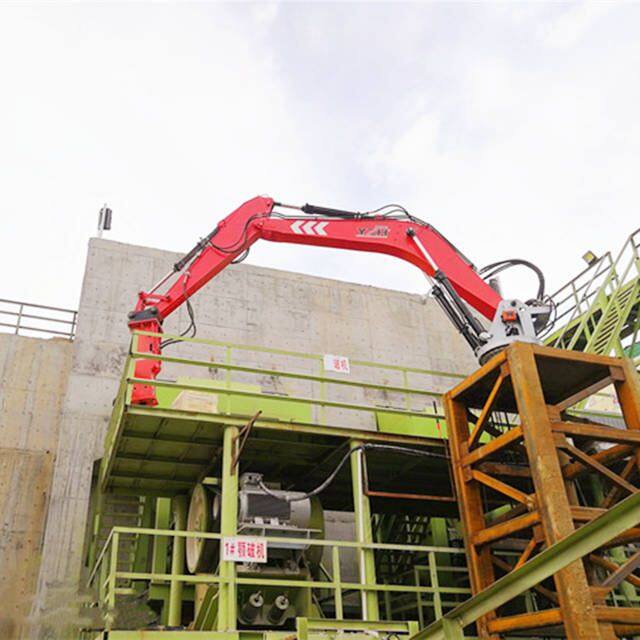

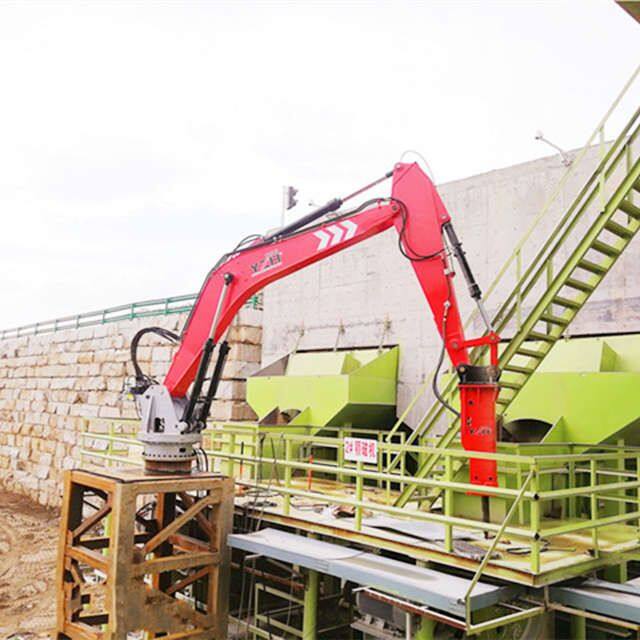

Stationary rock breaker system consists of pedestal boom, hydraulic hammer, hydraulic pressure station and control system. It can be applied to underground or open grizzly screen. Grizzly applications are extremely harsh by nature, which is a continuous primary crushing process. YZH's grizzly rock breaker system is designed with wide boom cross sections, extra large pins and reinforced high tensile steel plates. YZH rock breaker system is subject to high degrees of in-line and side raking, combined with various sizes and amounts of oversize. All designed to handle complex loading to the boom, whether it below or above ground.
| Model No. | Unit | WHC860 |
| Boom weight | kg | 8070 |
| Max. horizontal working radius | mm | 11000 |
| Max. vertical working radius | mm | 8665 |
| Min. vertical working radius | mm | 3000 |
| Max. working depth | mm | 7740 |
| Rotation | ° | 360 |
