PVC Soft Sheet Extrusion Line
You May Like
Product Description
GWELL is a PVC soft sheet extrusion line manufacturer, the extruder adopts digital display controller, or PLC control system, man-machine interface touch screen control panel.
Vertical integrated gearbox, large torque, high precision, and durable.
Bimetallic screw barrel; screw internal temperature controller.
The extruder bracket can be moved back and forth, which increases the convenience of control.
China PVC soft sheet extrusion line screw is designed with a special mixing function and high plasticizing capacity, combined with a static mixer imported from Europe, to ensure resin melting, uniform color, and increase extrusion output.

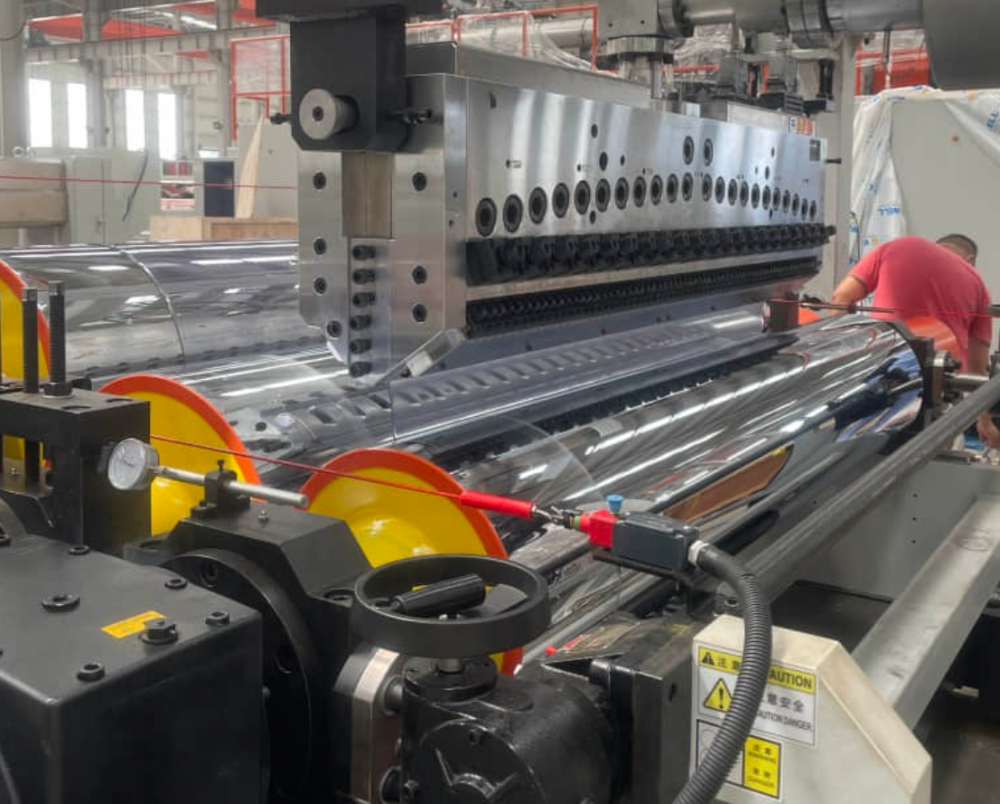

The T-shaped die adopts a special double-throttle design, which makes the thickness adjustment of the plate more accurate.
The temperature control adopts an SCR system, the temperature tolerance is ±1℃, which can precisely control the plasticizing process, plate thickness, flatness, and uniformity.
The embossing table can be raised and lowered freely. During operation, this will provide more options for thick and thin plates and improve product quality.
Board thickness control adopts two-way adjustment of the screw and pressing roller, which can precisely control the board thickness.
The length of the sheet is controlled by PLC, driven by a servo motor, and the size is accurate.
PVC soft sheet extrusion line electric control box: completely adopt high-grade high-quality accessories, space-saving design, and simple and convenient operation.
PVC Soft Sheet Extrusion Line Process Flows
Extruder —- Screen changer —– Melt pump —– T-die —— Calender —– Cooling bracket —– Haul-off—- Winder
