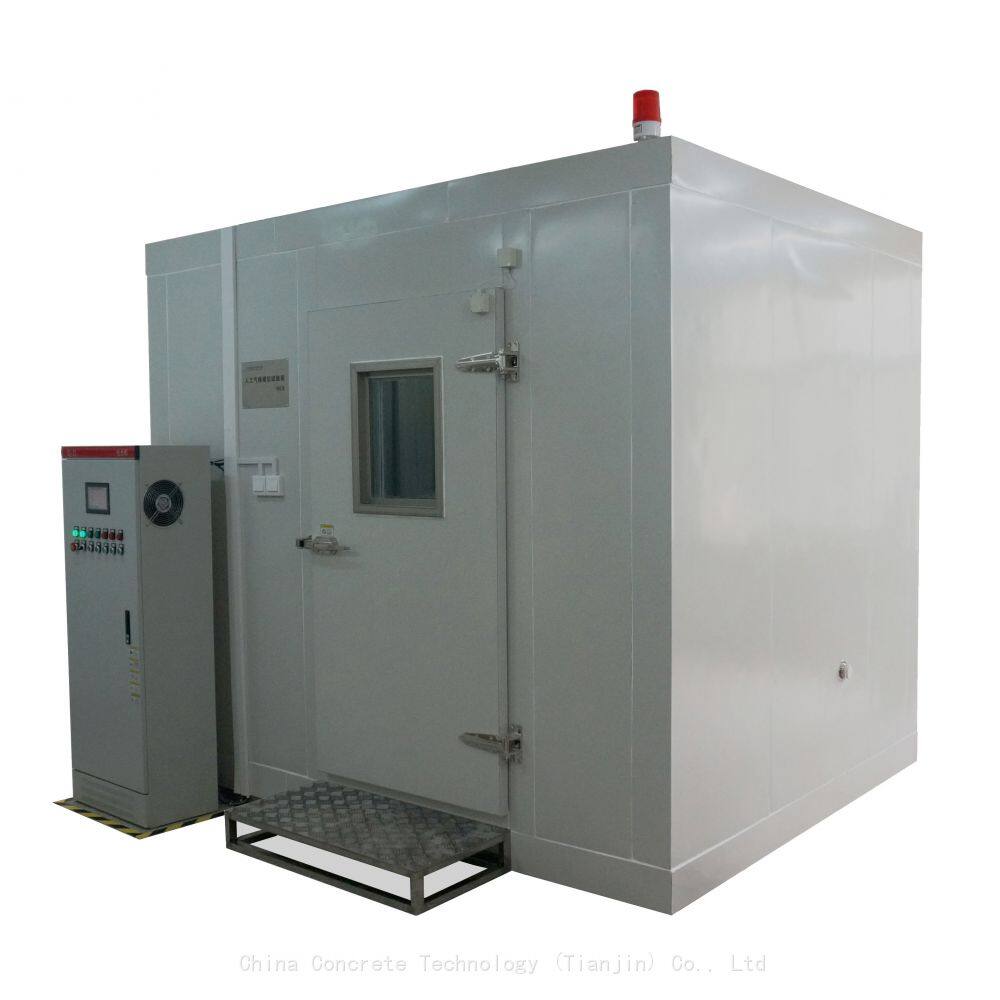

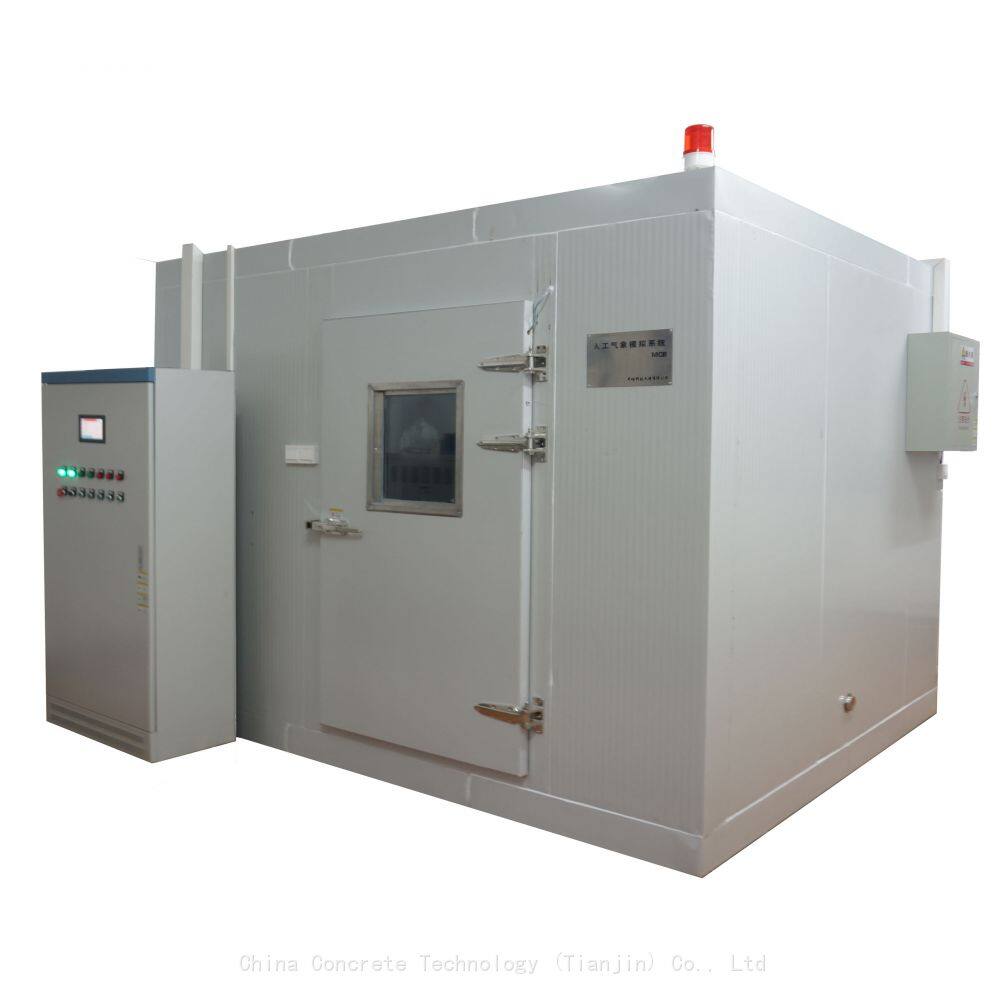

China Artificial Climate Simulation Test Box MCB Type

Product Introduction

The artificial climate simulation test chamber refers to simulating the impact of temperature, humidity, sunlight, rain, atmosphere and other environmental gases such as CO2 and SO2 on concrete materials and components within a certain range in the natural environment.This system utilizes multiple units to complete the functions of refrigeration, heating, dehumidification, and humidification; Using radiation lamps to simulate sunlight exposure; Arrange spray pipes and jet pipes in the laboratory to inject low concentrations of CO2 and SO2 gases for simulating acid rain test conditions.

technical parameter

1. Test volume: ＞ 7m3;

2. Temperature range: -30~50 ℃;

3. Humidity range: 40~95% RH;

4. Carbon dioxide concentration range: 0-30%;

5. Temperature accuracy: 0.5 ℃, stability: ＜ 1 ℃;

6. Humidity accuracy: 3% RH, stability:<2% RH;

7. CO2 accuracy: 0.2% vol, stability: 2%;

8. Radiation intensity: 0-500W/m2 adjustable;

9. The equipment has four modes of control, including normal, rain, light, and sulfur dioxide, which can simulate any climate change throughout the year;

10. ※ Light intensity simulation system: can automatically simulate changes in light intensity throughout the day;

11. Rain shower flow system: equipped with rain shower flow simulation mode, which can achieve automatic simulation testing of rainfall magnitude;

12. UV radiation aging system: After opening, it can simulate aging tests;

13. ※ Fresh air system: The box is equipped with an air circulation system, with adjustable wind speed and direction;

14. Customizable editing: 100 groups of programs can be programmed, with a maximum of 99 segments per group. The time, jump, loop, etc. can be freely set between programs;

15. The dynamic heating method using advanced technology does not cause local high temperatures inside the box, and the temperature fluctuation inside the box is less than 1 ℃;

16. The controller adopts touch screen control, which can achieve programming control of trigonometric function, rectangular and linear change modes with multiple parameters such as temperature and humidity, lighting, rain, wind speed, etc. It can also achieve constant value testing of related parameters;

17. With a curve interface, each parameter curve can be selected and displayed (cancelled) one by one. The time and data coordinates in the interface can be set within their own range for easy viewing;

18. ※ Double sulfur dioxide measurement method, when the concentration exceeds the set value, the light alarm will be activated and the clearing mode will be automatically activated to ensure the safety of the test;

19. ※ Intelligent dual compressor starting system, adaptive starting according to target temperature, maximizing energy savings;

20. Equipped with alarm protection and self troubleshooting recovery system, including alarm protection

1) Power phase sequence protection

2) High temperature protection inside the box

3) Water tank water shortage protection

4) Compressor over temperature protection

5) Compressor overpressure protection

6) Sulfur dioxide alarm protection

7) Power outage self start protection

21. During equipment acceptance, a metrological certificate issued by a provincial metrology institute is required.

Note: Temperature, size and other parameters can be customized according to specific customer needs.
