Production Switcher

                                                                                                       Production Switcher

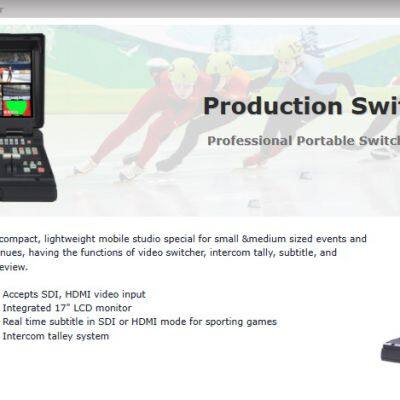

                                                                                               Professional Portable Switch System

           A compact, lightweight mobile studio special for small &medium sized events and venues, having the functions of video switcher,

    intercom tally, subtitle, and preview.

Accepts SDI, HDMI video input

Integrated 17" LCD monitor

Real time subtitle in SDI or HDMI mode for sporting games

Intercom talley system

KV-PS2800

Specification

Type KV-HS2850 KV-ATEM Pro 4K

Video System HD & SD HD & Ultra HD

Video Format 1080p 25/29/30/50/59.94/60Hz

1080i 50/59.94/60Hz

720p 50/59.94/60Hz

576i 50Hz

480i 59.94Hz 2160p 23.98/24/25/29.97/50/59.94Hz

1080p 23.98/24/25/29.97/50/59.94Hz

1080i 50/59.94Hz

720p 50/59.94Hz

Input Settings (XPT) All 12, repeatable All 12

Video Input 8 x SDI, 2 x HDMI 8 x 10-bit HD/UHD switchable, 2 channel embedded audio

PC Input Max 3 via HDMI None

Downstream Converter 3 x SDI On all 8 inputs

Video Output 3 x SDI assignable: PGM, PVW, AUX & Clean Out

1x HDMI assignable: PGM & multi-view 9 x 10-bit HD/UHD switchable

Audio Input 4 x Balanced XLR 2 x XLR, 1 x Microphone

Audio Output 2 x Balanced XLR 1 x Headphone

Audio Embedded Input up to 16 channels, Output 4 channels 2 x Input

Audio Delay Up to 8 frames None

Video / Audio switched synchronously Yes Supported

DSK 2, support Lumakey & Linear key (Key / Fill) 1 x Upstream Keyers (1 with Chroma/Linear/Luma key)

2 x Downstream Keyers

1 x Chroma Keyers

3 x Linear/Luma Keyers

Picture in Picture 2 None

LOGO 2 (or 1 logo + 1 clock) 1

Monitor 1 x 17.3" TFT LCD, 1920x1080 pix None

Intercom 8 channels (4 belt-packs incl.) Built in, uses aviation headset

Dimensions (W*D*H) 455 x 355 x 134 mm 423 x 302 x 120 mm

Weight 8.5 KG 4.2 KG

2017 March, FIFA World Cup qualifiers for Asia 2018

        FIFA World Cup qualifiers for Asia 2018The competition between China & Korea held in HeLong stadium, which is the most

important match for China team. Our scoring and variety of display equipment was used on this match. We are proud of showing a brilliant game to all the audience.

       Football Socring System

       Production Switcher

      Title Maker

      Video Slow Motion

      FIFA

2016 May, Huaxing Verterns Badminton Championship

Huaxing Verterns Badminton ChampionshipFollowing products was used in this case:

Production Switcher

Title Maker

Streaming Encoder

                 success cases：

2023 September, 2023 Equestrian Open and Tianjin Equestrian Club Joint Invitational Tournament

2023 Equestrian Open and Tianjin Equestrian Club Joint Invitational TournamentOur Equestrian Scoring System and Title Maker is successfully used in the match.

2023 July, 2023 Jiangsu Youth Equestrian Championships

2023 Jiangsu Youth Equestrian ChampionshipsOur Equestrian Scoring System and Title Maker is successfully used in the match.

2023 June, DESAFIO CHINA BY LA VUELTA BEIJING CHANGPING

                         DESAFIO CHINA BY LA VUELTA BEIJING CHANGPINGOur Title Maker is successfully used in the match.

2023 March, the 29th National Climbing Championships

                         the 29th National Climbing ChampionshipsOur Title Maker is successfully used in the match.

2023 February, X GAMES CHINA 2022

                          X GAMES CHINA 2022Our Title Maker is successfully used in the match.

2023 February, 2023 Chinese Table Tennis Team Durban World Table Tennis Championships Trials

2023 Chinese Table Tennis Team Durban World Table Tennis Championships Trials

                         Our Title Maker is successfully used in the match.

2022 November, the 17th Shanghai Games Wushu Sanda Competition

                         the 17th Shanghai Games Wushu Sanda CompetitionIn the 17th Shanghai Games, used our Wushu Sanda Scoring

                System, Video Arbitration System, Title Maker System and Live Video System.

17th Shanghai Games

2022 August, the 18th Beijing Children's Wushu Competition - Taekwondo

                        the 18th Beijing Children's Wushu Competition - TaekwondoOur Taekwondo Scoring System and Title Maker

             System is successfully used in the match.

2021 June, UA LET'S3 Basketball 3X3 Finals

                        Our Basketball Scoring System and Title Maker System has been used in this game.

2021 May, National Men's Ice Hockey Championships 2021

                        National Men's Ice Hockey Championships 2021The match uses our Title Maker system to overlay the game

             info and score onto the live stream.

2020 December, 2020 National Rugby League

                        uses our Rugby Scoring System and Title Maker System.

2020 August, Wushu Taolu Championship in Shanghai

                        Wushu Taolu Championship in ShanghaiThe match uses our Wushu Taolu Scoring System, Video Arbitration

             System and Title Maker System.

2019 July, Shanghai 3x3 Basketball Youth Tournament

                         The match uses our Basketball Scoring System and Title Maker System.

2019 May, MICHELIN PILOT SPORT Goldenport Grand Prix

2018 September, KFC 15th Basketball 3ON3

                         The match uses our Basketball Scoring System and Title Maker system to overlay the game time and score

             onto the live stream.

2018 August, JUMP10 World Hoops Challenge

2018 April, China High School Men's Basketball League

                        The match uses our Title Maker system to overlay the game time and score onto the live stream.

2017 August, JUMP10 World Hoops Challenge

2017 May, 2017 Jr.NBA Shanghai

2017 Jr.NBA Shanghai

2017 April, 2017 Sina 3x3 Basketball Golden League

                       Our Basketball Scoring System and Title Maker has been used in this game.

2017 Sina 3x3 Basketball Golden League 2017 Sina 3x3 Basketball Golden League

2017 March, FIFA World Cup qualifiers for Asia 2018

                      The competition between China & Korea held in HeLong stadium, which is the most important match for

           China team. Our scoring and variety of display equipment was used on this match. We are proud of showing a

           brilliant game to all the audience.

Football Socring System

Production Switcher

Title Maker

Video Slow Motion

FIFA

2016 September, School

              SchoolThe Title Maker system was used to overlap the score onto the live video. Once the score

       changed by the judge, it will be display on this screen immediately.

2016 May, Huaxing Verterns Badminton Championship

              Huaxing Verterns Badminton ChampionshipFollowing products was used in this case:

Production Switcher

Title Maker

Streaming Encoder

2012 September, 2012 Nine Ball China Open Tournament

                      used our billiard scoring system. Which used the event management system to manage the information

            of every player. The real-time scores would be published on the live web site automatically.

                     The Title Maker system also be used on this match. The name and score information of the contestants be

           overlapped on live video in real time and convert into streaming media for broadcasting on the network.

2012 August, Nike Festival of Sports

                      Nike Festival of SportsNike Festival of Sports held by Nike is an annual event loved by a large number of

            enthusiasts.

                     In the basketball tournament of current Nike Festival of Sports, our basketball scoring system was used to

           scoring and timing.

                    It also used our new product Title Maker. It overlaps the real-time score and match time signal onto the

           live video, and displayed on LED Screen.

Nike Festival of Sports Nike Festival of Sports
