OEM high-speed wireless network 11N 300Mbps Wireless Ceiling AP wireless product
- 50000 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
-
300Mbps High-Power Indoor PoE ceiling AP/ ROUTER for hotel Atheros AR9341 poe wifi access point
-
AR9341 Wifi Network Solutions 300mbps Access Hotel Point
-
300mbps 2.4Ghz Indoor Wireless/WiFi Access Point with 48V Standard POE For Hotel
-
hotel and Family 300Mpbs oem wifi Access point
-
48V POE 300Mbps Inwall wireless wifi access point
-
48V POE wireless wifi access point
Product Details
| Place of Origin | Guangdong, China | Brand Name | Elifecosy | |
| Model Number | EC-CA48 |
Product Description
OEM high-speed wireless network 11N 300Mbps Wireless Ceiling AP wireless product
access point Description:
2.4GHz 533MHz Atheros9341 Chipset
300Mbps Ceiling Mount Design
64MB DDR RAM,8MB-16MB SPI
Built-in 5dBi Omni-Directional MIMO2x2 Antenna
50 Users,Cover 100~300m Without Block
Support 48V POE,1*RJ45 Interface
1*Reset Button,1*Power DC Jack,2*LED
AP Bridge/Client Bridge/WAN Gateway Mode Supported
Support AC Software Centralized Management
access point Features:
1.Complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards
2.Support 2.4GHz LAN networks. Provides up to 300Mbps transmission rates
3.Support Wireless Auto-channel selection
4.Supports WiFI Protection Setup function (WPS) WEP, WPA, and WPA2 to ensure network security from unauthorized access
5.200mw MIMO Built-in 2 omni-directional high-gain 5 dBi antenna,easily cover the dead zone of the room.
6.Supports AP Bridge/Client Bridge/WAN Gateway mode,adjustable modes according your needs.
7.Adjustable transmit power,you can control your wireless cover range according different requirement.
access point Specification:
Hardware | |||
Model | EC-CA48 | ||
MCU | Atheros AR9341 | ||
Memory | 64MB DDR RAM | ||
Flash | 8MB-16MB SPI | ||
Interface | 1*RJ-45 for 100 Mbps WAN/LAN Port(Support 48V POE) | ||
1*Reset Button(Reset&Factory Default) | |||
1*Power DC Jack;2*LED | |||
Antenna | Built-in 5dBi Omni-Directional | ||
Power | 802.3af,48VPOE,110V/220V | ||
RF Parameters | |||
Standards | IEEE 802.11b/g/n | ||
Speed | 300Mpbs | ||
Modulation Mode | OFDM=BPSK,QPSK,16-QAM,64-QAM | ||
DSSS=SBPSK,DQPSK,CCK | |||
Frequency | 2.4~2.4835GHz | ||
Sensitivity | 802.11n(2.4GHz) | 802.11g | 802.11b |
-90dBm*MCSO | -90dBm*6Mbps | -95dBm*1Mbps | |
-70dBm*MCS7 | -72dBm*54Mbps | -90dBm*11Mbps | |
-90dBm*MCS8 |
|
| |
-68dBm*MCS15 |
|
| |
Transmit power | Adjustable 17dBm-23dBm 100-200mw | ||
Software | |||
Mode | AP Bridge/Client Bridge/WAN Gateway | ||
Standards | IEEE 802.3(Ethernet) | ||
IEEE 802.3u(Fast Ethernet) | |||
IEEE 802.11b/g/n(2.4G WLAN) | |||
Wireless Setup | Support Multi SSID Channel Selection(1-14 Channel) | ||
Switch of SSID Broadcasting | |||
Support Multi-country Channel | |||
Security | Support 64/128/152Bit WEP Encryption | ||
WPA / WPA2,WPA-PSK / WPA2-PSK Security Mechanism | |||
SSID Hiding;MAC Address Filtering | |||
Physical Characteristics | |||
Temperature Characteristics | Working Temperature: 0 ℃ ~ 55 ℃ | ||
Storage Temperature: -40 ℃ ~70 ℃ | |||
Humidity | 5%~95%(Typical) | ||

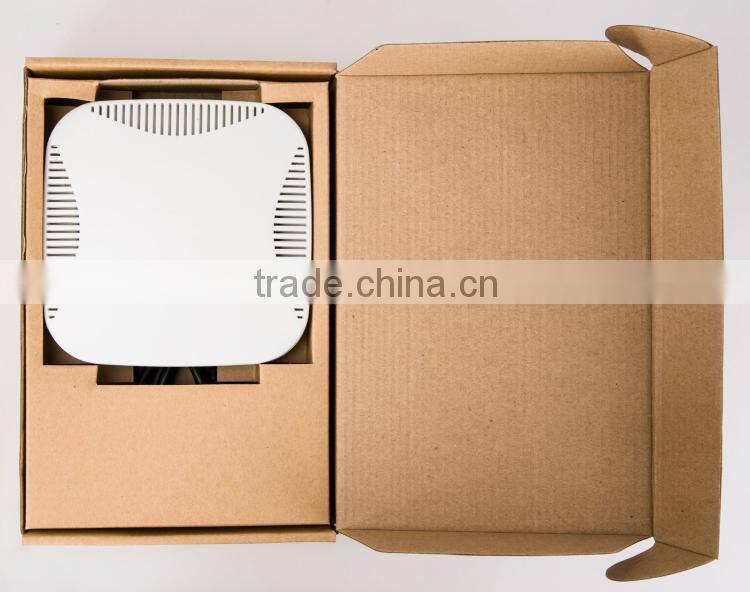

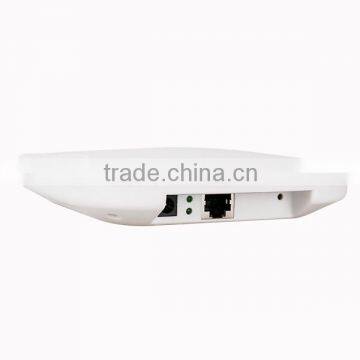

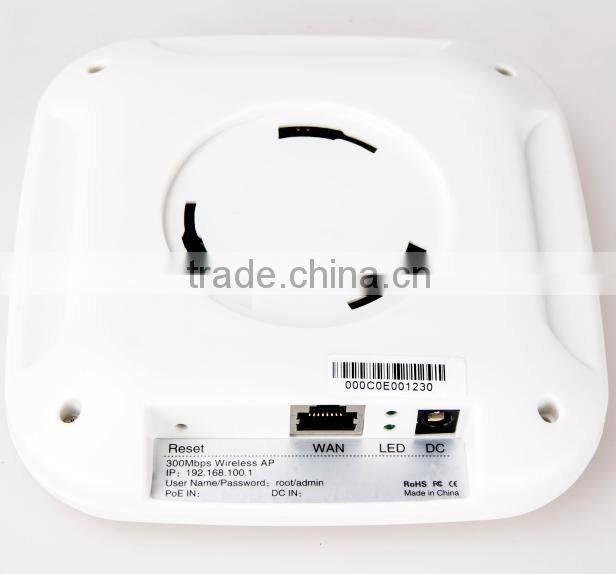

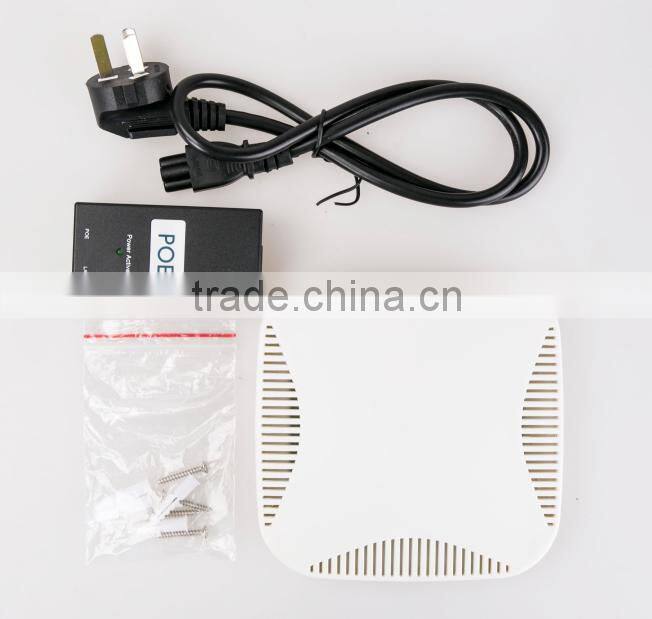

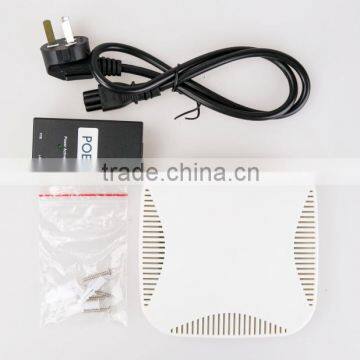

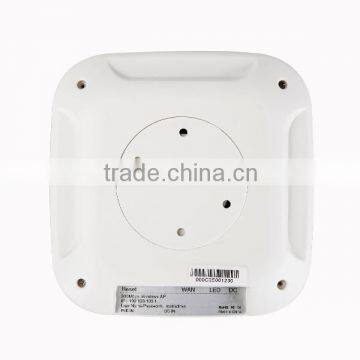

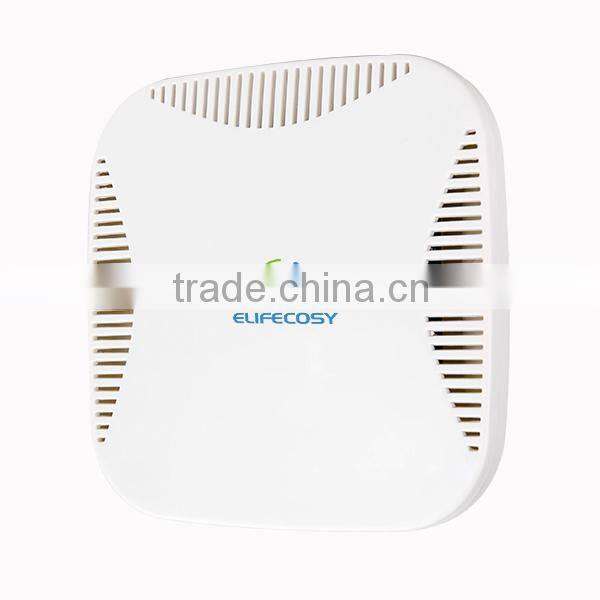

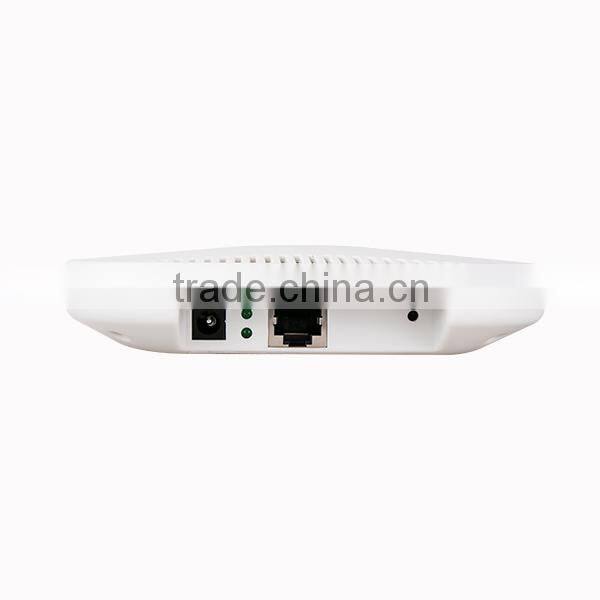

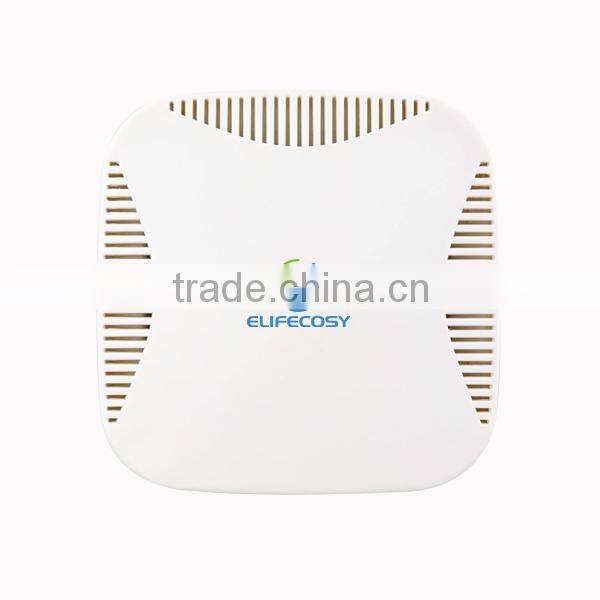

access point Picture Show

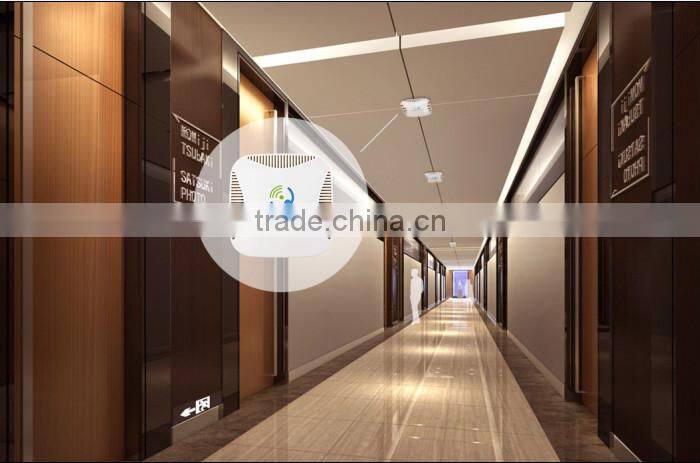

access point`s Application

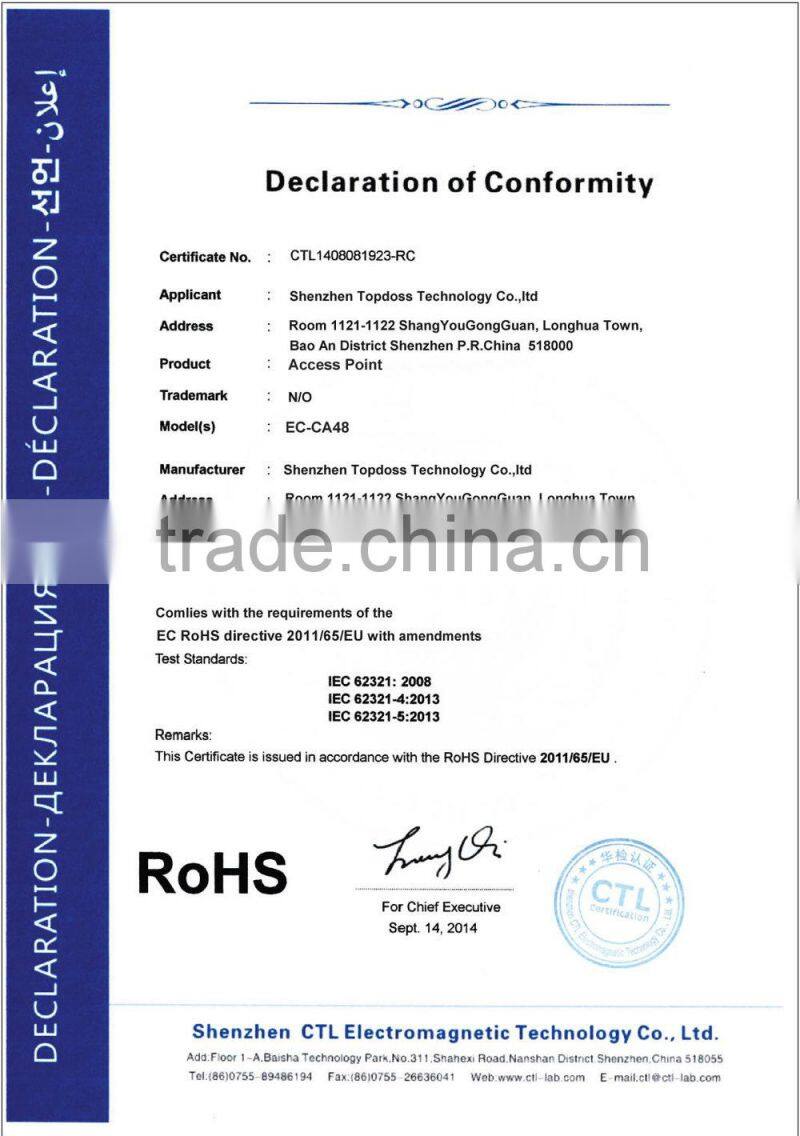

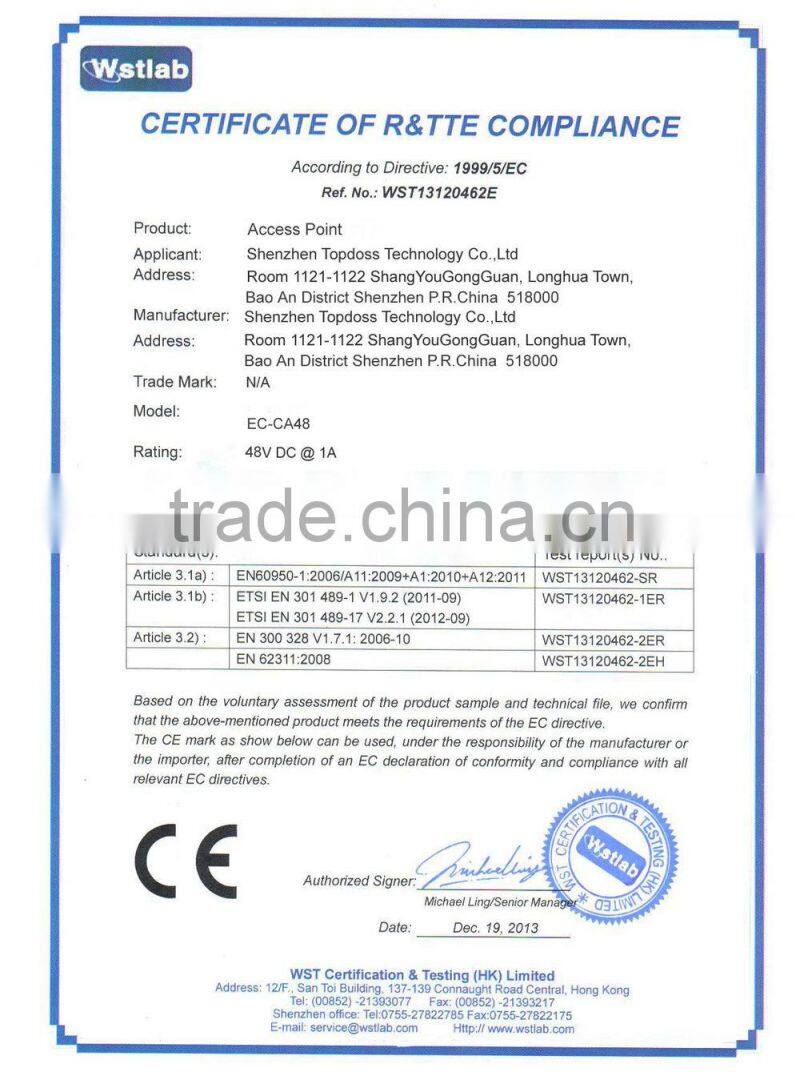

wifi access point`s Certificate

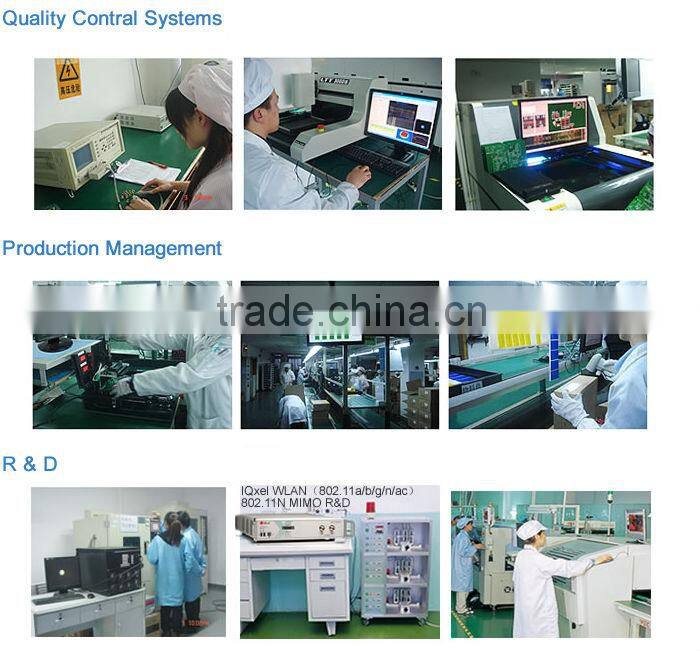

Factory show
Order access point now !
