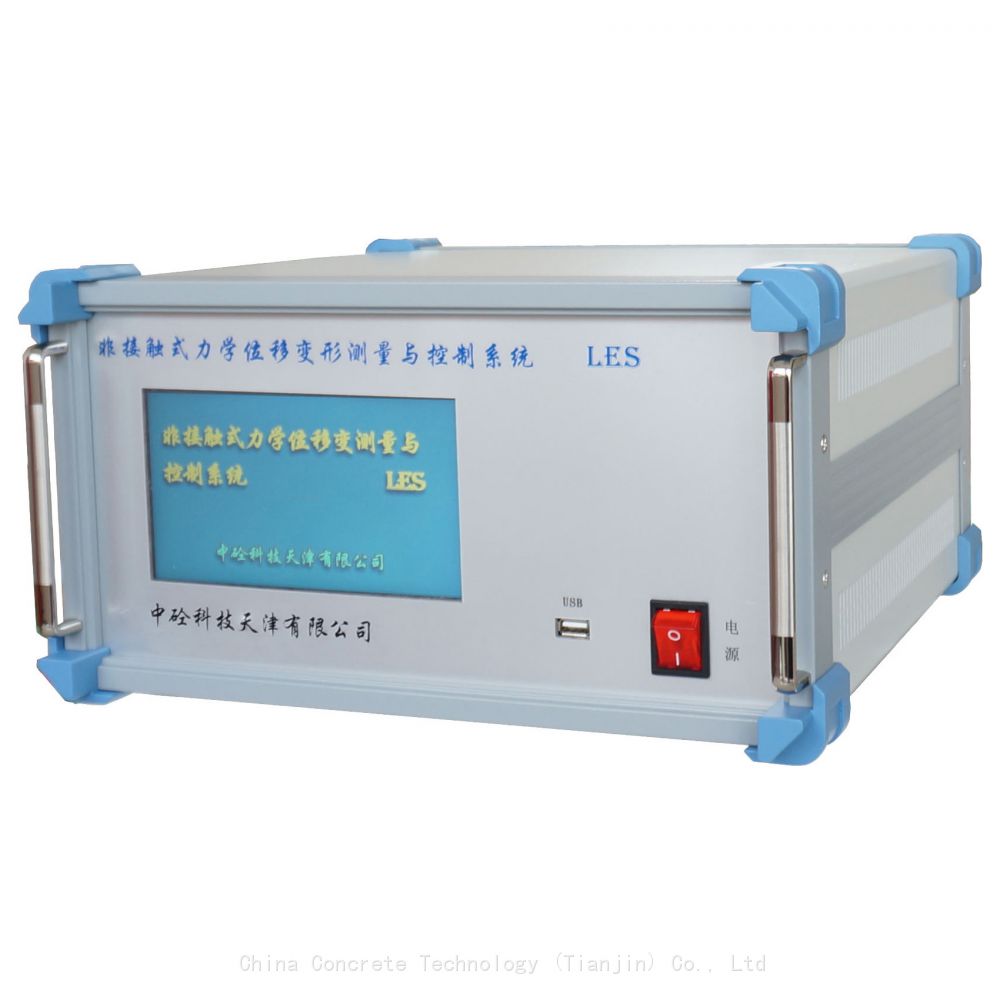

Non-contact Mechanical Displacement Deformation Measurement and Control System LES Type

Product Usage

    This equipment is used for measuring and controlling the small deformation of specimens in mechanical performance tests of building materials in colleges and research institutes. It adopts a non-contact method to measure the deformation of specimens and is a testing equipment system for studying the micro deformation of building materials mechanics.

technical parameter

1. Data file storage capacity: 2GB, can be connected to external storage disks;
2. Test range: 2.0mm, expandable to 4mm;
3. Equipment accuracy: less than 2μ M;
4. ※ Number of experimental groups: 1-3 groups are optional;
5. Data collector: original imported, each channel is independent;
6. Measurement method: non-contact measurement;
7. ※ Detection time interval: 1-100 minutes can be set;
8. Number of single test records: greater than 10000 records;
9. Power supply: AC110V/AC220V two voltage inputs;
10. Host size: 400 * 350 * 200mm;
11. Net weight: approximately 5.5Kg.
12. ※ The device has an accidental power outage memory and prompt function, and data will not be lost after the power outage;
13. ※ Can connect to the internet and access the official website for online upgrades;
14. The sensor adopts a DB9 interface to avoid poor contact and facilitate insertion and removal;
15. Non contact sensor measurement, high accuracy, not affected by the surface material of the specimen;
16. ※ Using specialized fixtures, matched with pressure machines and universal machines, can avoid external interference;
17. The experimental process is displayed on a real-time curve, and the results can be automatically calculated after the experiment is completed. The test data and related information can be automatically generated using the built-in specialized software.
