Building a Sustainable Briquetting Plant

The normal package of High Pressure Hydraulic Briquetting Machine for Copper Smelting Factory is wooden box (Size: L*W*H). Normally the wooden box will be fumigated according to export countries rules. If container is too tighter,we will use PEfilm for packing or pack it according to customers special request. Spare parts is put into wooden case or steel box, big machines loaded in container, large machines use nude packing, cover with plastic cloth. We export through Qingdao Port, also can be nominated by customer. We have superior cargo agent to arrange the sea shipment for each client,

Building a Sustainable Briquetting Plant

Building a Sustainable Briquetting Plant Introduction:

(1) Building a Sustainable Briquetting Plant is mainly used for anhydrous materials of nonferrous and ferrous high pressure briquetting machine/ball making system before the smelting furnace.

(2) Raw material ranges from coal, coke powder, coking coal, coal ash, coal mud, iron ore concentrates, chromate ore concentrates, mgo power, copper power, chrome ore power, Lead Zinc Ore, steel slag, aluminum ash, Si Mn mineral powder, bauxite refractory, nonferrous metal power, refractory matter, ceramic filter sand and metallurgical powder cold pellet making industry.

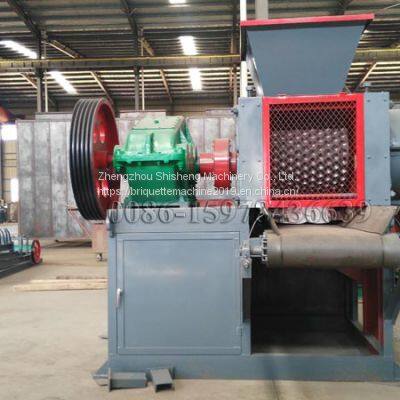

Building a Sustainable Briquetting Plant Structure:

(1) The feeding part, is used to feed material so that the material can feed to roller evenly, it is driven by three phase asynchronous motor.

(2) The transmission part, main transmission system is: Motor - Triangle belt - Reducer - Exposed Gear - Roll.

(3) Forming part, mainly refers to the part of the host machine, its core part is roller.

Building a Sustainable Briquetting Plant Customer Notice:

(1) Material size required before feeding into Building a Sustainable Briquetting Plant is better not more than 5mm, if large, it is necessary to crush them into smaller, or equip a crusher before briquette machine. Our factory also produce this kind of crusher. Welcome to consult.

(2) Moisture content is around 12-15%. If not, it is necessary to get drying process in advance or inquiry us dryer machine.

(3) The finished products from Building a Sustainable Briquetting Plant is usually at Φ25-60mm, customized size.

(4) The final briquettes are smokeless, non-toxic, none peculiar and environmental protection, and easy transport.

(5) The shape can be Square, ball egg-shaped, round, oval, and column, elliptic type, pillow type and other special shapes by customizing the match molds.

Building a Sustainable Briquetting Plant Technical Parameter:

Model: KF650-500-300

Reducer: ZQ650

Ratio: 40.17

Roller Size: 500*300mm

Main Shaft Speed: 8-10r/min

Matched Power: 37kw

Capacity: 8.5-9.5t/h

Pressure Type: Constant Pressure/Hydraulic Pressure

Roller Material: 65Mn, high chrome alloy and 9Cr2Mo
