Home > Products > reactor > AMM-50S Laboratory Customizable Vacuum Reactor Made of Stainless Steel Material for Electric Lifting and Mixing of Food and Meat

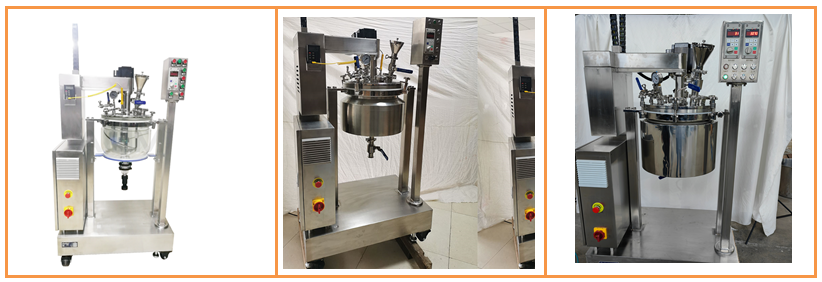

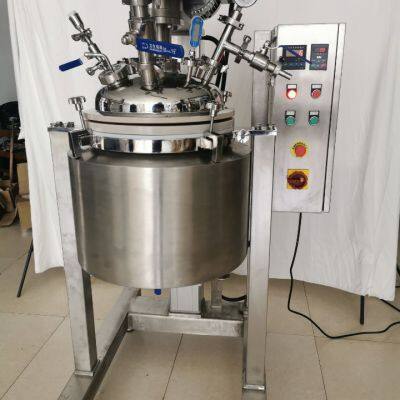

AMM-50S Laboratory Customizable Vacuum Reactor Made of Stainless Steel Material for Electric Lifting and Mixing of Food and Meat
- T/T
- 15 days
You May Like
-
AMM-SE-1L Laboratory Simple Vacuum Semi-automatic Lifting Stainless Steel Reaction Kettle for Mixing and Homogenizing Ointment Lotion
-
AMM-SE-10L A Quickly Assemblable Stirring Emulsification Machine Commonly Used in Chemical Laboratories for Nanomaterial Dispersion
-
AMM-SE-5L Vacuum Sealed Stirring and Emulsification Reaction Kettle for Homogeneous Shear of Suspension
-
AMM-SE-2L Customizable Laboratory Stirring Emulsification Reaction Kettle - Can be Used Together With Ultrasonic Water Bath Pot
-
AMM-50S Laboratory Elevatable Mixing Emulsification Reactor for Foundation Make-up Essence Homogenization in Cosmetics Industry
-
AMM-20S Vacuum Emulsification Reaction Vessel for Chemical Production - Resin Nanoscale Material Mixing and Homogenization
Product Details
| Brand Name | AMM | Place of Origin | China | |
| Model Number | AMM-50S | Type | Other | |
| After-sales Service Provided | No overseas service provided | Warranty | 1 year | |
| Condition | New | Voltage | 220V/50Hz | |
| Power(W) | 750W | Automatic Grade | Automatic |
Product Description
Application
The processing capacity of the AMM standard system is 0.5L, 1L, 2L, 5L, 10L and other model. It can realize the process of material dispersion, emulsification, homogenization, and mixing under vacuum or pressure environment. It can be equipped with a variety of high-efficiency macro mixers (optional), high-shear homogeneous emulsifier (optional), and reliable vacuum sealing system and temperature control system. A variety of sensor detection systems can simulate industrial production in a laboratory environment. It is a good choice for conventional complete laboratory equipment and meets all simulation conditions of complete equipment
Features
Benchtop modular jacketed vacuum emulsifier glass reactor hydrogenation solutions
The equipment is highly modular and can be equipped with various functional systems. High speed motor imported from Germany, long life design, stable operation. Lightweight design of the entire system, integrating a small lifting system. Stepless speed regulation, the maximum speed can reach 30,000rpm, and the maximum cutting line speed is 27m / s for you. Meet your different working environment (closed, open, normal pressure, vacuum, gas protection, high temperature, low temperature) The working head is made of stainless steel, which can be reused and meets hygienic standards. Modular design of equipment, any system can be flexibly combined. Add any other custom
Power 220V/50Hz |
Stirring volume 8L |
volume 20L |
Emulsification volume 10L |
Max working temp 120 ° (optional high temperature) |
Heating method water bath, oil bath circulation |
Vacuum condition -0.096Mpa (positive pressure optional) |
Viscosity max. 130000CP |
Mixer power 750W |
Mixer speed 13~86rpm /130~2000rpm (high speed optional) |
Mixer agitator Anchor scraper (optional spiral belt) |
Scraper material Silicone rubber (optional PTFE hard scraper) |
Homogenizer power 750W |
Homogenizer speed 300-6000rpm |
Speed display LCD display (digital display timing) |
Homogenizer head model 60BCS |
Openings on cover Homogenizer opening, hopper opening, temp measurement opening, vacuum opening,3 spare opening |
Bracket lifting method Electric auto lift (semi-auto cylinder lifting optional) |
Lifting height 430mm |
Medium-contact material SUS316L stainless steel PTEF borosilicate glass |

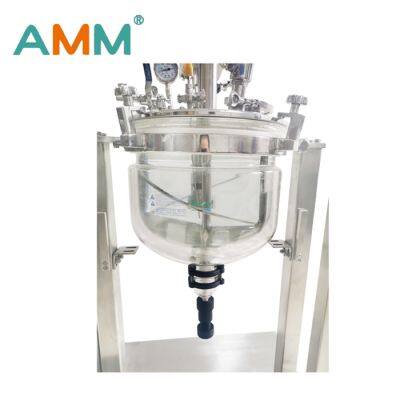

Reactor body material borosilicate glass (SUS316L stainless steel container is optional) |
Outer Dia. vacuum opening 10mm |
Jacket inlet/outlet size 12mm |
Wooden Dimensions Reference Design Drawing |
Weight Reference Design Drawing |
