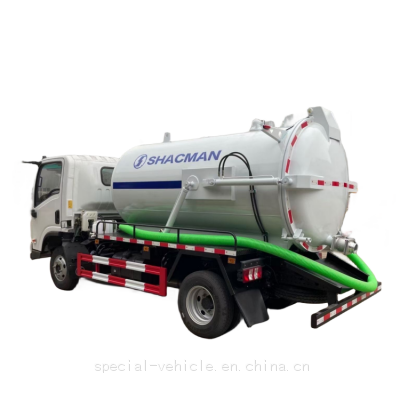

SHACMAN 10 Cbm Sewage Suction Truck With High Pressure Cleaning for Sale

How to choose a sewage suction truck?

Q1：How much volume is needed？

       TO： We can provide 3cbm,5cbm,8cbm,10cbm,12cbm,15cbm,18cbm,20cbm,25cbm,30cbm,35cbm etc.volumes for selection

Q2：What chassis do you want to use?

       TO：ISUZU ,SHACMAN ,DONGFNG ,FOTON ,SINOTRUK HOWO ,JAC ,JMC,etc.

Q3：Which country are you using it in, what is the temperature, what are the road conditions, and what are you using it for?

       TO：We will reasonably recommend detailed configurations based on specific circumstances to make your use more efficient and convenient.

Q4：Are there any requirements for the brand of vacuum sewage pumps?

       TO：Made in China or Italy（jurop,BP.etc）

Q5：How to choose a high pressure pump？

       TO：Determine the flow, pressure, brand, or tell us the diameter of the sewer pipe, and we will make a reasonable match

Q6：How to buy？

       TO：Contact our manufacturer directly and we will make reasonable recommendations based on your actual situation.

What is a vacuum sewage suction truck?

    1)Suction sewage truck is a new type of sanitation vehicle that collects, transfers, cleans and transports sludge and sewage to avoid secondary pollution. The sewage suction truck can self-prime and discharge, with fast working speed, large capacity and convenient transportation. It is suitable for collecting and transporting liquid materials such as feces, mud, crude oil and so on. The sewage suction truck adopts the domestic technology-leading sewage suction truck vacuum pump, which has large suction power and long suction range. It is especially suitable for suction, transportation and discharge of sludge in the sewer, especially sewer mud, silt, stones and bricks. Larger objects such as blocks.

    2)The special part of the sewage suction truck is composed of power take-off, transmission shaft, vacuum sewage suction pump, pressure tank, hydraulic part, pipe network system, vacuum pressure gauge, feces viewing window, hand washing device, etc. The vehicle is equipped with high-power vacuum sewage suction Pump and high-quality hydraulic system, the tank head is die-cast in one step, the tank can be opened backwards, and the double top is self-unloading. The dirt in the tank can be dumped directly through the back cover. It has the characteristics of high vacuum (greater suction power than the fecal suction truck), large tonnage, high efficiency, and wider use.

  3)Since the fecal suction hose is always immersed in the liquid surface, after the air in the fecal tank is sucked, it becomes thinner and thinner because it cannot be replenished, causing the pressure in the tank to be lower than the atmospheric pressure. The fecal liquid is used under atmospheric pressure. , enter the container through the fecal suction hose. Or because the siphon is close to the bottom of the tank, when the air is continuously discharged into the fecal tank, it is compressed because there is no way out, causing the pressure in the tank to be higher than the atmospheric pressure. The fecal liquid is discharged through the siphon and fecal suction hose under the action of the compressed air. outside the tank.

    4)The sewage suction truck has the characteristics of high suction efficiency, self-priming, self-draining and direct irrigation. Time to pump a full manure tank: ≤5min, suction distance: ≥8m. It has the characteristics of long service life, fast working speed, easy operation and convenient transportation.

    5)Sewage suction trucks are mainly used to clean urban sewers, pipe sediments, and clear mud ditches in dead corners. They can also be used to clean industrial drainage pipes, walls, etc., and can also be used for sprinkling, transporting water, and flushing roads. They can also be used for fire fighting in emergencies.
