Home > Products > disperser > AMM-MDS25 Laboratory Online High Shear Emulsification Disperser - Efficient Homogenization With Interlayer Constant Temperature

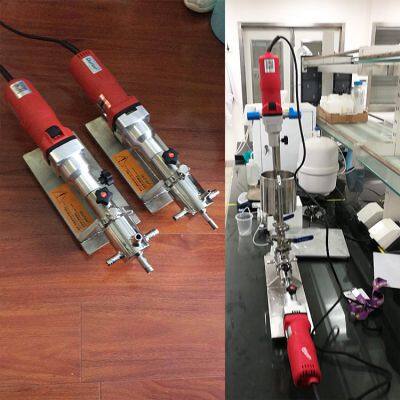

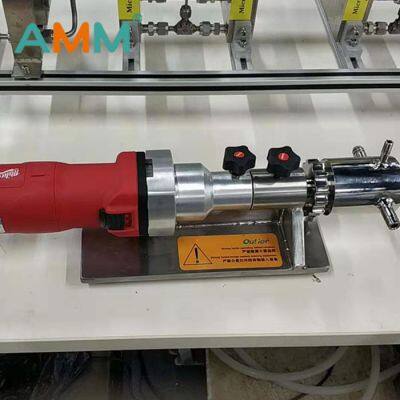

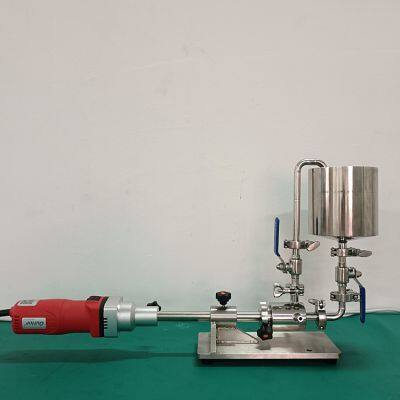

AMM-MDS25 Laboratory Online High Shear Emulsification Disperser - Efficient Homogenization With Interlayer Constant Temperature
- T/T
You May Like
-
AMM-MDS30 Laboratory Online High Shear Emulsification Disperser - Pipeline Imported Motor Stepless Speed Regulation
-
AMM-1S Laboratory Ultrasonic Reactor - Closed Stirring Emulsifier for Nanomaterials in the Chemical Industry
-
AMM-1S Laboratory Ultrasonic Reaction Kettle - Closed Reaction Kettle for Use With Stirred Emulsified Ultrasound
-
AMM-5S A Temperature Controlled Reaction Kettle in the Laboratory - a Standby Constant Temperature Stirring Emulsifier for Preparing Hyaluronic Acid
-
AMM-10S Laboratory Customizable Non-standard Reaction Kettle - Spray Coated PTFE Wall Mounted Blade Fully Homogenized
-
AMM-10S Laboratory Vacuum Stirring Emulsifier - Used for Mixing Pet Food Preparation
Product Details
| Brand Name | AMM | Place of Origin | China | |
| Model Number | MDS25 | Certification | Provided | |
| After-sales Service Provided | No overseas service provided | Warranty | 1 YEAR | |
| Dimension(L*W*H) | 470*120*190mm | Condition | New | |
| Product Type | Cosmetic | Voltage | 220V/50Hz | |
| Application | Liquid | Power(W) | 500W | |
| Max. Loading Capacity | 1-15L/min | Additional Capabilities | Coating | |
| Mixer Type | Agitator |
Product Description
Laboratory in-line stepless speed regulating high shear emulsifier/online high shear emulsification dispersing machine MDS25: high efficiency, lightweight, whole machine module structure, easy to operate, can run for a long time, easily meet a variety of high requirements of dispersion emulsification experiments. It can simulate online working conditions in the laboratory for cycle or online continuous processing, with the characteristics of efficient homogenization and dispersion
FeaturesHigh-speed motor imported from Germany, long-life design, can run stably for a long time for 4 hours and more
Infinitely variable speed control system, the speed can reach 28000rpm, providing you with a shear line speed of 27m/s
The whole machine has reasonable structural design, excellent material selection, light use and handheld operation
Highly modular design: in-line head wall design
Overload protection, double protective insulation, give you safety
The working head is made of stainless steel, which is reusable and can be flexibly assembled
Technical Data
Model: MDS25
Power 220V/50Hz |
Motor power 500W |
Speed range 10000~28000rpm |
Volume range(H2O) 1-15L/min |
Viscosity max. 10000CP |
Speed control Electronic Stepless |
Standard working cavity Stainless steel jacketless working chamber |
Speed display Scale display (optional digital display) |
Standard Dispersing tool 20BCS |
Medium-contact material SUS316L |
Stirring element fastening Chuck |
Mechanical seal material SiC, FKM, ceramic |
Hygiene standard GMP medical standard |
Inlet and outlet diameter 14 (hose connection) |
Carton Dimensions 470*120*190mm |
Stand type Stainless steel standard |
Weight 10KG |
