Spring Roll Wrapper Production Line
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
Product Description
Product Description
GYC full automatic lumpia spring roll mixing filling rolling folding making machine
Capacity1350PCS/H,2400PCS/H,3600PCS/H,7200PCS/HAutomationFull automaticFinal productSpring rollsProduct KeywordsGYC shanghai
spring roll pastry making machinery

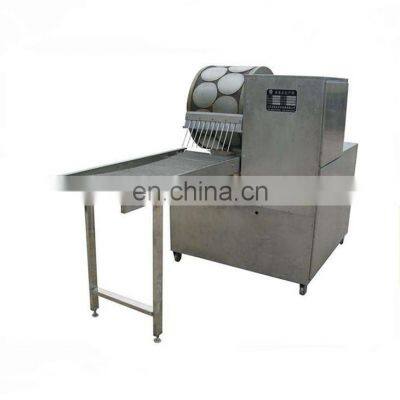

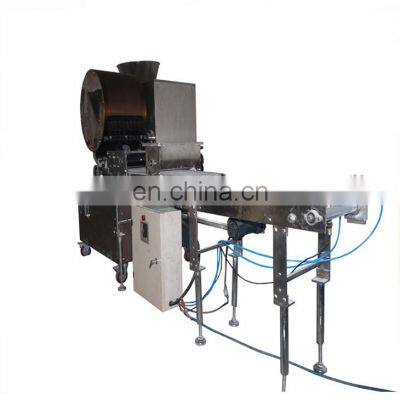

This automatic spring roll making machine is a newly developed spring roll processing equipment in our factory.
The machine has high degree of automation, automatic temperature control and good hygienic conditions.
It opens up a new way for traditional food processing by modern methods.
Principle: According to the technological requirements of flour pulp production, the flour pulp is made well.
After being heated and baked by a round baking wheel, the flour pulp becomes a custom-made spring roll skin
with fixed thickness.
Flow: Put the prepared pulp into the barrel, when the baking wheel is heated to 120 C, start the pulp pump
to deliver the pulp to the leather making mould (customized shape according to customer requirements),
then make the pulp adhere to the arc surface of the baking wheel through the leather making mould.
When the baking wheel rotates over 270-300 degrees, the pulp is ripened, and then the spring roll leather
is separated from the wrapping conveyor belt by the spatula. When the spring roll skin passes through
the outlet of the filling machine, the filling opportunity distributes the filling evenly
(the number of filling grams can be adjusted) on each spring roll skin, and then the filling is wrapped with the spring roll skin,
and finally the spring roll is formed by the wrapping part of the roll circle. The final spring roll falls directly on
the cooling conveyor belt. At this time, the spring roll can be sorted manually into the packaging box and put into
the cold storage. It can also be fried directly through the fryer.
Capacity1350PCS/H,2400PCS/H,3600PCS/H,7200PCS/HAutomationFull automaticFinal productSpring rollsProduct KeywordsGYC shanghai
spring roll pastry making machinery
This automatic spring roll making machine is a newly developed spring roll processing equipment in our factory.
The machine has high degree of automation, automatic temperature control and good hygienic conditions.
It opens up a new way for traditional food processing by modern methods.
Principle: According to the technological requirements of flour pulp production, the flour pulp is made well.
After being heated and baked by a round baking wheel, the flour pulp becomes a custom-made spring roll skin
with fixed thickness.
Flow: Put the prepared pulp into the barrel, when the baking wheel is heated to 120 C, start the pulp pump
to deliver the pulp to the leather making mould (customized shape according to customer requirements),
then make the pulp adhere to the arc surface of the baking wheel through the leather making mould.
When the baking wheel rotates over 270-300 degrees, the pulp is ripened, and then the spring roll leather
is separated from the wrapping conveyor belt by the spatula. When the spring roll skin passes through
the outlet of the filling machine, the filling opportunity distributes the filling evenly
(the number of filling grams can be adjusted) on each spring roll skin, and then the filling is wrapped with the spring roll skin,
and finally the spring roll is formed by the wrapping part of the roll circle. The final spring roll falls directly on
the cooling conveyor belt. At this time, the spring roll can be sorted manually into the packaging box and put into
the cold storage. It can also be fried directly through the fryer.
related products :
2019 hot sale Tabletop Dumpling Machine maker australia springroll pastry making machine/small samosa dumpling pastry maker/automatic samosa making machine/dumpling machine/spring rollmachine/1/6
Factory price Chinese automatic dumpling machine/samosa making machine/spring roll machine/Automatic Commercial Egg Roll Skin Wrapper Maker /Automatic Mini Spring Roll Ethiopian Injera Making Machine/Fully Automatic Tabletop Mini Desktop Perogi China SambosekSpring Roll Dumpling Machine/trade assurance Samosa Sheet Making Machine | Spring Roll Sheet Making Machine | Samosa Pastry Sheet Machine/Automatic Chapatti making machine/Chapati makingmachine/spring roll machine/automatic samosa making machine dumpling machine spring rollmachine/Fully Automatic Pancake Chapati Spring Roll Wrapper MakerMachine Spring Roll Sheet/Lumpia/Samosa Pastry Sheet Making/High Quality Empanada Dumpling Spring Roll Wrapper Machine/High quality automatic 1 mould equipped dumpling making samosa maker machine/Grain product making machines/Automatic samosa dumpling/automatic roti maker/ roti making machine/Spring Roll Pastry Flour Tortilla Maker/High quality 304 stainless steel small wonton spring roll skin maker dumpling wrapper machine/New Automatic Electric Lumpia Pastry Sheet Making Spring EggRoll Wrapper Maker Injera Forming Machine/China forming spring roll sheet machine processor maker fingerproduction line/Popular Best Selling Samosa Crepe Making Machinery Thin Pancake Rolls Machine Spring Roll Sheet Product Line/Fully Automatic Finger Spring Roll Wrapper Making Production Line/Commercial Egg Roll Skin Wrapper Maker/ Pastry BakingProduction Line /Spring Roll Making Machine/Spring Roll Skin Maker/Spring Roll Pastry Wrapping ProductionLine/Spring Roll Sheet Forming Machine / Spring Roll Pastry Productionline/Spring Roll Pastry Making Machine...
packing
1.We can load container at:Qingdao,Shanghai, Ningbo,Tianjin, Guangzhou, etc.
2.We provide shipping methods:Courier service,Air transport,Sea Transport
3.Can accept order:Full container cargo load,Less container load
4.Delivery term :EXW,FOB,CIF,CNF, Door to Door etc.
We always choose the most economical and reliable shipping company to make sure you receive the goods in time. The BL and tracking number will be provided to you once the consignment is shipped.
Our Services
Training and Use
1.We will supply with the machine operation manual in English version for installing and operation.
2.We will make training video for client’s reference.
3.Customer can come to our factory for free training.
Warranty and After sales service
1.Our warranty is within 12 months from the date when client receive the material.
2.We supply after sales service for 24 hours, 7 days per week. Customer can contact us any time.
3.When some problems can’t be solved by customers, our engineer can go to door to support.
