full plant vinegar manufacturing machine
- T/T Credit Card
You May Like
-
china apple vinegar making machine
-
Apple wine pineapple etc fruit industrial juice making machine
-
complete small capacity orange juice processing machine
-
Concentration orange juice production process/auto orange juice machine
-
Genyond Factory automatic industrial Hot chili stem removing remover equipment/ red pepper stem cutting cutter machine
-
Best Selling Cashew Kernel and Shell Separator/Separating Machine for sale
Product Description

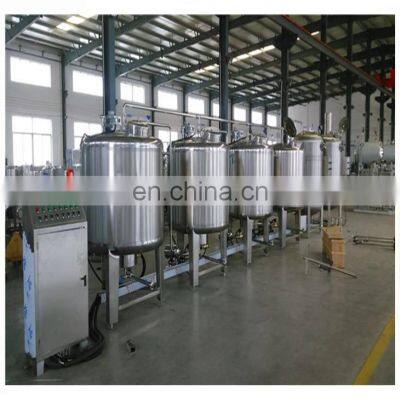

Fruit vinegar liquid fermentation process line
Process: juice(choose by client)--enzyme alcohol fermentation -- --mixing - acetic acid fermentation-- --vinegar machine----mixing----filtration sterilization(choose by client) - packing(choose by client).
- Tanks system : rotating axis and horizontal tanks , SUS316L material is used, and it is processed by polishing inside and outside. Designed pressure is 0.25Mpa, operating pressure is 0.01-0.07Mpa, heat is transmit- ted by inner bushing with big vaccination, out-off-band jacket, special security ventilation, exhaust and sample port.
- Mixing system : mechanical agitation, double propellers blades; speed control: timed positive --negative operation , 0-99 minutes adjustable.
- Temperature control : Cooling water +5°C. Pt--100 temperature and electrode, fuzzy PID intelligent controller.
- Ventilation flow : 0--1VVM (rotermeter.) 0.2μm asepsis air filter, tank pressure: 0-0.3Mpa, pressure gauge indication, manually operation adjustment.
- Regnant vaccination and blending : Uniform vaccination by regnant tinder and flame. Stable and even fermentation happens with blending material in the tank and crushing system in the biochemical reaction process
- Disinfection and smoked grains : Steam is accepted externally and manually controlled, mature vinegar grains is ventilated with steam directly in fermentation tank with special mixing system in order to reach regnant disinfection and smoked grains.
•♦C2H5OH+[O]→CH3CHO+H2O •♦ CH3CHO+H2O→CH3CH(OH)2 •♦ CH3CH(OH)2+[O]→CH3COOH+H2O
|
Item
|
300T/year |
600T/year |
1000T/year |
2000T/year |
3000T/year |
|
sugaring equipment |
FVPL--1500 |
FVPL--2500 |
FVPL--3500 |
FVPL--6500 |
FVPL--10000 |
|
Enzymolysis equipment |
FVPL--1500 |
FVPL--2500 |
FVPL--3500 |
FVPL--6500 |
FVPL--10000 |
|
Alcohol fermentation equipment |
FVPL--1500 |
FVPL--2500 |
FVPL--3500 |
FVPL--6500 |
FVPL--10000 |
|
Alcohol fermentation equipment |
FVPL--1500 |
FVPL--2500 |
FVPL--3500 |
FVPL--6500 |
FVPL--10000 |
|
Vinegar equipment |
FVPL-1000 |
FVPL-1000 |
FVPL-1000 |
FVPL-1000 |
FVPL-1000 |
|
storage tank |
5m3 |
5m3 |
5m3 |
6.5m3 |
10m3 |
