Customized Modification of Anti Sinking Semi Chain Rail Models for Agricultural Machinery Modification

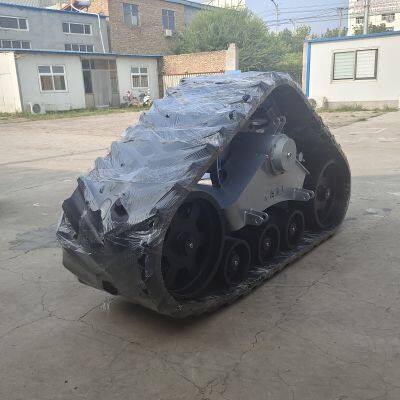

 Structural Performance Characteristics of Yishou Heavy Industry Rubber Track Half Chain Track

1. It can support the weight of the host and achieve functions such as forward and backward turning and walking.

2. Equipped with a built-in low-speed high torque motor walking reducer, it has high passability performance.

3. Most rubber tracks are made of construction machinery produced using Japanese technology, which greatly enhances their load-bearing capacity and traction, has low noise, and does not harm asphalt roads, and has good driving performance

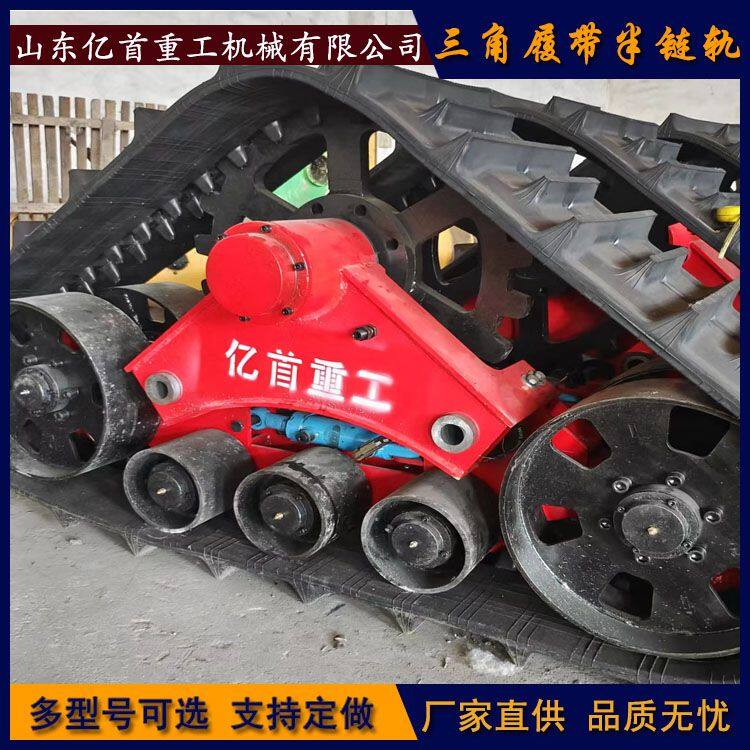

4. The supporting wheels and guide wheels are equipped with deep groove ball bearings, which can be lubricated with grease at once, eliminating the need for intermediate maintenance and refueling during use.

5. The double sealing structure at the shaft end ensures that lubricating oil is sealed without leakage and prevents mud and water from entering the wheel cavity.

6. Reasonable material selection and quenching treatment of alloy steel make the guide wheel and drive wheel teeth have good wear resistance, thereby prolonging their service life. The spring tensioning mechanism is equipped with a color screw adjustment, which has high reliability and is a multi section assembled truss structure. After adjusting the number of sections, the length can be changed. Its lower end is hinged at the front of the turntable and supported by a variable amplitude steel wire rope pulley group, which can change its inclination angle.

For the slewing bearing installed on the chassis, it can transfer all the weight on the turntable to the chassis, which is equipped with power devices, transmission systems, winches, control mechanisms, counterweights, and sheds. The power device can rotate the turntable 360 ° through a rotating mechanism. The slewing support consists of upper and lower rolling discs and rolling elements between them, which can transfer all the weight on the turntable to the chassis and rotate the turntable. To ensure the normal operation and operation of the equipment.

Our company has been producing and selling rubber track half chain rails for engineering machinery, agricultural machinery tractors, and harvester triangular track assemblies for a long time. We can propose design solutions according to the actual needs of customers to ensure that our rubber track half chain rails can cooperate with their mechanical operation. In the long-term promotion process of rubber track semi chain rails, we continuously draw on the experience of the international market in product selection and design, related quality control, and develop our own proprietary varieties according to market demand.

Rubber crawler wheels are used to replace the tires of wheeled vehicles, so as to greatly improve the vehicle's trafficability and traction performance on soft terrain such as mudflat, wetlands and swamps.

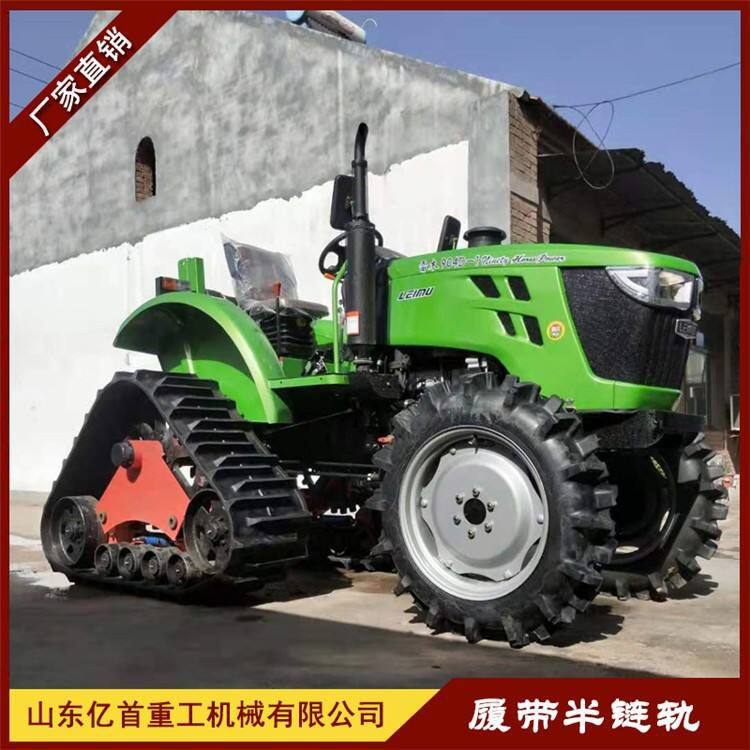

At present, rubber track wheels are used in agricultural vehicles such as tractors, harvesters, and windrowers, and can also be used in other fields such as construction machinery as needed.

1. The overall structure is precise and dense. 2. Made of steel. 3. Strong passability. 4. Flexible steering. 5. Stable and reliable
