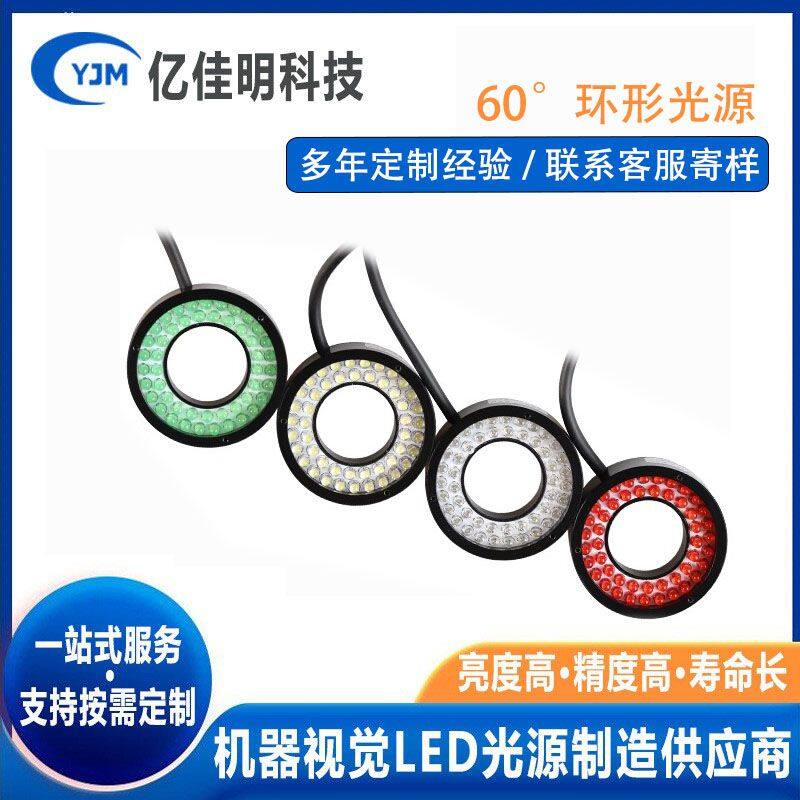

Circular Light Source Board Circular Light Source CCD

Dongguan Yijiaming Technology Co., Ltd., established in June 2020, is a manufacturer specializing in the research and development, design, and production of machine vision light sources. In machine vision, the company provides visual defect services for numerous large-scale projects. The company mainly produces circular light sources, shadowless light sources, AOI light sources, spherical integration light sources, strip light sources, strip combination light sources, coaxial light sources, side light sources, surface light sources, backlight light sources, point light sources, prisms Linear light sources, analog controllers, digital controllers, linear light controllers, and other products can be customized according to the situation.

Professional research and development, production and sales of machine vision light sources and controllers, as well as high flexible drag chain cables with bending resistance of tens of millions of times for visual industrial cameras. The light sources and controllers mainly include: circular light sources, strip light sources, high uniformity backlight sources, external coaxial light sources, planar coaxial light sources, ball integral light sources, AOI light sources, line scanning light sources, point light sources, 3D visual light sources, combination light sources, etc. We also undertake the customization of non-standard products, including 1-24 analog controllers 1-24 encoding adjustment with locking light source controller, 1-24 encoding with RS232/USB/network communication with brightness switching digital, high-speed flying 48V brightening strobe controller, LED constant current source, machine vision connection cables including 26PIN, 36PIN, 12PIN, 6PIN, 4PIN, BNC, DC, etc., CAMERA LINK, POCL, CCXC, USB2.0, USB3.0, 1394, GIGE network cable, CoaXPress cable, and special visual drag chain cable customization, supporting the supply of CCD industrial cameras, Visual products such as image capture cards.

Application scope:

Hardware size measurement, robotic arm positioning, surface defect detection, MARK point positioning, PCB substrate detection, microscope illumination, wafer foreign object detection, various character silk screen detection

Product features:

1. High density LED display, high brightness

2. Compact design, saving installation space

3. Optional diffuse plate for uniform light diffusion

4. Novel heat dissipation structure improves the stability of the light source

5. 360 degree annular light irradiation, highlighting the three-dimensional information of the product

6. Multiple angles, diameters, and brightness options

Custom parameters:

Inner diameter, outer diameter, number of lamp beads, brightness, angle, installation hole position, color
