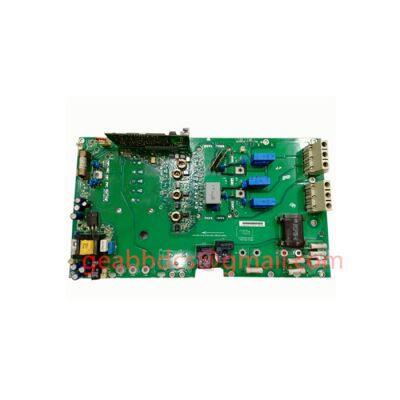

RINT-5611C High power power board driver board

Additional input unit

8 digital inputs, 4 test outputs

Safety level: PL e

Safe input: 8 digital inputs

Security level (SIL/PL): SIL 3- SILCL 3- PL e - Cat four

Working temperature (° C): -10 to 55

Signal display: LED indicates working status and fault diagnosis. LED indication of input conditions

Connection: Removable terminal block, screw contacts

Test output: 4

Storage temperature (° C): -20+ eighty-five

MSC connector: Yes

Connected to MSC bus: Yes

Packaging dimensions W x H x L (mm): 36 x 127 x 113

Power supply (VDC): 24 ± 20%

Dimensions HxWxD (mm): 108 x 22,5 x 114,5

Protection level: IP 20 shell - IP 2X terminal block

Tightening method: Guide rail fastening, in accordance with EN 50022-35 standard

Gross weight (g): 135,4

Contact information: 15359293870

WhatsApp:+86 15359293870

Contact person: KELLY

Email: geabbdcs@gmail.com   386353502@qq.com

Official website:

Performance indicators:

Data electrical interface:

*9-needle Sub_ The D-socket connector and pin definition comply with the protocol specifications of Profibus DP

*Supports the Profibus DP bus standard

*Communication speed: 9.6 kBit/s, 19.2 kBit/s, 45.45 kBit/s, 93.75 kBit/s, 187.5 kBit/s, 500 kBit/s, 1.5 MBit/s, 6 MBit/s, and 12 MBit/s

*Equipped with 4000V lightning protection, 1.5A overcurrent protection, and 600W surge protection functions;

*Terminal resistor: This device does not come with a terminal resistor, please connect it externally as needed

Power supply and protection:

*Power supply: Dual power redundant input, DC (9-36) V, typical DC24V, power consumption less than 4W, with DC1500V voltage isolation and reverse protection function, industrial terminal interface

*Relay alarm output: link fault and power supply fault alarm output, contact capacity: DC48V/1 A, industrial terminal interface

Mechanical characteristics:

*External dimensions: 132mm * 105mm * 52mm

*Shell: IP30 protection level, corrugated aluminum reinforced casing

*Installation method: 35mm guide rail installation

*Net weight: 800g

Work environment:

*Working temperature: -10-70 ℃ (-40~+85 ℃ wide temperature optional)

*Relative humidity: ≤ 90% (non condensing)

*Storage temperature: -40~80 ℃
