European Design Wire Rope Hoist Electric Traveling Forged Hook High Quality
- Qingdao port,China
- T/T L/C
- 25 days
You May Like
-
Slewing Cantilever Arm Jib Crane Light Lifting Equipment A3 Chain Hoist
-
General Single Girder Electric Overhead Traveling Crane Wire Rope Hoist for Sale
-
Boxed Type Single Beam Gantry Crane Portal Crane Hoist Trolley for Lifting
-
RMG Container Gantry Crane Rotating Spreader Rail Mounted Traveling Model
-
Electric Hoist Double Beam Overhead Traveling Crane LH Hoist Trolley
-
European Design Double Girder Overhead Crane KSQ Model Frequency Inverter Control
Product Details
| Brand Name | Kuangyuan | Place of Origin | China | |
| Model Number | KS model | Certification | CE,ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 18months | |
| Application | General industry | Condition | New | |
| Max. Lifting Load | 20t | Span | / | |
| Rated Lifting Moment | / | Rated Loading Capacity | 20t | |
| Max. Lifting Height | 16m |
Product Description
Product Description:
KC Model wire rope hoist Henan Mine Crane M5 moderate class mine using

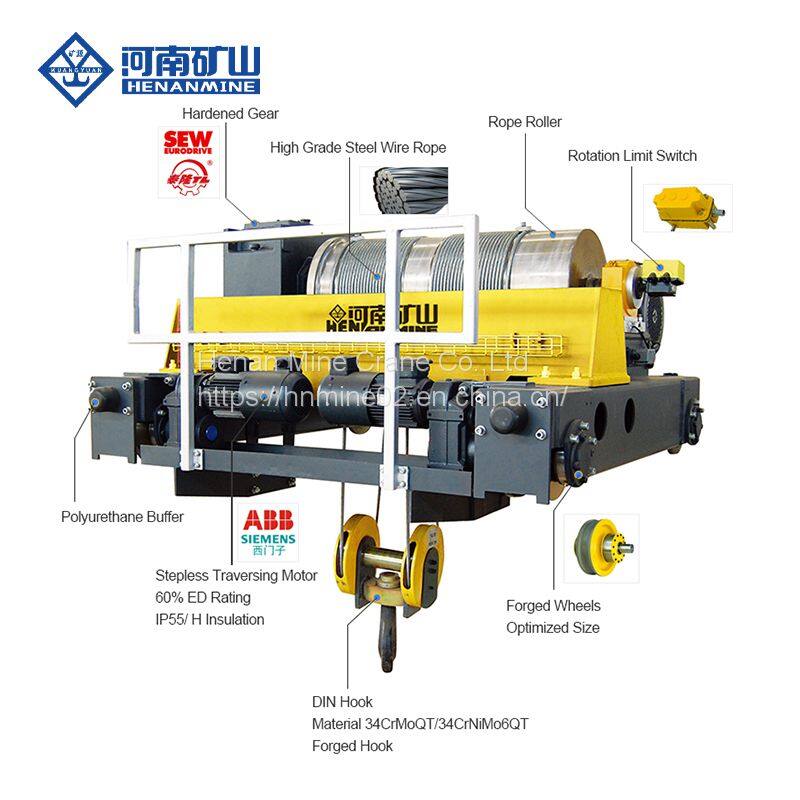

European design hoist from Henan Mine Crane is a new type wire rope hoist.It employs motor of hoisting mechanism and reducer imported from Germany.The integrated and compact design of hoisting motor,reducer,reel and limit switch saves space for the users.Modular design increases the reliability of mechanism meanwhile reduces the time and cost for maintaining.
It has more and faster hoist speed and various pulley ratio which can be selected. The standard traveling mechanism of trolley is controlled by converter,with speed of 20m/min,which makes a little swing and accurate position if hoisting items while trolley traveling as well as lifts precision and valuable items reliably.
The hoisting mechanism of European design hoist for single girder crane strictly carries out the relevant standards of FEM with aluminum alloy shell of reducer,steady running and low noise features,lift time lubricating(within safety service circle),and double-disk electromagnetic brake.
Configuration of protection:
1.Anti-collision device:
If several cranes travel on the same rails,the common resolutions refer to install contact anti-collision device so as to avoid sharp impact due to incorrect operation.Non-contact infrared sensor anti-collision device will be additionally installed to take double safety protection measure-sound and light alarm if running busily or under an important working environment.
2.Overload protection device:
If work with over load,it has safety devices with protection function including auto-stop lifting capacity limiter and weight display.
3.Electric protection:
It has complete equipments including main isolation switch,emergency disconnect switch,protection for short circuit,pressure loss,zero position,excitation loss,over current and over speed,which sufficiently implements conception of safety first.
Wireless anti-collision limiter: with infrared sensor limiter,it is sensible and reliable;
Braking security protection: electric brake and mechanical brake;
The traveling mechanism of crane and trolley has polyurethane buffer which relieves impact by absorbing motion energy and is easy to install and maintain,meanwhile,under important working condition,the hydraulic buffer also be selected to achieve the better performance;
Anti-collision sweep-rail plate,end stop blocks;install sweep-rail plate before the wheels of crane and trolley in order to remove foreign bodies on the rail and ensure the safety of traveling;Install end stop blocks at the traveling limit of crane and trolley,which is considered as force stopping methods if electric limit does not work in order that avoid derailing of crane.
Product specification:
| lifting capacity/t | lifting height/m | lifting speed(m/min) | traveling speed(m/min) | working class/FEM | working class/ISO |
| 1 | 6/9/12/18 | 0.8/5 | 5~20 | 4M | M3~M7 |
| 1.25 | 6/9/12/18 | 0.8/5 | 5~20 | 3M | |
| 1.6 | 6/9/12/18 | 0.8/5 ; 1.6/10 | 5~20 | 2~3M | |
| 2 | 6/9/12/18 | 0.8/5 ; 1.3/8 | 5~20 | 2~3M | |
| 2.5 | 6/9/12/18 | 1/6.3 ; 1.3/8 | 5~20 | 2~3M | |
| 3.2 | 6/9/12/18 | 0.8/5 ; 1/6.3 ; 1.6/10 | 5~20 | 2M/1AM | |
| 5 | 6/9/12/18 | 0.8/5 ; 1/6.3 | 5~20 | 2~3M | |
| 6.3 | 6/9/12/18 | 0.8/5 ; 1.3/8 | 5~20 | 1AM/4M | |
| 8 | 6/9/12/18 | 0.8/5 | 5~20 | 3M | |
| 10 | 6/9/12/18 | 1/6.3 ; 0.8/5 ; 0.66/4 | 5~20 | 1AM~3M | |
| 12.5 | 6/9/12/18 | 0.8/5 ; 0.6/4 ; 1/6.3 | 5~20 | 1AM/2M | |
| 16 | 6/9/12/18 | 0.6/4 | 5~20 | 2M | |
| 20 | 6/9/12/18 | 0.6/4 | 5~20 | 1AM |
