Home > Products > Brick Making Machinery > Small Type Semi-automatic Interlock Block Making Machine JF-QT5-15

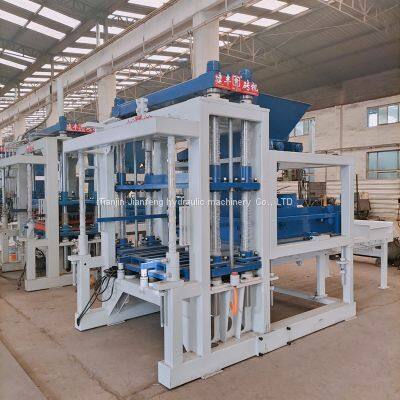

Small Type Semi-automatic Interlock Block Making Machine JF-QT5-15
- 1000 Set / Sets per Month
- tianjin
- T/T PayPal Cash Escrow
- 15 days
You May Like
-
Middle Type Fully-automatic Paving Brick Making Machine JF-QT7-15
-
Middle Type Fully-automatic Curbstone Brick Machine JF-QT6-15
-
Middle Type Fully-automatic Multi-functional Interlock Brick Machine JF-QT10-15
-
Hot Sale JianFeng Fully-automatic Multi-functional Solid Brick Machine JF-QT10-15
-
China Multi-functional Brick Making Machinery Manufacturer
Product Details
| Brand Name | Jianfeng | Place of Origin | China | |
| Model Number | JF-QT5-20A2 | Certification | ISO9001:2005 | |
| Type | Interlock Block Making Machine | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 12 month | Dimension(L*W*H) | 4300*1800*2500 | |
| Voltage | 380V | Power | 60KW | |
| Condition | New | Automatic | No | |
| Capacity | 32400 pcs for holland bricks | Method | Hydraulic Pressure | |
| Processing | Brick Molding Machine | Brick Raw Material | Crushed Stone |
Product Description
Main Technical Parameter | |||||
1 | Actuating shock force | 98KN | 7 | Installed capacity | 24.2KW |
2 | Frequency of shock | 6500(Time/Minute) | 8 | Weight of brick machine | 6T |
3 | Amplitude | 15mm | 9 | Maximum pressure | 10T |
4 | Noise | 95db(A) | 10 | Pallet size | 1100× 570× 22(mm) |
5 | Shock time | 8(Second/Time) | 11 | Operation number | 6 persons |
6 | Overall dimension | 6350×3350×3200(mm) | 12 | Area size | ≥3000 m2 |
Brick Type & Production | ||||
| Brick picture |
|
|
|
Standard brick 240* 115*53mm |
| 32 Pieces | 4800 Pieces | 20Second/Time |
Hollow brick 190*190*390mm |
| 5 Pieces | 900 Pieces | 20Second/Time |
Interlocking brick 225*112.5*60mm |
| 16 Pieces | 2880 Pieces | 20Second/Time |
Holland brick 200* 100*60mm |
| 18 Pieces | 3240 Pieces | 20Second/Time |
Multi-hole brick 240* 115*90mm | 16 Pieces | 2880 Pieces | 20Second/Time | |
Border stone 1000* 150*300mm |
| 1 Piece | 90 Pieces | 40Second/Time |
Small Type Semi-automatic Interlock Block Making Machine JF-QT5-15 Feature
1、Changing any molds can make different kinds of bricks and blocks.
2、Back and forth way of feeding forks guarantee feeding raw materials efficient and uniform.
3、Vibration combined with hydraulic pressure to ensure uniform density.
4、Forced mold synchronization, ensure consistent thickness, smooth demold, high yield.
5、Automatic operation for pallet sending,brick receiving,,vibrating and pressing.
