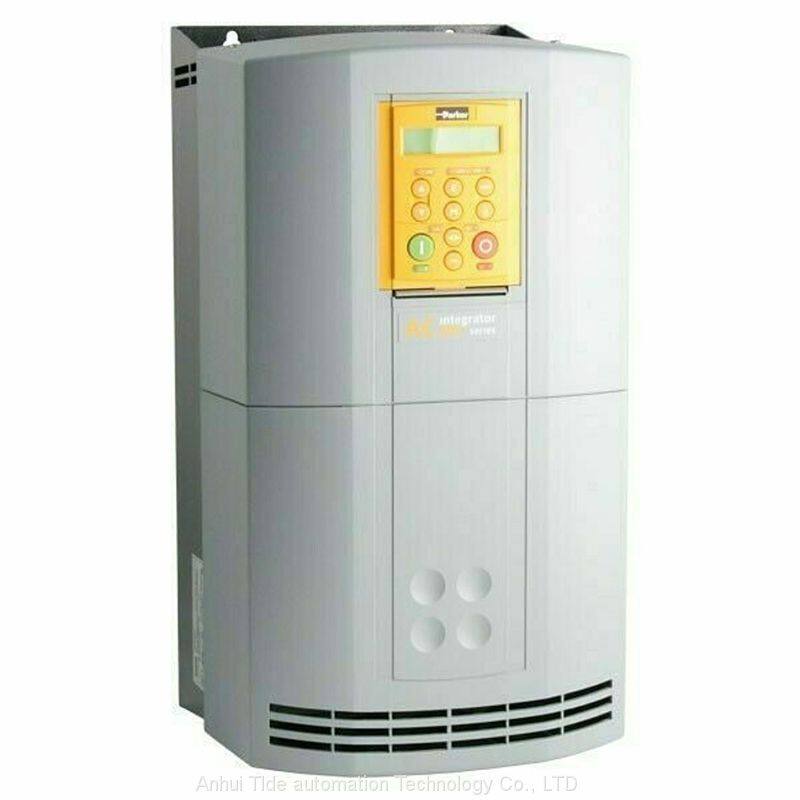

Parker AC 690+ Frequency Converter 690-432380D0-B00P00-A400 Speed Feedback Factory Sales

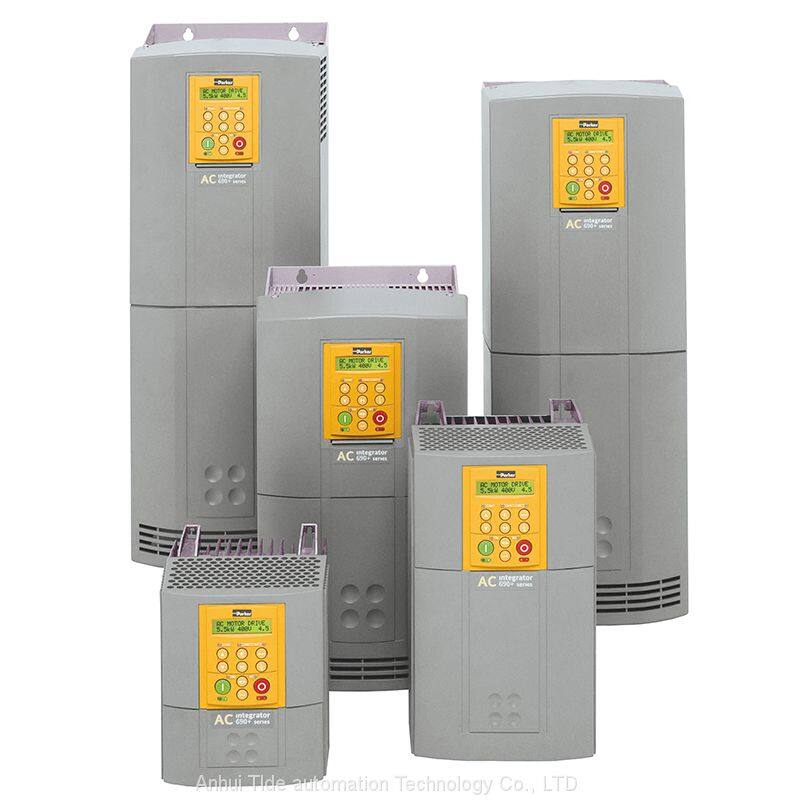

The Parker AC690 + Integrator series is a single family of AC drives designed to meet the requirements of variable speed applications ranging from simple single-motor speed control to more complex integrated multi-drive systems. At the heart of the AC690 + is an advanced motor control model based on a 32-bit microprocessor. This provides a dynamic performance platform that can add a large number of communication and control options, allowing you to customize the drive to meet your exact requirements. The AC690 + offers 380-460V three-phase 1 to 1500 HP and 220V to 240V 1 to 75 HP.

Features:

The AC690 can be configured by the user to operate in 3 different modes:

Open loop (V/frequency) control

This mode is ideal for basic motor speed control or multiple motors driven in parallel. Quick setup menus and simple language displays enable faster, simpler, trouble-free booting.

Sensorless vector control

High starting torque and strict speed regulation with the most advanced MRAS (Model Reference Adaptive System) motor control strategy. MRAS provides speed simulation by continuously modeling the motor (without any speed measurement sensors).

Closed loop vector control

Closed-loop flux vector performance can be achieved with the AC690 + by simply adding an encoder feedback "technology box". This provides continuous full-load static torque plus a high dynamic speed loop (up to 45 Hz bandwidth); Sufficient for more demanding applications.

Advantages:

Pre-programmed application macros

Open standard fieldbus communication

Programming is the same as the DC 590+ DC drive

Mechanical protection options for the environment: IP 20-IP40 / NEMA 1-IP54 - mounted via panel

Class B EMC filter

Energy saving (quick return on investment for pump and fan applications)

Line regeneration AFE device available

The HVAC series is available with line bypass

Standard:

When installed in accordance with the relevant product manuals, the AC690 + series meets the following standards:

CE mark EN50178 (Safety, Low voltage instruction)

CE mark EN61800-3 (EMC Directive)

UL complies with the US standard UL508C

cUL is listed in Canadian standard C22.2 # 14

Technical specifications:

Power Supply:

Single-phase unit

-220-240VAC +/ -10%, 50-60 Hz +/ -5% (1 to 3HP)

Three-phase cell

- 220-240VAC +/ -10%, 50-60 Hz +/ -5% (1 to 75HP)

-380-460VAC +/ -10%, 50-60 Hz +/ -5% (1 to 1500HP)

Setting:

0-45°C (constant torque / 40°C, IP40 cap/derated to 50°C)

Up to 1000 m ASL (1% reduction for every 100 m above 1000 m)

Protection:

IP 20 - IP40 / NEMA 1 - IP54

Overload:

Constant torque rating: 150% for 60 seconds, 180% for 1 second

Variable torque rating (pump and fan) : 115% for 10 seconds

Output frequency:

Volt/Hertz mode: 0-590Hz

Sensorless vector mode: 0-120Hz

Closed loop vector mode: 0-300Hz

Switching frequency:

Frames B = 3,6 or 9kHz/Frames C, D, E and F = 3 or 6kHz - all with audible mute switching frequencies.

Dynamic braking:

Each drive can be equipped with an internal dynamic brake switch

(Frames B and C: standard/Frames D, E and F: optional)

Analog input:

4 configurable, 10 bit (13 bit, with optional system card) / 0-10V, 0-±10V, 0-20mA, 4-20mA

Analog output:

3 Configurable, 10-bit / 0-10V, 0-±10V, 0-20mA, 4-20mA

Digital input:

7 Configurable, nominal 24Vdc (larger 30V dc)

Digital output:

3 Configurable relay contacts 3A / 230 Vac

Reference supplies:

+ 10Vdc, -10Vdc, + 24Vdc

Motor thermistor input

System expansion module:

Optional system expansion modules allow for advanced applications such as phase locking

Between drive and register control. The main functions include:

5 additional user configurable inputs/outputs

4 high resolution analog inputs (12-bit plus sign)

2 additional encoder inputs

2 high speed alignment marker inputs

Encoder slave repeater

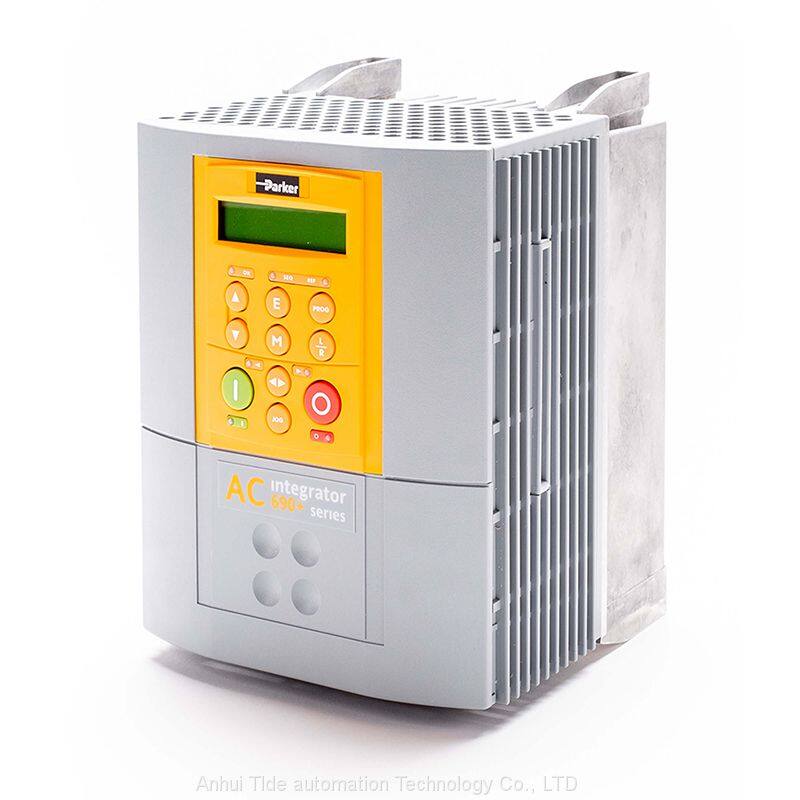

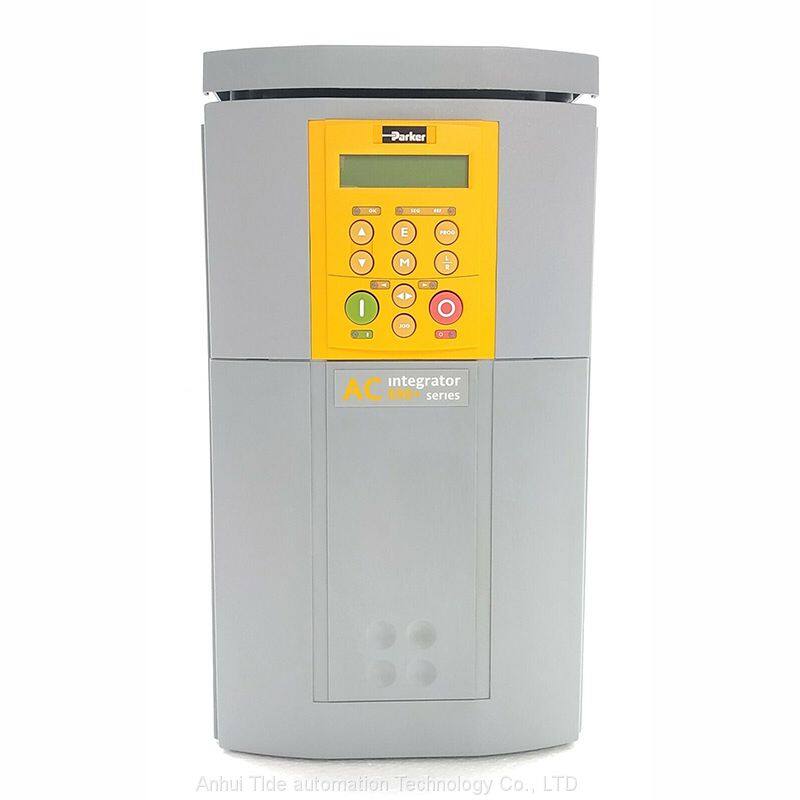

parker AC690+ Series AC Inverter Model:

690PB/0007/400/3/F/0011

690-431250B0-BF0P00-A400

690PB/0015/400/3/F/0011

690-431450B0-BF0P00-A400

690PB/0022/400/3/F/0011

690-431550B0-BF0P00-A400

690PB/0040/400/3/F/0011

690-431950B0-BF0P00-A400

690PB/0055/400/3/F/0011

690-432120B0-BF0P00-A400

690PB/0007/400/3/0/0011

690-431250B0-B00P00-A400

690PB/0015/400/3/0/0011

690-431450B0-B00P00-A400

690PB/0022/400/3/0/0011

690-431550B0-B00P00-A400

690PB/0040/400/3/0/0011

690-431950B0-B00P00-A400

690PB/0055/400/3/0/0011

690-432120B0-B00P00-A400

690PC/0075/400/0011 B0

690-432160C0-B00P00-A400

690PC/0110/400/0011 B0

690-432230C0-B00P00-A400

690PC/0150/400/0011 B0

690-432300C0-B00P00-A400

690PC/0150/400/0011 B0

690-432310D0-B00P00-A400

690PD/0180/400/0011 B0

690-432380D0-B00P00-A400

690PD/0220/400/0011 B0

690-432450D0-B00P00-A400

690PD/0300/400/0011 B0

690-432590D0-B00P00-A400

690PE/0370/400/0011 B0

690-432730E0-B00P00-A400

690PE/0450/400/0011 B0

690-432870E0-B00P00-A400

690PF/0550/400/0011 B0

690-433105F2-B00P00-A400

690PF/0750/400/0011 B0

690-433145F2-B00P00-A400

690PF/0900/400/0011 B0

690-433156F2-B00P00-A400

690PG/1100/400/0011 B0

690+0175/400/CBN/UK

690PG/1320/400/0011 B0

690+0200/400/CBN/UK

690PG/1600/400/0011 B0

690+0250/400/CBN/UK

690PG/1800/400/0011 B0

690+0300/400/CBN/UK

690PH/2000/400/0011 B0

690+0325/400/CBN/UK

690PH/2200/400/0011 B0

690+0350/400/CBN/UK

690PH/2500/400/0011 B0

690+0400/400/CBN/UK

690PH/2800/400/0011 B0

690+0450/400/CBN/UK

690PJ/3150/400/0011 B0

690+0500/400/CBN/UK

690PD/0150/400/0011

690-432310D0-000P00-A400

690PD/0180/400/0011

690-432380D0-000P00-A400

690PD/0220/400/0011

690-432450D0-000P00-A400

690PD/0300/400/0011

690-432590D0-000P00-A400

690PE/0370/400/0011

690-432730E0-000P00-A400

690PE/0450/400/0011

690-432870E0-000P00-A400

690PF/0550/400/0011

690-433105F2-000P00-A400

690PF/0750/400/0011

690-433145F2-000P00-A400

690PF/0900/400/0011

690-433156F2-000P00-A400

690PG/1100/400/0011

690+0175/400/CNN/UK

690PG/1320/400/0011

690+0200/400/CNN/UK

690PG/1600/400/0011
