CZF-110A marine axial ventilation fan

4.Working conditions

Medium temperature: -25℃ ~ +50℃
Max relative humidity: 95%
Periodical swing:±22.5°
Continued transversal incline:±15°
Continued longitudinal incline:±10°
Vibration: existent
Impact: existent

5.Model explanation

　The models of fans are expressed by the first letter of the Chinese phonetic name, the outer diameter of the vane wheel, the power and the rotational speed of the motor ,etc.

For example:

CZF-110A/7.5----970

Where：

C-for marine or navy

Z-axial flow ventilator

F-fan

A-impleller code

110-the outer diameter of the vane wheel 110cm

7.5-the power of motor 7.5kw

970-the standard rotational speed 970r/min(50Hz)

6.MAIN PROPERTY PARAMETER

Model Size：CZF-110A

Air Flow Rate：36000-63000 m3/h；

Total Pressure：275-540 Pa；

Static Pressure：140-450 Pa；

Power：7.5/11KW；

Speed：970/1160 r/min；

Voltage：380/440V；

Frequency:50/60Hz

Protection Grade：IP56；

Insulation Class：F；

7.Outline dimensions:

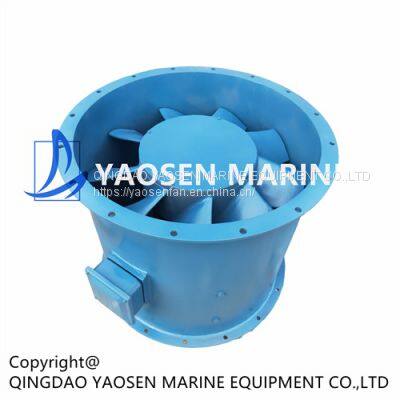

8.Physical photograph
