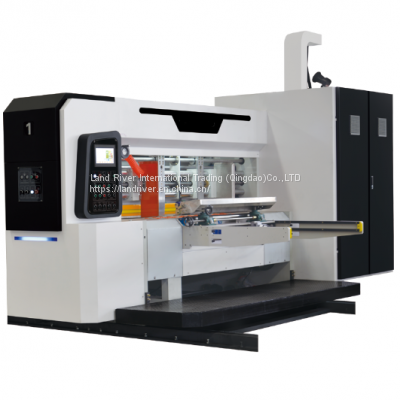

printing slotting die cutting machine corrugated carton box making plant
US$ 180000 - 350000
/ Set
1 Set(Min. Order)
- Qingdao China
- T/T
You May Like
-
Automatic Flexo Printing Slotting and Die Cutting Carton Box Making Machine
-
automatic box folder gluer machine,carton box printing slotting die cutter
-
automatic flexo printing slotting die cutting folding gluing carton box machine
-
Carton Box Making MachineFull Automatic Carton Box Equipment SGS CE
-
Packaging Carton Box Making Machine Molding , Printer Folder Gluer
-
China High Quality In-line Automatic Carton Box Making Machine
Product Details
| Brand Name | Land River | Place of Origin | China | |
| Model Number | SYKM Series | Certification | ISO9001 | |
| Type | Other, Printing slotting machine | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | One Year | Weight | Customized | |
| Dimension(L*W*H) | Customized | Condition | New | |
| Voltage | Customized | Power(W) | Customized | |
| Computerized | Yes |
Product Description
_________________________________________________
§ About Us §
_________________________________________________
1.We are the professional manufacturer of package printing machinery with more than 30 years production experience.
2.In the same industry of China, we are the first through the ISO9001 certification.
3.Our Products sell well in more than 20 provinces and cities nation-wide, also in Western Europe,South America and other countries.
2.In the same industry of China, we are the first through the ISO9001 certification.
3.Our Products sell well in more than 20 provinces and cities nation-wide, also in Western Europe,South America and other countries.
__________________________________________________________________
§ Native Advantage §
__________________________________________________________________
__________________________________________________________________
High precision, High efficiency and High speed carton manufacturing era has come,so HOW to make it come true?Through the efforts of all workers,we succeeded in finding a new direction------High Efficient Automatic Carton Box Production Line.
This production line includes three units:Printing Slotting Die-cutting Unit, Folding Gluing Unit,Stacking Unit(optional).
It is a complete carton box production line,and this high efficient line also can absolutely make your carton manufacturing process more automated and intelligent, and have the advantages of high efficiency, economy, environmental protection, etc.
This production line includes three units:Printing Slotting Die-cutting Unit, Folding Gluing Unit,Stacking Unit(optional).
It is a complete carton box production line,and this high efficient line also can absolutely make your carton manufacturing process more automated and intelligent, and have the advantages of high efficiency, economy, environmental protection, etc.
____________________________________________________________
§ The Line Features §
____________________________________________________________
1.This machine is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.§ The Line Features §
____________________________________________________________
2.Computerized control,order setting in touch screen.
3.The Folding Section adopts belt transfer system assisted with vacuum suction,to make best transfering and folding quality
4.The Gluing Section adopts U.S.A VALCO high speed auto-sensor glue spray system
5.The correction device in the Countering Section can conquer the fish-tail,makes the carton even
6.The quantity of bundle come out from the Counter Ejector can be set in touch screen
7.All electronic and pneumatic components are with European standards
_______________________________________________________________
§Detailed Description§
_______________________________________________________________
№1 Printing Slotting Die-cutting Unit
1.Computer order storage and adjustment,faster order update and convenient operation.
2.Complete machine wallboard and other important pieces are all made by high precision process center and grinded by digi-controlled grinder.
3.All the transmission axle and rollers are made of high-quanlity steel with high-precision gynamic balance,plated with figid chrome and grinded surface.
4.The transmission gear adopts the high-quality steel,which is grinded after heat-treatment,after long use,it still maintains the high topping precision.
5.The main machine transmission part adopts the hand-free connection ring to eliminate the interval,suitable for long-term high speed printing.
6.The whole machine undergoes the spray lubrication and is equipped with engine oil automatic balance facilities.
7.It possesses the print,die-cutting,slotting memory function,which could return to Zero and Re-set automatically.
8.PCLINK control network,MCGS software,Siemens low voltage electric appliance and host frequency conversion control,30% electricity saving.
9.Double axle slotting to configure whole machine production management computer control system.
10.Customer can choose to use steel anilox roller or ceramic roller,the lines of the anilox roller ac so can be choosed according to the customer's use.
@Technical parameters
| Model | 410 | 480 | 530 |
| Color Group | AS customized | ||
| Printing Paper | A,B,C,A/B,B/C,A/B/C | ||
| Production Speed | 150pcs/min | 150pcs/min | 120pcs/min |
| Economy Speed | 0-120pcs/min | 0-120pcs/min | 0-100pcs/min |
| Max. Paper Sizes | 900~1200 ×2600mm | 1200~1450 ×3000mm | 1400~1600 ×2600mm |
| Min. Paper Sizes | 350×680mm | 380×680mm | 380×680mm |
| Max. Printing Sizes | 1200×2400mm | 1450×2700mm | 1600×2200mm |
| Max. Die-cutting Size | 1200×2550mm | 1400×2950mm | 1600×2550mm |
| Standard Printing Plate Thickness | 4~9mm | 4~9mm | 4~9mm |
| Slotting Width | 2~12mm | 2~12mm | 2~12mm |
| Max. Slotting Depth | 320mm | 320mm | 380mm |
| Min. Slotting Space | 160×160×160×160mm 300×60×300×60mm | 160×160×160×160mm 300×60×300×60mm | 160×160×160×160mm 300×60×300×60mm |
| Printing roller Dia. | 300mm | 408mm | 408mm |
