250℃ High Temp HEPA Filter
- Qingdao Port
- T/T
You May Like
-
AC Motor Fan Filter Unit for Cleaning Room
-
Cleanroom 304 Stainless Steel Pass Box With UV Germicidal Lamp Interlock System
-
Single Person Double Sides Flow Stainless Steel Air Shower
-
Cardboard Frame Primary HVAC Panel Pleated Pre Air Filter With Mesh Grid
-
Galvanized Steel Frame Primary Pleated Washable Pre Air Filter
-
Aluminum Frame Polyester Fiber Washable Filter
Product Details
| Brand Name | SNYLI | Place of Origin | China | |
| Dimension(L*W*H) | 305×610×292mm | Condition | New | |
| Efficiency | H13,H14 | Medium Material | Fiberglass | |
| Filtration Grade | Hepa Filter | Construction | Panel Filter |
Product Description

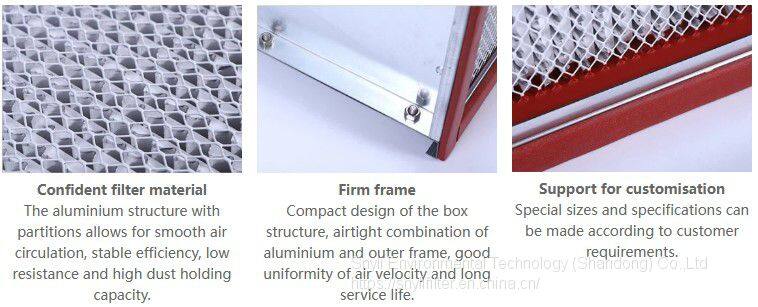

The 250℃ High Temp HEPA filters are constructed with 304 stainless steel frame,designed with Aluminium
Separator. The high temp media is completely pleated over corrugated aluminium separators to maintain pack
stability. The interlock design of frame with silicon sealant in the top and bottom to assure leak free performance
throughout the life of the filter.
Advantages
? Control airflow under high humidity
? Hammed edges eliminate possible pleat damage
? Extend life span with low initial resistance
Characteristics
Frame: Galvanized, Aluminum & Stainless Steel
Header: Box type, Single/Double header
Media: High temp resistance Glass fiber
Efficiency:
H13 (EN 1822) / MERV 17-18 (ASHRAE 52.2)
MPPS: ≥99.95% / DOP: ≥99.99%@0.3 μm
H14 (EN 1822) / MERV 19 (ASHRAE 52.2)
MPPS: ≥99.995% / DOP: ≥99.999%@0.3 μm
Separator: Aluminum foil
Sealant: Silicon / Ceramic adhesive
Max operating Temperature: ≦ 250°C
Max Peak Temp: ≦ 300°C
Max. Humidity: ≦ 100% RH
Applications
The High temp air filters are often used in the final exhaust port of radioactive waste burning furnace and hot air
drying places with high purity in semiconductor industry, glue industry, medicine and so on.
