11-in-1 Thunderbolt/USB4 Intelligent Docking Station

　　PURPLELEC INC. provides Existing product line: Docking Station and HUBs, HDD / SSD Enclosure, Video Capture Card, Game Capture Card，Live streaming Capture Card and other professional 3C accessories products.You can email to me at contact@purplelec.com.

　　11-in-1 Thunderbolt/USB4 intelligent docking station, extremely fast transmission rate up to 40Gbps, sunscreen plastic + iron bottom shell appearance, even the arc is just right, slender and compact shape, skin-friendly texture, easy to carry, support 8K HD screen projection (support dual 4K HD screen projection, can output two interfaces at the same time, can be the same screen or split screen, the field of vision is wider, expand the split screen convenient office, connect to TV projector / monitor and other office meetings easy display), support PD3.0 fast charging protocol, support lightning / USB4 protocol, extremely fast transmission rate up to 40Gbps, all USB interfaces use U disk, mobile hard disk, wireless mouse and other related USB storage devices to transmit data with computers and mobile phones。

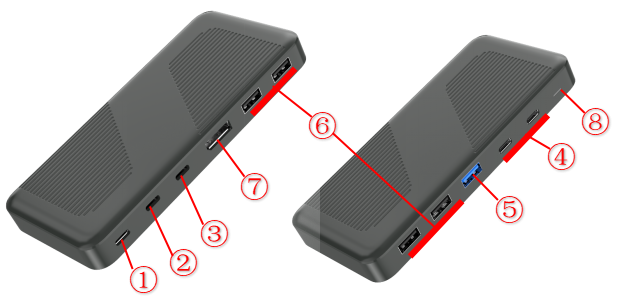

　　1、① 1*TYPE-C PD port, power input, support PD3.0 protocol, support PD 100W/65W DC: 20V/3.25A~5A;

　　2、② 1*TYPE-C Thunderbolt/USB4 upstream port with a maximum transfer rate of 40Gbps (and backward compatible with USB3.2/USB3.2/USB3.0). Support for Alt DP 1.4. Support PD3.0 protocol, can charge uplink computer or mobile phone, up to 60W charging, dynamic withholding. Can be used as a downstream port, support Thunderbolt/USB4 maximum transmission rate of 40Gbps, support TYPEC video output MAX: 3840*2160p/30Hz;

　　3、③ 1*TYPE-C Thunderbolt/USB4 upstream port with a maximum transfer rate of 40Gbps (and backward compatible with USB3.2/USB3.2/USB3.0). Support for Alt DP 1.4. Support PD3.0 protocol, can charge uplink computer or mobile phone, up to 60W charging, dynamic withholding. Can be used as a downstream port, support Thunderbolt/USB4 maximum transmission rate of 40Gbps, support TYPEC video output MAX: 3840*2160p/30Hz;

　　4、④ 2*TYPE-C USB3.0 port, the maximum transmission rate is 5Gbps, (backward compatible with USB2.0), power 5V/1.5A；

　　5、⑤ 1*USB3.0-A port with a maximum transfer rate of 5Gbps (backward compatible with USB 2.0). Power 5V/0.9A;

　　6、⑥ 4*USB2.0-A port, maximum transmission rate: 480Mbps. Power 5V/0.5A;

　　7、⑦ 1*DP port, support video resolution refresh rate 7680x4320@60Hz, backward compatible: 3840x2160@30Hz (need to monitor and computer support);

　　8、⑧ Power LED;

　　Compatibility：

　　Apple MacBook Pro(2015/2016/2017/2018/2019);Surface Pro (windows 10), 18362.1016；Asus Zen Book (windows 10), 18362.418

　　Operating System：

　　Mac OS X 10.X and future releases. Windows 8/10 32 and 64 bit and future releases，Linux、Android
