Latest New Gear Belt Esd Magazine Factory in China Smt Pcb Magazine Racks
- ningbo
 - T/T
 - 7 days

You May Like
-


Wholesale Aluminum Base Boards Smt Esd Pcb Storage Magazine Racks Supplier Factory
 -


Esd Smt Pcb Magazine Rack , Antistatic Pcb Storage Racks for Smt Line
 -


Smt Esd Pcb Magazine Rack Slot Stopper , Esd Stop Clips for Pcb Magazine
 -


ESD Circulation Box Component Box With Cover/door
 -


Antistatic Esd Chair With Foot Rest
 -


China Esd Smt Pcb Magazine Rack Manufacturer Supplier 25 YEARS

Product Details
| Brand Name | CONCO | Place of Origin | China | |
| Model Number | COP-809 belt | After-sales Service Provided | No overseas service provided |
Product Description

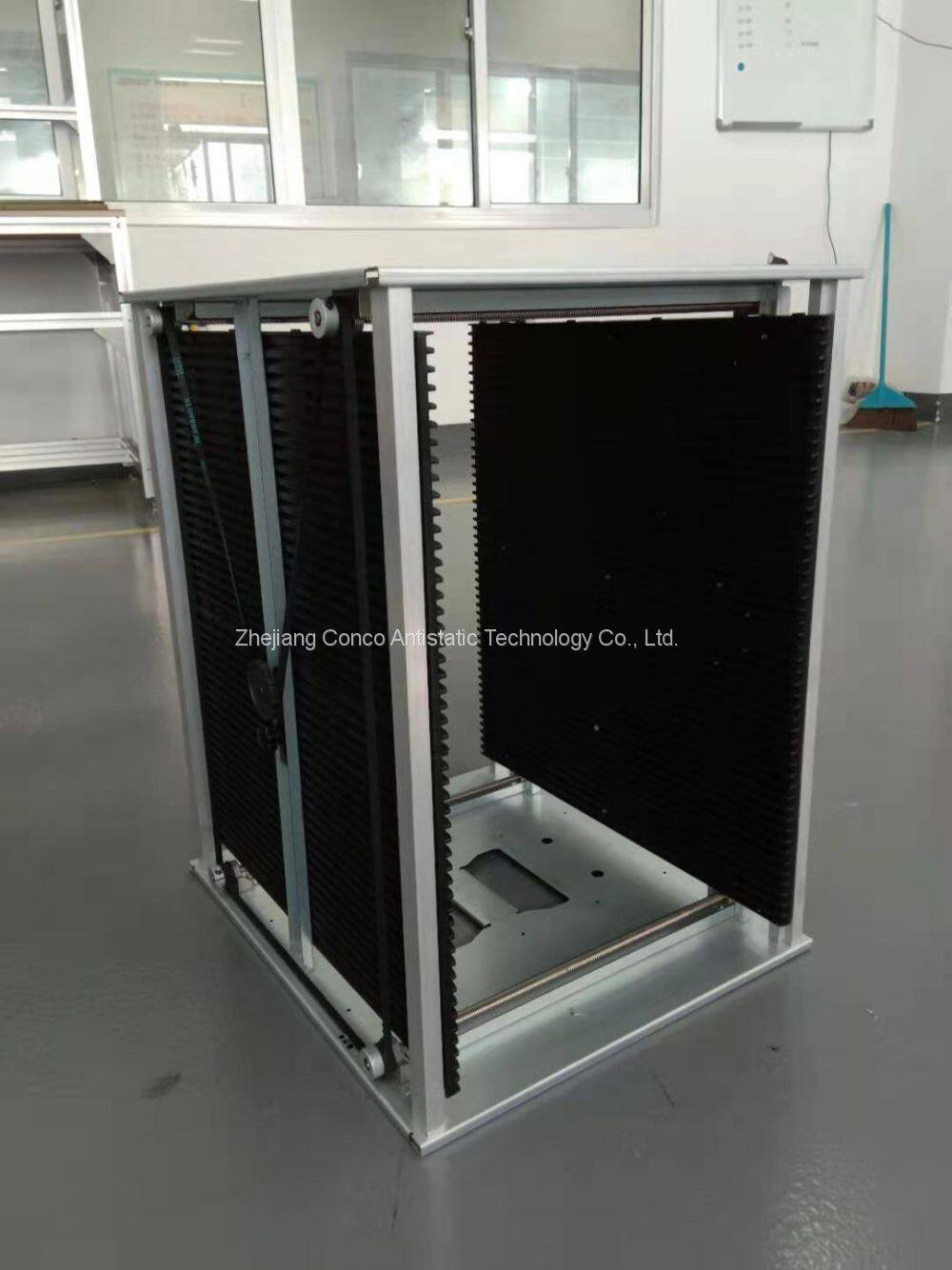

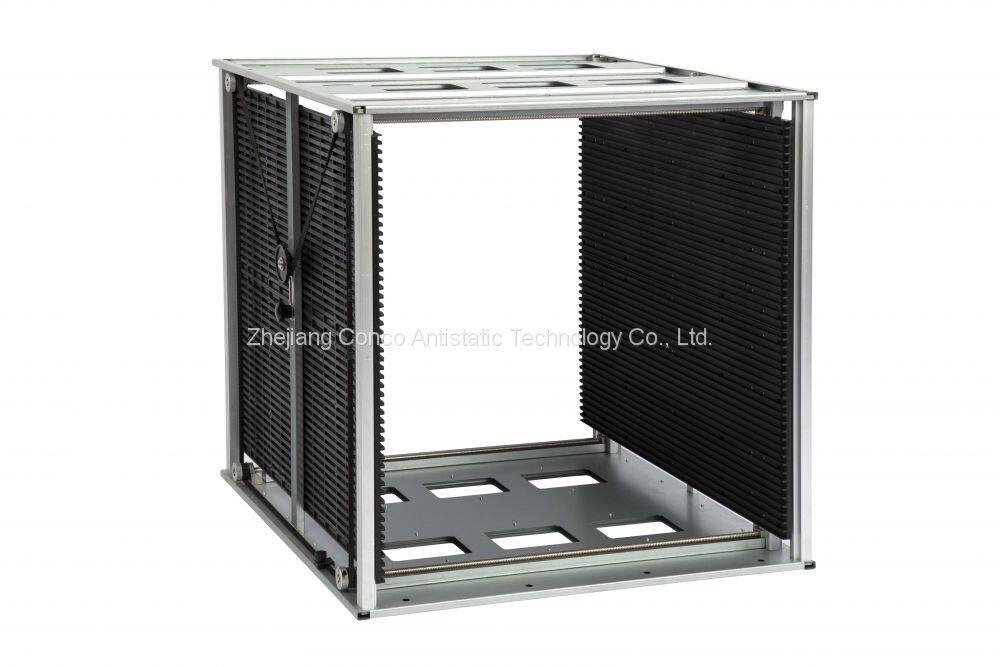

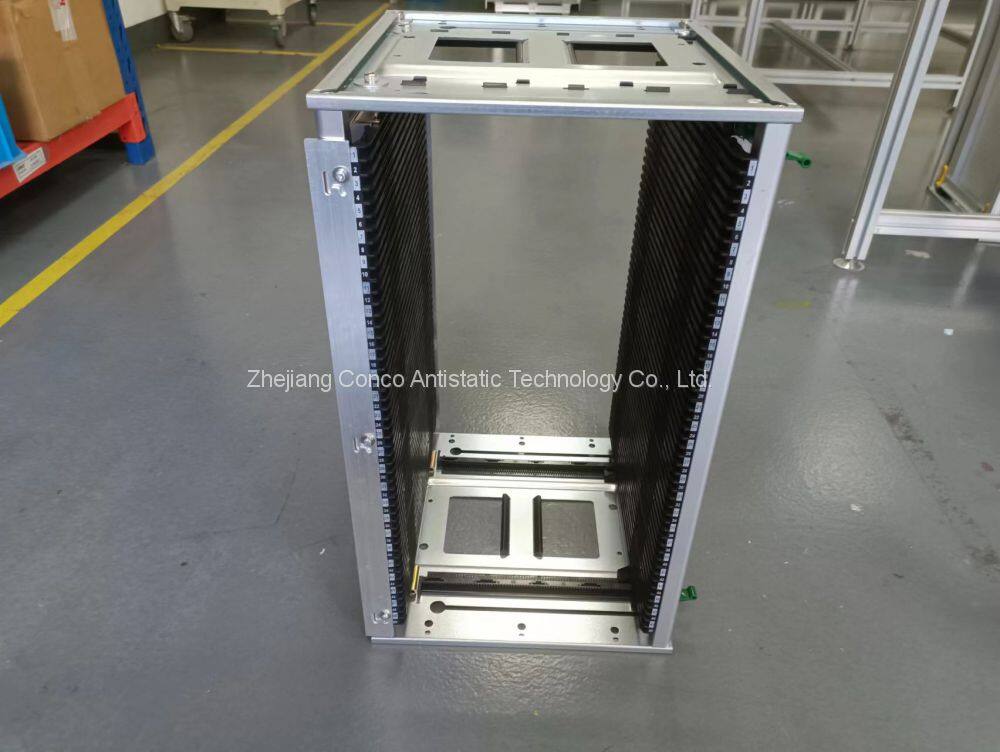

535 x 530 x 563 mm belt adjustment smt pcb magazine rack for pcba assembly
Specification
| Name | ESD pcb magazine rack cop-815 |
| Surface resistance | 104~106 Ω |
| Temperature resistance | 80° C |
| Overall size | 535 x 530 x 563 mm |
| Storage capacity | 50 pieces of PCB |
| Specifications | 535 x (0-460)mm |
| Side guide slot | depth 4mm, width 5mm, pitch 10mm |
| The top and bottom boards | made of metal |
| Panels material | conductive plastic panel |
| Packing detail | 1pcs into 1 carton , 40 cartons into a wooden case (size 1.2*1.16*1.34m) |

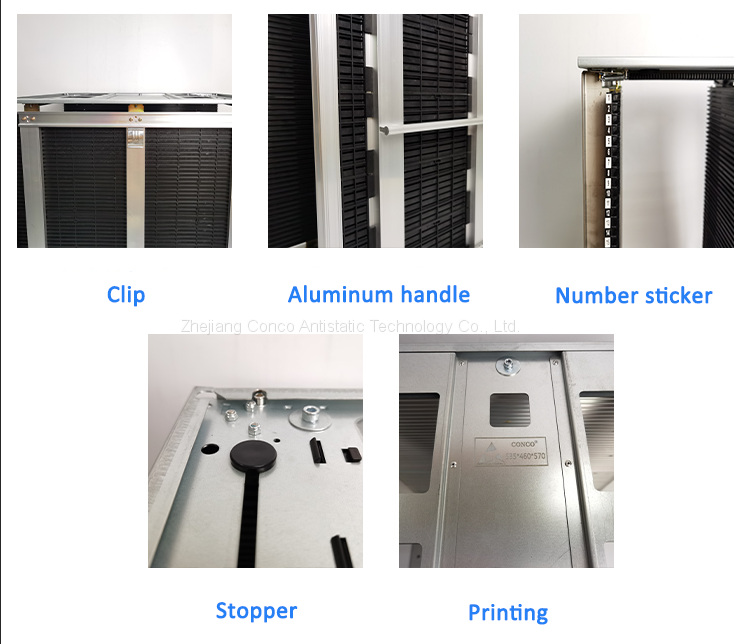

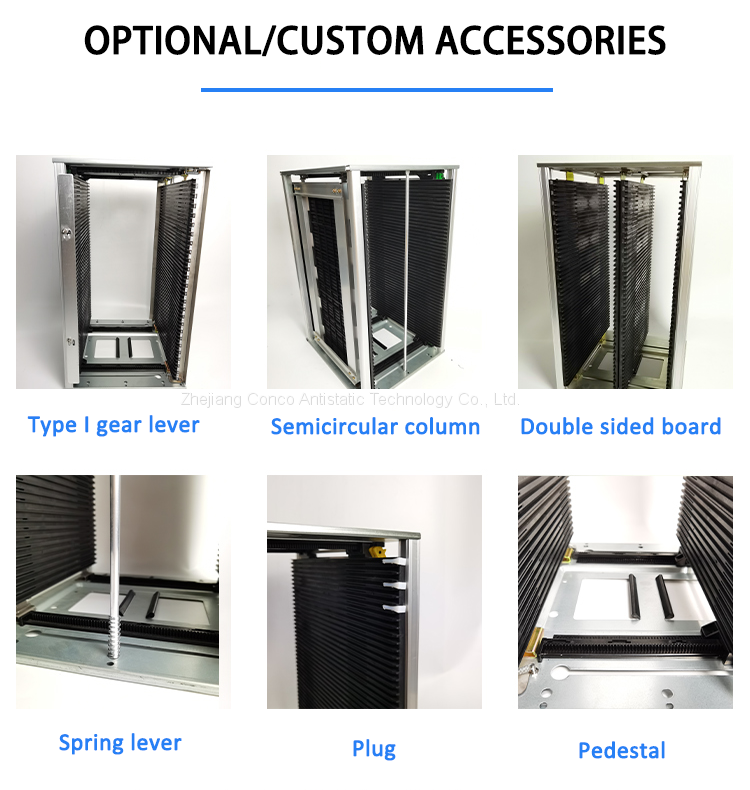

Additional accessories can supply :

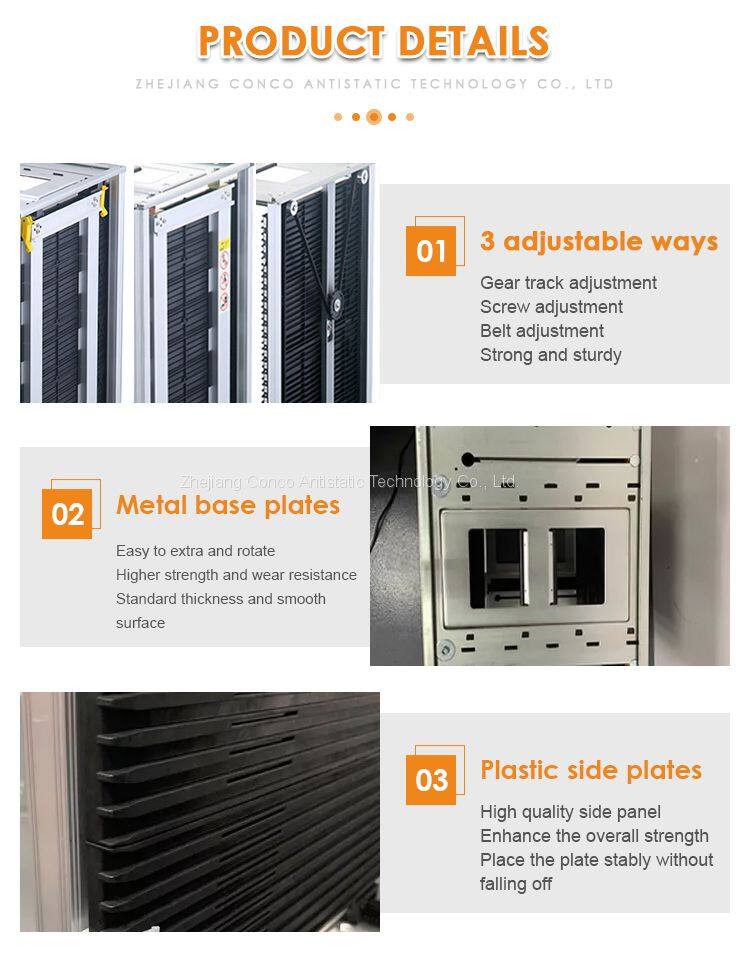

Product features:

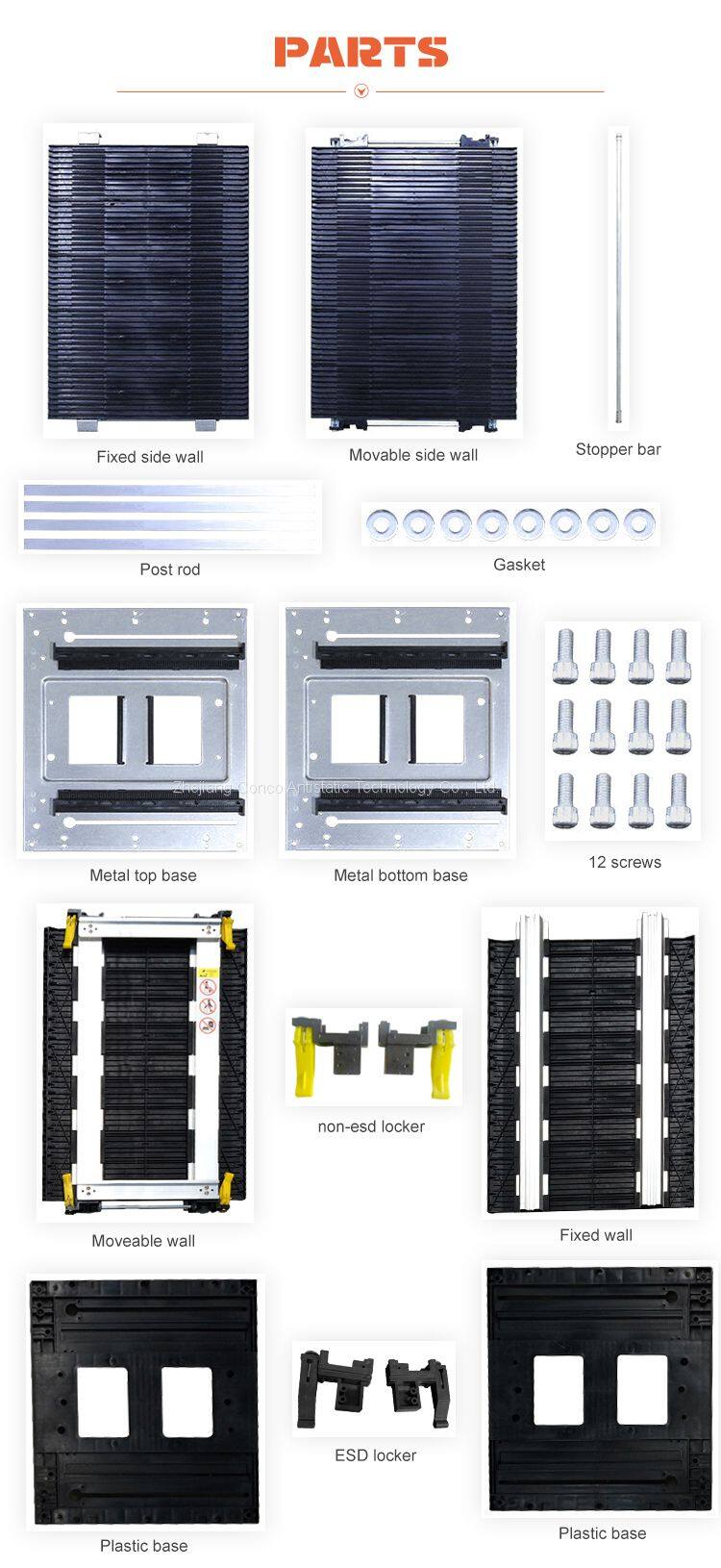

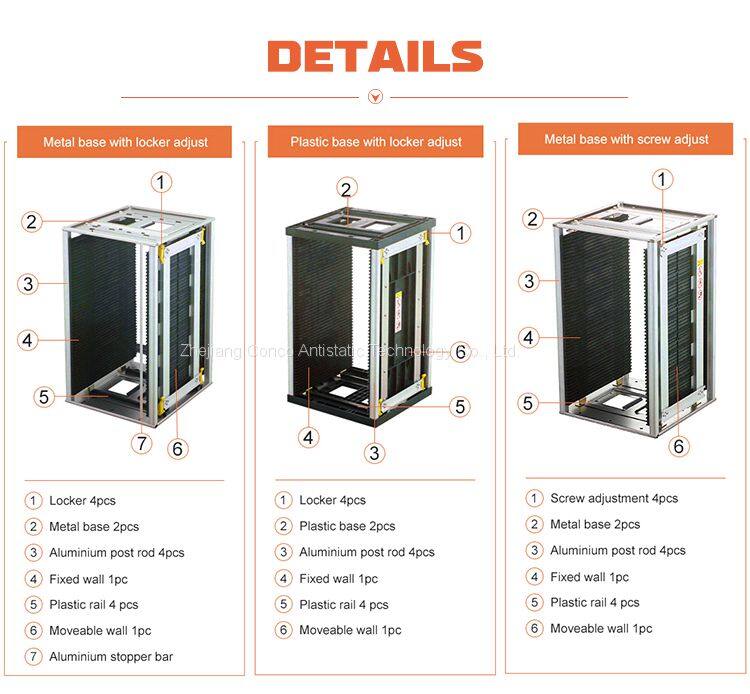

Smt esd pcb magazine rack is made of aluminum alloy column, side panel, The adjustable coupling drive set, static material four parts
our products can bear high strength , quality original materials & anti-aging .

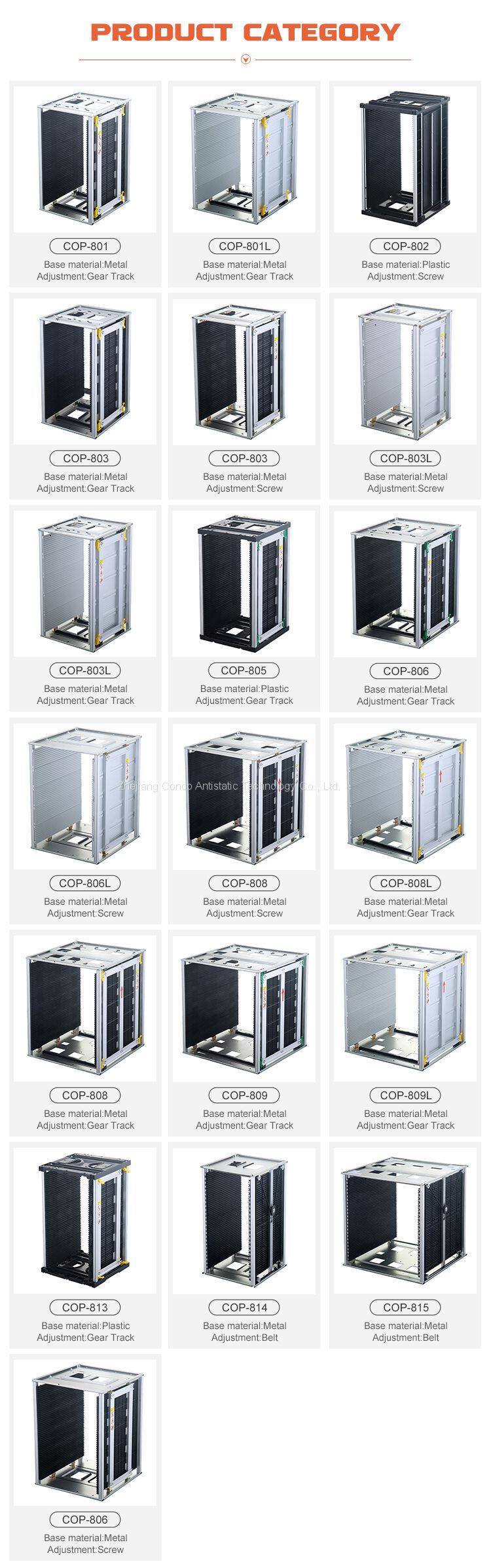

other models:
| SKU. | Outer dimension (mm)  | Adjust way | Adjustable width(mm) | Weight(kg) | Ref.position | Base material | Side board material  | Quantity of PCB Capacity  | Max Tolerant Temperature (℃)  | |||||
| L | W | H | Gear track adjustment | Screw adjustment | Belt  adjustment  | A | B | |||||||
| COP-801 | 400 | 320 | 563 | √ | √ | 50-250 | 6.9/6.7 | 34 | 34 | Metal | plastic | 50 | 80/120/200 | |
| COP-801L | 400 | 320 | 563 | √ | √ | 50-250 | 8.8/8.6 | 34 | 34 | Metal | Aluminum | 50 | 300 | |
| COP-802 | 355 | 315 | 580 | √ | 80-250 | 5 | 34 | 34 | Plastic | plastic | 50 | 80 | ||
| COP-803 | 355 | 320 | 563 | √ | √ | √ | 50-250 | 5.7/5.5/8.2 | 34 | 34 | Metal | plastic | 50 | 80/120/200 |
| COP-803L | 355 | 320 | 563 | √ | √ | 50-250 | 7.4/7.2 | 34 | 34 | Metal | Aluminum | 50 | 300 | |
| COP-805 | 355 | 320 | 563 | √ | √ | 50-250 | 4.2/4.0 | 34 | 34 | Plastic | plastic | 50 | 80 | |
| COP-806 | 460 | 400 | 563 | √ | √ | √ | 50-330 | 7.7/7.5/11.2 | 34 | 34 | Metal | plastic | 50 | 80/120/200 |
| COP-806L | 460 | 400 | 563 | √ | √ | 50-330 | 9.8/9.6 | 34 | 34 | Metal | Aluminum | 50 | 300 | |
| COP-807 | 460 | 400 | 563 | √ | √ | 50-330 | 8.2/8.0 | 34 | 34 | Metal | plastic | 50 | 80/120/200 | |
| COP-807L | 460 | 400 | 563 | √ | √ | 50-330 | 10.4/10.2 | 34 | 34 | Metal | Aluminum | 50 | 300 | |
| COP-808 | 535 | 460 | 569 | √ | √ | √ | 50-390 | 10.3/9.9 | 34 | 34/40 | Metal | plastic | 50 | 80/120/200 |
| COP-808L | 535 | 460 | 569 | √ | √ | 50-390 | 11.5/11.3 | 34 | 34/40 | Metal | Aluminum | 50 | 300 | |
| COP-809 | 535 | 530 | 569 | √ | √ | √ | 50-460 | 12.3/11.9/13.4 | 34 | 34/40 | Metal | plastic | 50 | 80/120/200 |
| COP-809L | 535 | 530 | 569 | √ | √ | 50-460 | 13.5/13.2 | 34 | 34/40 | Metal | Aluminum | 50 | 300 | |
| COP-810 | 630 | 530 | 563 | √ | √ | √ | 50-460 | 14.0/13.6 | 34 | 34 | Metal | plastic | 50 | 80 |
