The Original Parker 590P/110A DC Drive Has Sufficient Inventory of 590P-53311020-P0-U4A0. Welcome to Inquire.

Product Description

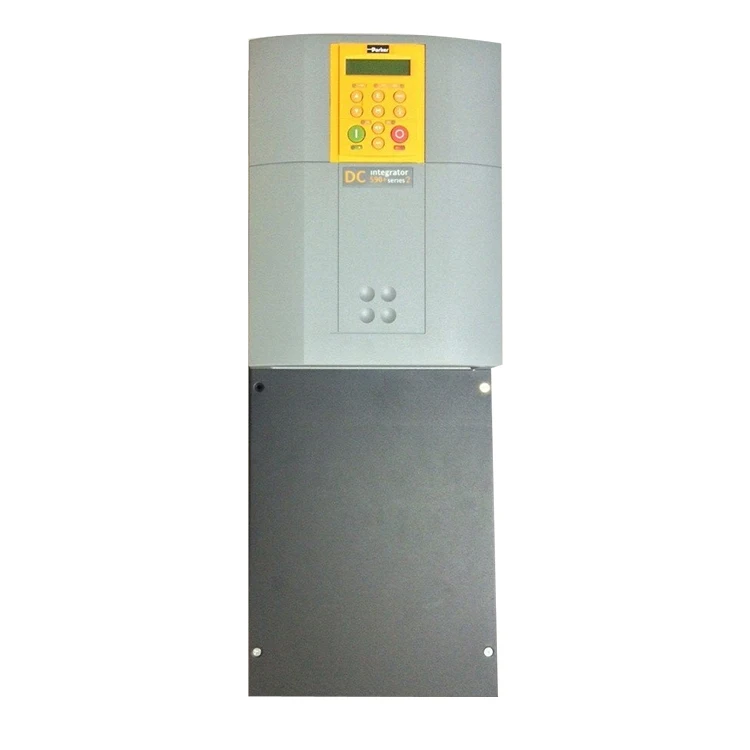

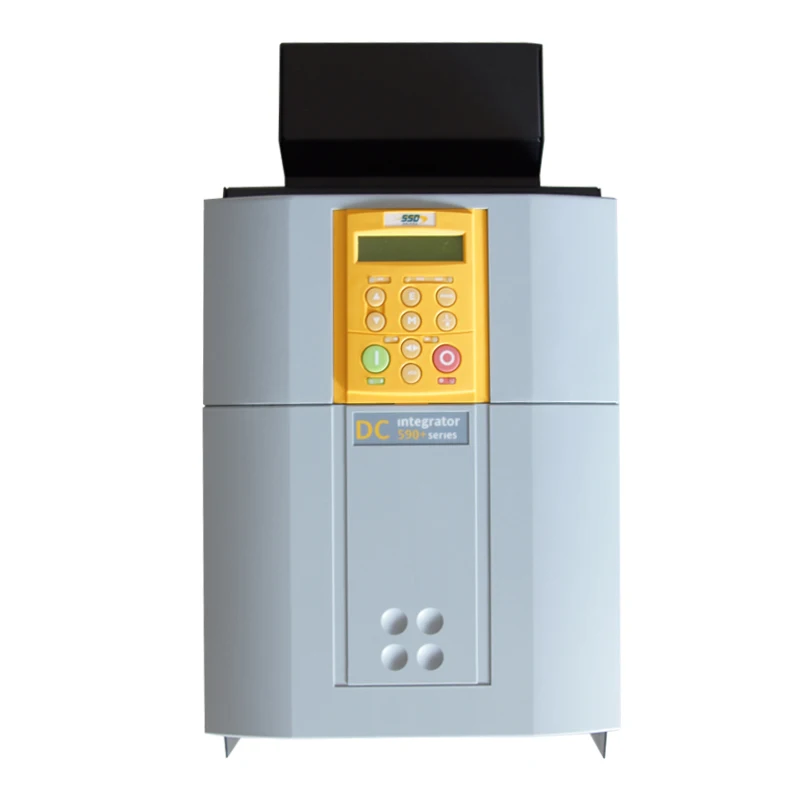

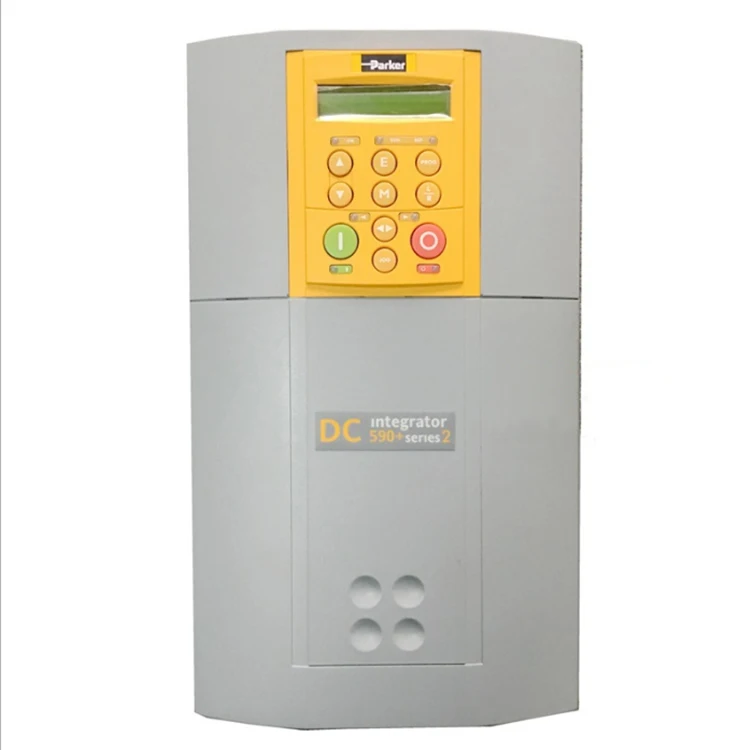

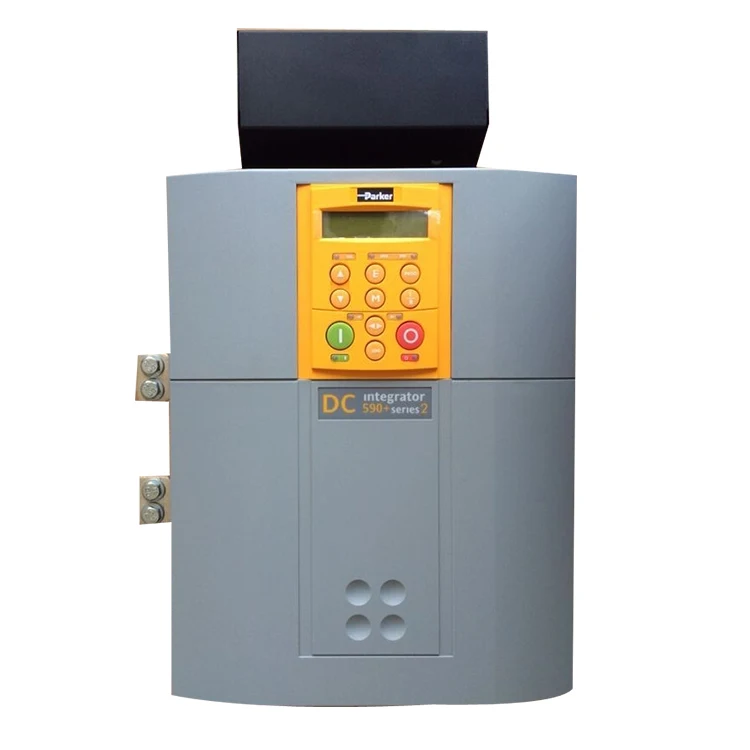

DC Drive 590P Series

The 590P Series DC Drive  is designed for use in a suitable enclosure, with associated control equipment. The unit accepts standard
three-phase ac supply voltages in the range 110V to 660V, depending upon the model, and is suitable for the powering of DC shunt
field and permanent magnet motors, providing controlled dc output voltage and current for armature and field.

The coding circuitry adjusts automatically to accept supply frequencies between 45-65Hz and possesses high immunity to
supply-borne interference. The armature controllers are phase rotation insensitive.

Product Details

Product Name	DC Drive 590 Series
Model Number	590P-53318032-P00-U4A0
Type	DC/DC Inverters
Input Voltage	200-500v
Output Voltage	500V
Rated Current	180A
Output Frequency	50Hz/60Hz
Package Size	640*360*410MM
Weight	20KG
Warranty	12 Months

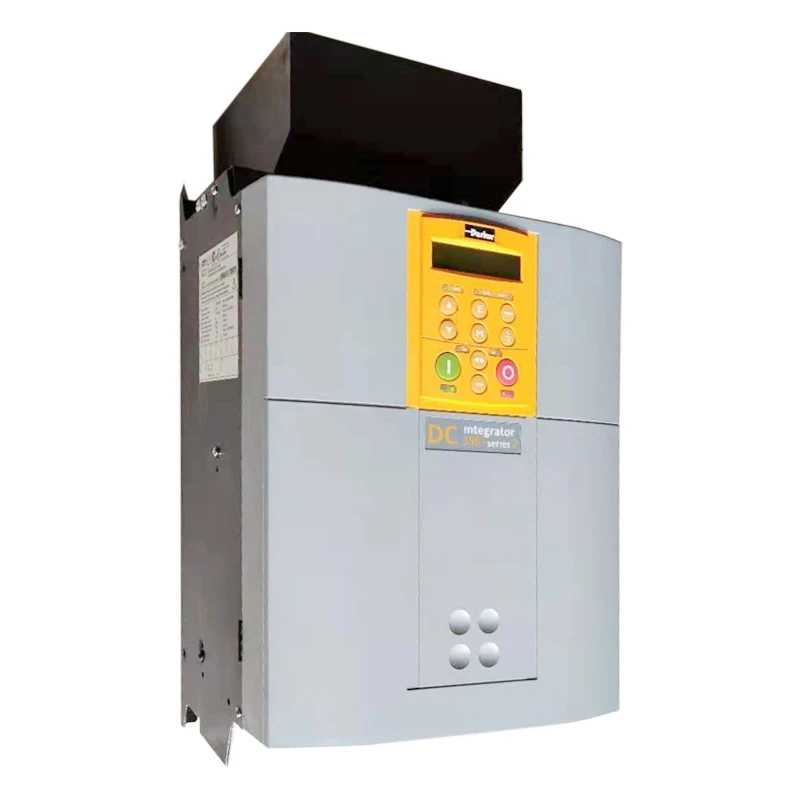

DC Drive - 590P Series | #590P-53318032-P00-U4A0
The advanced 590P series 4-quadrant variable speed DC drives offer current ratings of up to 1950A, function block programming,
configurable I/O and extensive application software, meeting the demands of the most complex DC motor control applications.

Product specifications

Selection Table

590P Model	Rated current	Input voltage	Mode of operation
590P/0015	15A	500v	Reversible
590P/0035	35A	500v	Reversible
590P/0040	40A	500v	Reversible
590P/0070	70A	500v	Reversible
590P/0110	110A	500v	Reversible
590P/0165	165A	500v	Reversible
590P/0180	180A	500v	Reversible
590P/0270	270A	500v	Reversible
590P/0380	380A	500v	Reversible
590P/0500	500A	500v	Reversible
590P/0725	725A	500v	Reversible
590P/0830	830A	500v	Reversible
591P/0015	15A	500v	Irreversible
591P/0035	35A	500v	Irreversible
591P/0040	40A	500v	Irreversible
591P/0070	70A	500v	Irreversible
591P/0110	110A	500v	Irreversible
591P/0165	165A	500v	Irreversible
591P/0180	180A	500v	Irreversible
591P/0270	270A	500v	Irreversible
591P/0380	380A	500v	Irreversible
591P/0500	500A	500v	Irreversible
591P/0725	725A	500v	Irreversible
591P/0830	830A	500v	Irreversible

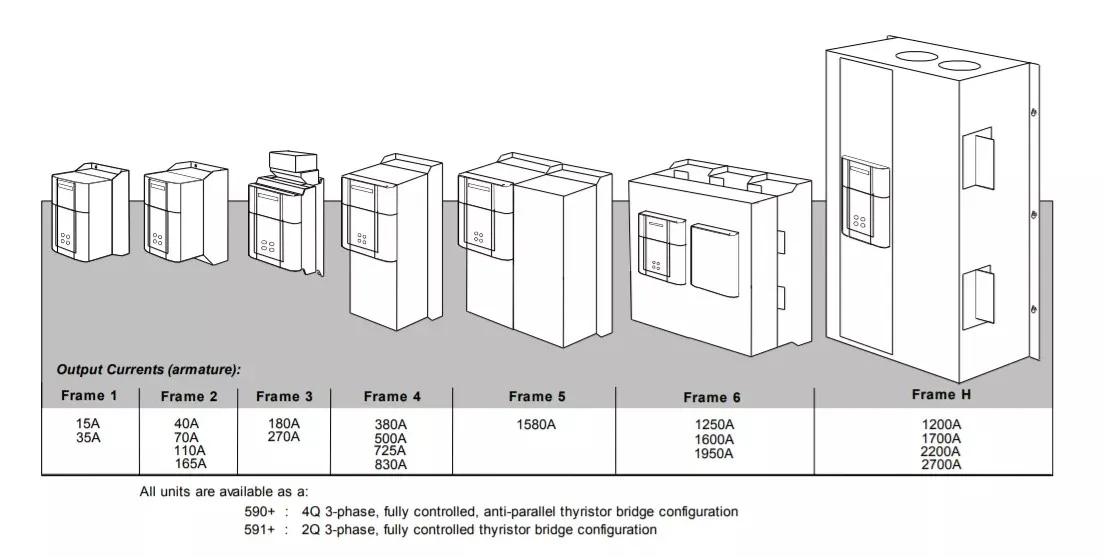

DC Drive 590P/591P Series 15-35A

DC Drive 590P/591P Series 40-165A

DC Drive 590P/591P Series 180A

DC Drive 590P/591P Series 270A

DC Drive 590P/591P Series 380-830A

DC Drive 590P/591P Series

Installation Instructions

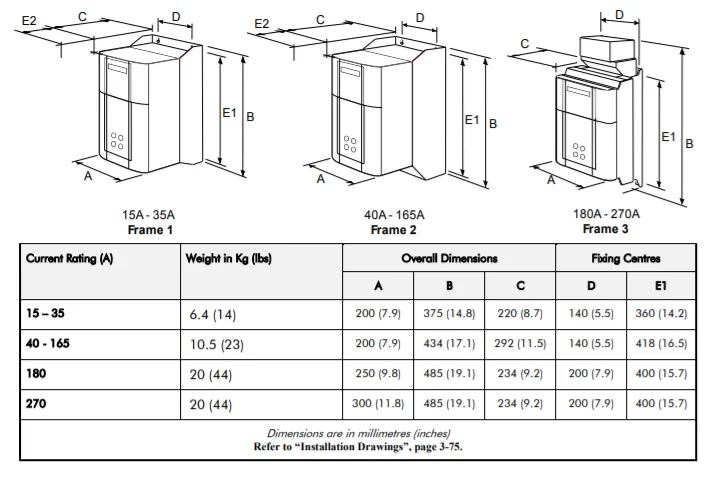

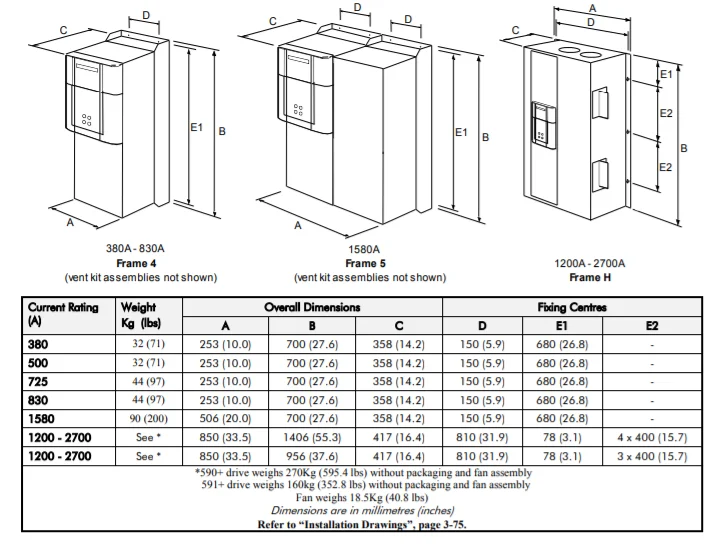

Size and Installation -- DC Drive 590 Series

All units are designed for simple and economical panel mounting using keyhole slots.

Plug-in control connectors simplify the fitting and removal of the unit to the panel where possible standard parts are used
throughout the range thereby reducing the variety of spare parts required to maintain a multi-drive system.
For example, the same basic control boards are used in all types of three-phase armature controller regardless of horsepower or bridge configuration.
The control circuit is totally isolated from the power circuit thus simplifying the interconnection of controllers within a system and improving operator safety.

Size and Installation 590P

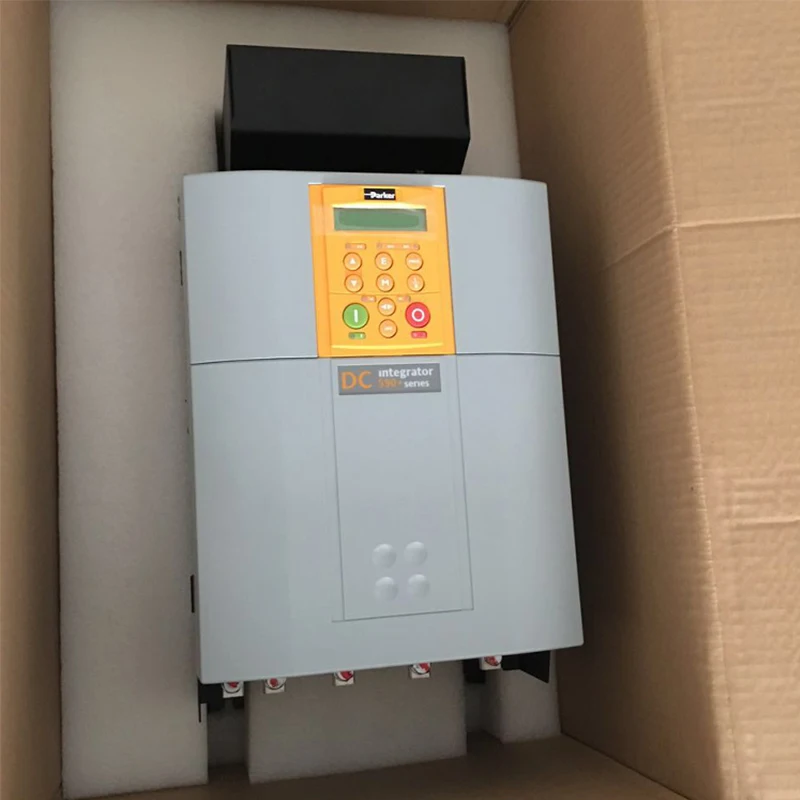

Logistics and Packaging
