0.6m 1.2m 75w 9600lm UL844 Class I Div 2 Led Lighting Explosion Proof Led Lights Led Explosion Proof Linear Lights

LED Explosion Proof Linear Light CES-EX-LN-02P Series with UL ATEX Certificates

Replacement of traditional explosion-proof lamp, traditional explosion-proof three-proof lamp

application range:

CES-EX-LN-02P is primarily used to replace conventional explosion-proof fluorescent lamps for Class I Zone 2, Groups A, B, C and D, with high lumen luminous flux, which can be used for general area lighting in wastewater treatment, oil and gas refineries, petrochemical facilities, food and beverage facilities, tunnels, outdoor wall and column installations.

Features:

l  High light efficiency: up to 140 LPW；

l  CCT: 3000K / 4000K / 5000K / 6500K；

l  -40 °C to + 55°C ambient operating temperature

l  Optical reflector: uniform illumination

l  caliber: 3/4 "-14 NPT, M25 X1.5-6H or M26 X1.5-6H;

Standard material：

Housing - Aluminum alloy (ADC12 and 6063)；

Lenses - polycarbonate (PC)；

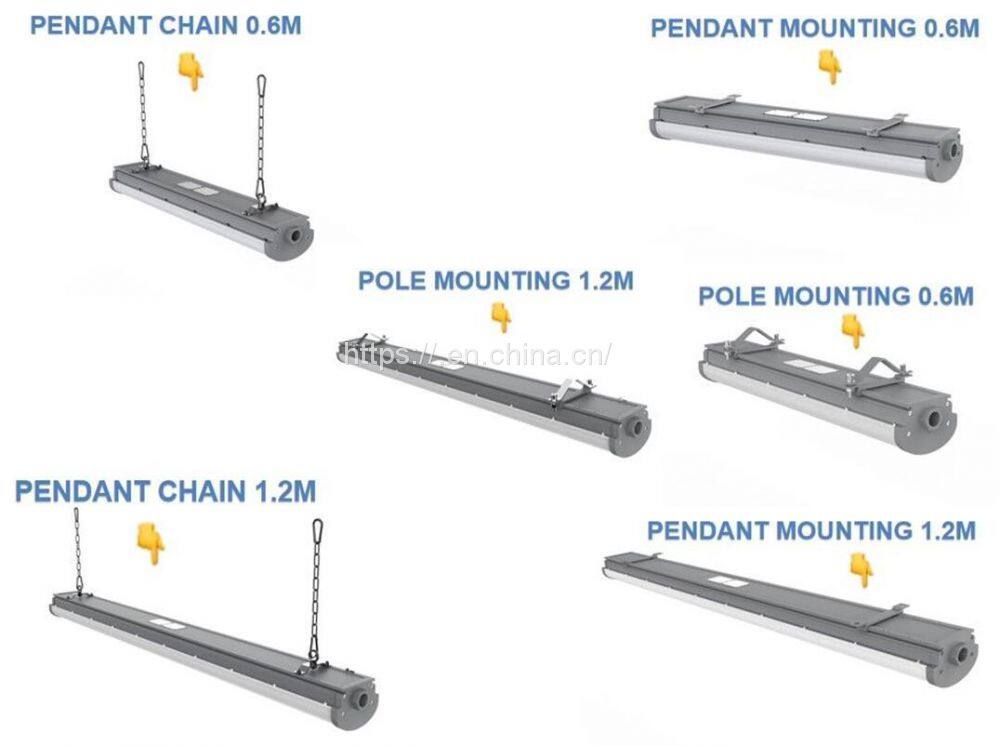

 Installation (to be ordered separately) :

l  Multiple installation options：

l  lifting frame

l   wall-mounted installation

l  Installation Angle: 0° to ±60°；

Certification and Safety：

NEC / CEC:

Class I, Division 2, Groups A, B, C and D;

T-Class: T *:

Damp and wet locations

Certificate NO.: E475887-UL-CUL

Certification Standard：

US:  UL 844; UL 1598;

Canada: CSA C22.2 No. 137; CSA C22.2 No. 250.0;

CES-EX-LN-02P  explosion proof LED Lamp parameters

Size:

Applicable to CES-EX-LN-02P-30B, CES-EX-LN-02P-40B, CES-EX-LN-02P-50B.

Length x width x height: 629 mm x 138.3 mm x 98.1 mm

0.6M explosion-proof LED fluorescent lamp replacement

Applicable to CES-EX-LN-02P-40D, CES-EX-LN-02P-50D, CES-EX-LN-02P-60D, CES-EX-LN-02P-65D, CES-EX-LN-02P-75D.

Length x width x height: 1229 mm x 138.3 mm x 98.1 mm
