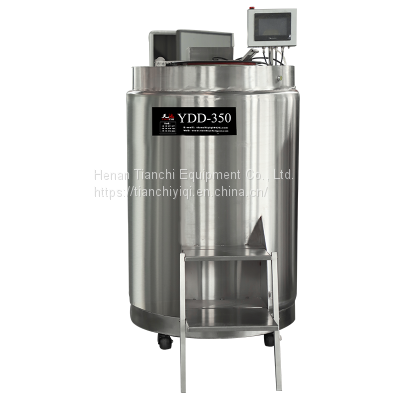

35OL storage vessels YDD-350 liquid nitrogen tank manufacturers KGSQ

Features:

1. Compatible with both liquid phase and vapor phase storage methods;

2. Double-layer vacuum insulation design;

3. Capacity ≥ 350L, can accommodate 2ml cryopreservation tubes ≥ 13,000;

4. Large-capacity liquid nitrogen design at the bottom of the tray, the temperature difference in the entire storage area is ≤10°C during vapor phase storage;

5. Remote monitoring and communication functions, call or send text messages to the designated mobile phone when alarming;

6. Intelligent local and cloud data backup and export;

7. Configure a hot gas bypass to transfer the heated nitrogen out of the tank to ensure that only ultra-low temperature liquid nitrogen is injected into the tank, ensuring sample safety and reducing additional liquid nitrogen consumption;

8. Rotatable sector design, liquid nitrogen storage intelligent monitoring and management system

9. Multiple humanized designs

Product parameters:

Amount of liquid nitrogen at the bottom of the tray (L): 55

Effective volume in the tank (L): 350

Tank diameter (mm): 326

Internal effective height (mm): 600

Tank outer diameter (mm): 875

Total height of tank including instrument height (mm): 1481

Tank empty weight (kg): 219

Tank operating height (mm): 1263

Full load total weight (kg): 502

Door width requirement ≥ mm: 895

Storage capacity:

1.2&1.8&2ml cryovials: 13000

Number of 5x5 freezing racks: 4

Number of 10x10 freezing racks: 12

5x5 box quantity: 40

10x10 box quantity: 120

Number of freezing rack levels: 10

Tianchi KGSQ has more than ten years of low-temperature manufacturing experience. Our products are widely used in animal husbandry, scientific research institutions and university sales. If you want to become our dealer, please contact us.
