Home > Products > stone cutting machine > Hualong Machinery HLQY series High Efficiency multiblade Bridge saw Granite Block Cutter Stone Cutting Machine
Hualong Machinery HLQY series High Efficiency multiblade Bridge saw Granite Block Cutter Stone Cutting Machine
US$ 28000 - 31000
/ Set
1 Set(Min. Order)
- XiaMen or FuZhou
- T/T L/C Other
You May Like
-
Hualong Machinery PLC for High Speed Granite Polishing Edge and Surface HLMJX-16 8 /12/14/16/18 Heads in China
-
HUALONG Machinery HLSQ-700 natural stone cutting machinery infrared stone bridge saw for quartz marble
-
HUALONG machinery HKNC-500 multifunctional 5 axis cnc router Bridge Saw Granite Marble Stone Cutting Machine with milling
-
HUALONG machinery HLSD3-1525 granite marble Buddha statue making carving router 3D CNC Stone Sculpture Machine for sale
-
HUALONG machinery HKNC-450J Italian system automatic 5 6 Axis CNC machine stone Bridge saw and water jet waterjet Sawjet Saw Jet
-
Hualong Machinery HKNC-650 Italy system Bridge Saw 5 Axis Stone tiles Cutter CNC Granite Cutting Machine Processing Center
Product Details
| Brand Name | HuaLong | Place of Origin | China | |
| Model Number | HLQY series | Type | Stone Cutting Machine | |
| Use | Other, stone cutting | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 Year | |
| Weight | 13000 kg | Dimension(L*W*H) | 7800x5000x4500mm | |
| Production Capacity | 30 Set/Sets per Month | Condition | New | |
| Voltage | 380V/220V | Power(W) | 62.3 kw |
Product Description

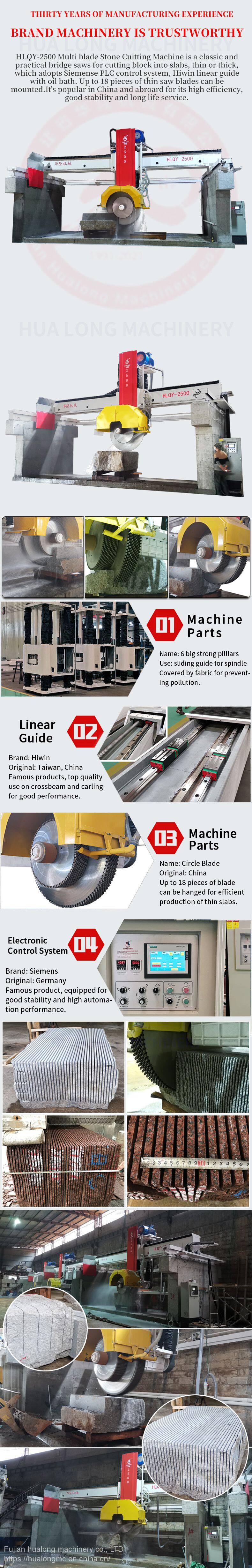

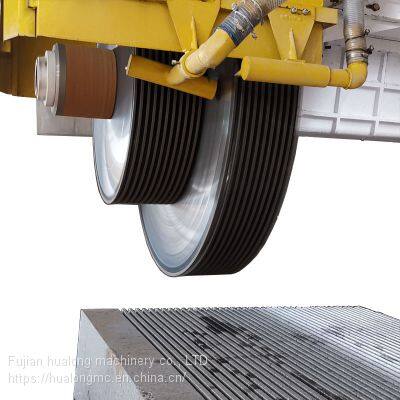

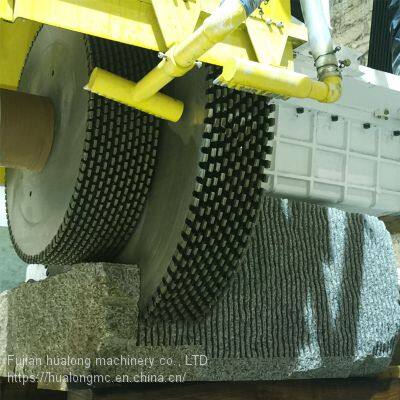

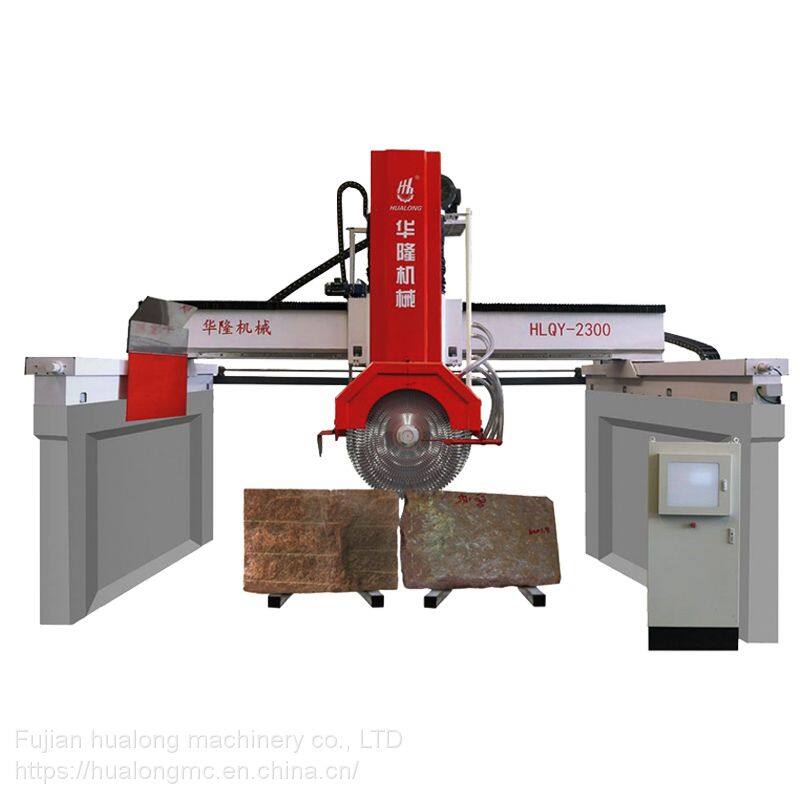

HLQY-2500 is a classic and practical bridge saws for cutting block into slabs, thin or thick. which adopts Siemense PLC control system, Hiwin linear guide with oil bath. Up to 18 pieces of thin saw blades can be mounted.
It's popular in China and abroard for its high efficiency, good stability and long life service.
1) Siemens smart PLC control system makeshigh automation performance and easy.
2) Adopts 4 pillars for spindle sliding, which ensure the structure of the machine is steady and the lifting is stable.
3) Two-slider frame structure driven synchronized by screw with high stiffness and stability.
4) Sliding system of X and Y axes on linear guides and racks both in oil bath lubrication grants smooth and high production.
Q:What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
