Roll Forming Machine For galvanized filter hold frame & pocket filter panel frame

Square & Rectangualr Galvanized Steel Filter Hold Frame & Pocket Filter Panel Frame Machinery Manufacturer

Foldable & Reliable Metal Air Frames, Filter Holding Frame Making Machine. Manual bending enclosure steel holding frames. Size Changeable steel filter frame bending machine.

Size Changeable steel pad-frame, HVAC metal frame channel roll forming machine manufacturer

Process

Uncoiler →Servo feeder→ Guide device → Hydraulic Punch → roll forming machine →shear device (including knife)→ finished product rack

sales@superdamachine.com

Steel pad-holding frame roll forming machine list

 Uncoiler

1、 Type：Manual Expansion

2、Parameter

1）Passive   discharge

2） Coil weight：<  2T

3）Coil inner D.：φ450mm-φ530mm

4）Max. Width.200mm

5)   Thickness .0.4-0.6mm

6)   Power.1.5kw

Servo Feeder
3.1 Max. feeding width:200mm
3.2  Feeding thickess: 0.4-1.6mm

3.3  Motor , 0.85ＫＷ(Yaskawa)

 Guide device

Filter pad holding frame forming system data

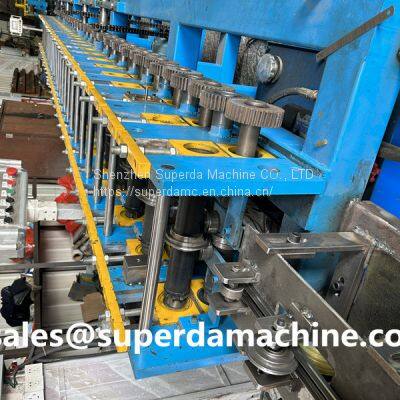

5.1  Forming Roller：20 stations，and add Rub-roll, To make sure the surface profile no scratches.

5.2  Side Panel：T.18mm ,A3 steel   Heavy duty 。

5.3  Rolling speeding: 5-8 m/min。

5.4  Roller material：#45，overall quenching, hardness HRC56-62 ℃.
5.5  Motor power：11KW。
5.6  Main Roller ：￠65mm，45 #。
5.7  Equipment base: 45 # H type using welded steel plate.
5.8  Transmission: chain drive.
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.

Some components are Schneider brand devices.

Steel Pad/Filter Frame Roll forming production line including

Metal filter holding forming machine accessories brand
