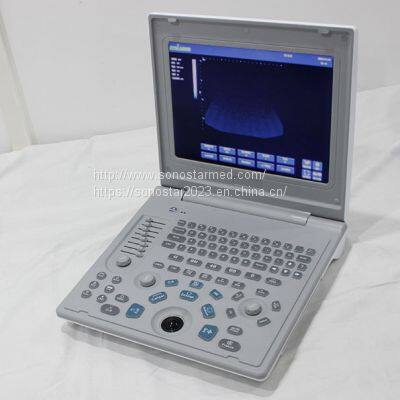

SS-6B Laptop All-Digital Ultrasound
Negotiable
/ Piece
1 Piece(Min.Order)
- T/T PayPal
You May Like
Product Details
| Place of Origin | China | Type | Doppler Ultrasound Equipment |
Product Description
Product advantage >>>>>>
-High-definition, richly functional all-digital laptop ultrasound diagnostic system
-High-definition, richly functional all-digital laptop ultrasound diagnostic system
-Mainly used in heart, abdomen, urology, obstetrics and gynecology, pediatrics etc
-Powerful image post-processing function. First-class digital imaging technology, clearer image.
Easy to operate, strong endurance
-Intelligent menu, easy and quick man-machine dialogue
Technical specifications>>>>>>
? Using ARM chip architecture, stable, concise and powerful.
? Uses 12 inch and 1024*768 resolution high-definition LED LCD screen.
? With an image post-processing function, and integrates a large amount of clinical experience with different preset adjustment conditions for the parts or organs examined in different departments and has a one-key optimization function.
? With different race formulas.
? Adopts hospital standard report form page settings, which can input hospital, patient, physician, diagnosis results and automatically inspect measurement data and select diagnosis pictures
? Multiple languages: Chinese, English, German, French, Spanish, Portuguese, Russian, Persian, Arabic etc.
? Built-in user manual.
2.3.1 Imaging modes: B, B+B, B+M, M, 4B
Probe array element: automatically identify and use a variety of array element probe（80 elements,96 elements,128 elements) Note: Only the probes produced by our company.
2.3.2 Cine playback：≥500 frame
2.3.3 Image storage: ≥360 images. External USB storage, single image storage time ≤9 seconds (storage speed is related to the USB device used)
2.3.4 Scanning angle adjustment: adjustable
2.3.5 Image magnification: separate swirl depth adjustment (25 levels adjustable);
2.3.6 Puncture: with puncture guide line, angle and position are adjustable
2.3.7 Focus: adjustable focus position, 5 levels of focus position adjustment
2.3.8 Image adjustment: up and down, left and right, brightness, focus position, dynamic range, scanning angle, frame correlation, M speed
2.3.9 Image processing: image smoothing/sharpening, tissue harmonics, gamma correction, false color
2.3.10 Notes and characters: date, clock, name, age, gender, doctor, hospital name, image annotation
2.3.11 Position mark: ≥97 types
2.3.12 Measurement
a) Routine: distance, perimeter, area, volume
b) Heart: 18 measurements including left atrium, right atrium, left ventricle, right ventricle, aorta, descending aorta, and aortic isthmus etc
c) Obstetric: 43 measurements including gestational sac, double parietal diameter, head circumference, abdominal circumference, femur length, fibula length, head buttock diameter, yolk sac, abdomen, large and small brain, last menstruation, amniotic fluid, gestational age, expected date of delivery, fetal weight etc
d) Gynecological: uterine body, cervix, endometrial thickness, ovary, follicle
e) Urology: kidney, adrenal gland, prostate, testicular mass, epididymis etc
f) Pediatric: common hepatic duct, common bile duct, pancreas, spleen, kidney, adrenal gland, etc
g) Small organ: thyroid, seminal vesicle, testis, scrotum, breast mass, skin mass, etc.
2.3.13 Report function: automatically generate reports on abdomen, urology, obstetrics, heart etc. SS-6 is equipped with an ultrasound workstation report page, which can extract and store 1-4 images. Use hospital standard report page settings, you can enter hospital, patient, physician, diagnosis result information etc. Automatically import inspection measurement data, and select diagnosis pictures
2.3.14 External interface: VGA interface, dual USB2.0 interface, RS232 interface
2.3.15 Power saving mode: The panel button light can be turned on and off by one key, and the instrument will automatically turn off the power if it is not used for 6 minutes. Press any key to resume operation
