Parker frequency converter 690-431550B0-BF0P00-A400 full series models provide technical support

FOB Price

USD $1650 - $1700 / Piece

1 Piece(Min.Order)

Supply Ability 50 Piece / Pieces per Month
Port shanghai，qingdao，yiwu，shenzhen
Payment TermsT/T Credit Card
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Parker ac Frequency changer		Place of Origin	China
Model Number	220V-500V		Motor Type	AC Motor

Product Description

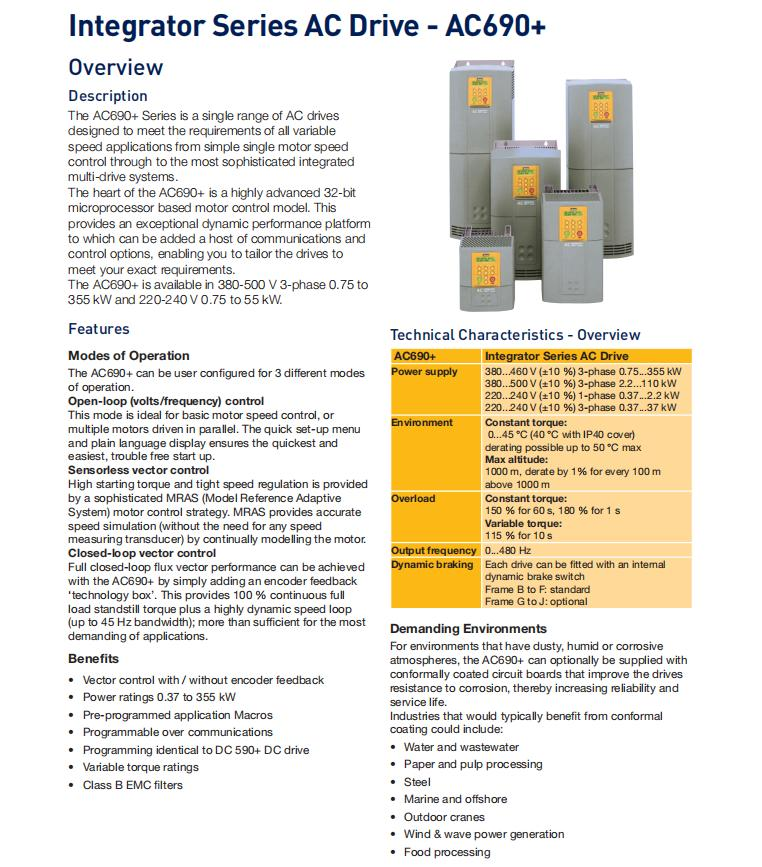

The Parker AC690 + Integrator series is a single family of AC drives designed to meet the requirements of variable speed
applications ranging from simple single motor speed control to more complex integrated multi-drive systems. At the heart of the AC690 + is an advanced motor control model based on a 32-bit microprocessor. This provides an excellent dynamic performance platform that adds a large number of communication and control options, allowing you to customize the drive to suit your exact requirements. The AC690 + offers 380-460V three-phase 1 to 1500 HP and 220V to 240V 1 to 75 HP.

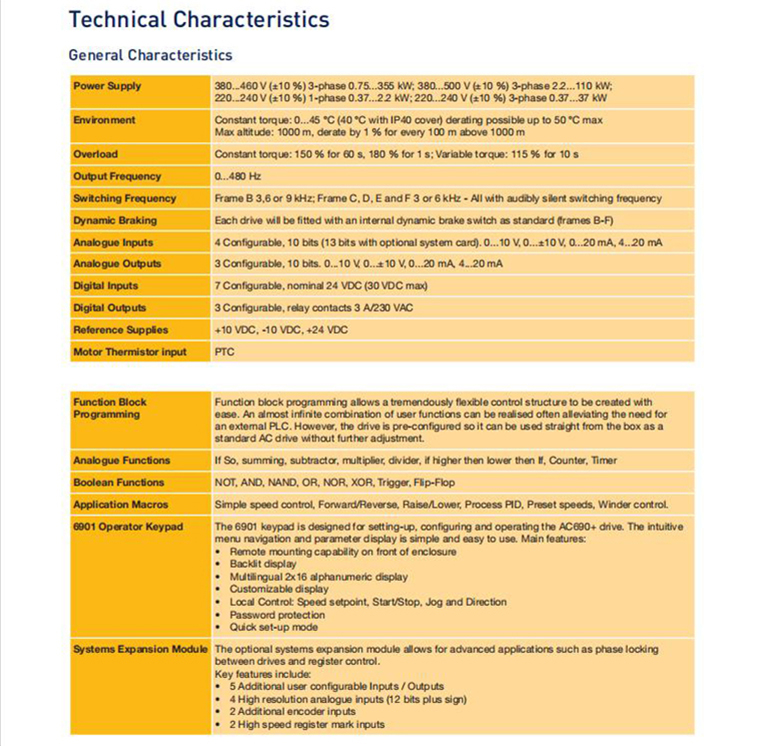

Brand	Parker	Product Type	AC Drive
Drive Axis Type	Single Axis Technology	Product Series	AC690
Input Voltage	1230VAC 3230VAC 3380-480VAC 3500-690VAC	Output Power	0.75 - 355 KW
Compatible Motor Type	Induction Spindle	Compatible Feedback Device	Incremental Encoder
Modes of Control	V/Hz Sensorless Vector Closed Loop Vector	Communication Interface	RS232 / RS485 CANopen DeviceNet Profibus-DP Ethernet TCP/IP Link Communications
Operating Temperature	0-45°C / 0-40°C with IP40 cover /' derate up to max 50 °C,32-113F / 32-104F with IP40 cover (derate up to 122F max)°F	Operating Altitude	Up to 1000m ASL (derate >1000m)
Overload Rating	Heavy Duty Rating (ConstantTorque) : 150% for 60s Heavy Duty Rating (ConstantTorque) : 180% for 1s Normal Duty Rating (VariableTorque - pumps and fans) :115% for 10s	Specifications Met	CE(EMC & LVD) UL Listed cUl listed

Company Introduction

TLDE Automation Technology Co., LTD. (TLDE) is located in Dangshan County Economic Development Zone, Suzhou City, Anhui Province.It covers an area of about 17,000 square meters and owns about 16,000 square meters of automation plant. Tlde is a professional enterprise engaged in R&D, manufacturing and sales of motor drive and control automation technology. The company has a number of invention patents, its leading products include DC/900 Chinese and English DC drive, AC980 high-end inverter, high-power expansion all-in-one machine, DC transmission expansion cabinet, TL600 vector inverter, etc., throughout Asia, Africa, Europe and other countries, widely used in metallurgy, cable, papermaking, rubber, mining, etc. Can meet different working conditions, products involved in automation control applications, mechanical and electrical transmission control, motor energy saving, industrial energy saving and other fields.

The company has carried out industry-university-research cooperation with many universities and colleges, carried out exchanges on numerous scientific research projects, and carried out in-depth cooperation in core technologies and other aspects of the enterprise, established long-term cooperative relations, and constantly deepened the technological innovation ability. Through independent innovation, integrated innovation, introduction, digestion and absorption and other ways to achieve product technology upgrade.

At present, the company's R&D technicians account for more than 30%, among which engineers and people with master's degree orabove account for more than 50%. The company has an independent R&D center with an area of 300 square meters. Since its establishment, the company has been adhering to the "scientific and technological innovation, reputation based" for the purpose, adhere to the "quality first, pragmatic work, integrity management" concept, carry forward the continuous improvement, the pursuit of excellence of the professional spirit, down-to-earth, strictly regulate the code of conduct of the enterprise, to ensure that quality products to serve customers. The company always adhere to the technology as the base, committed to provide users with cost-effective equipment, perfect solutions, satisfactory after-sales service.
