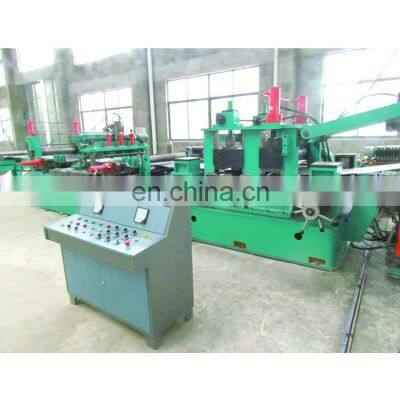

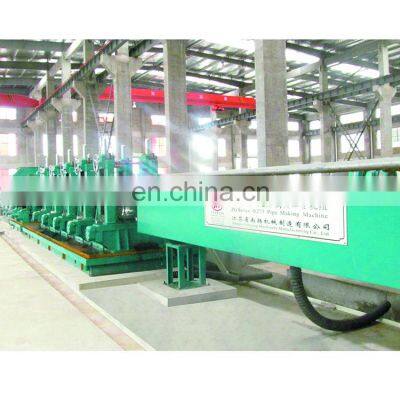

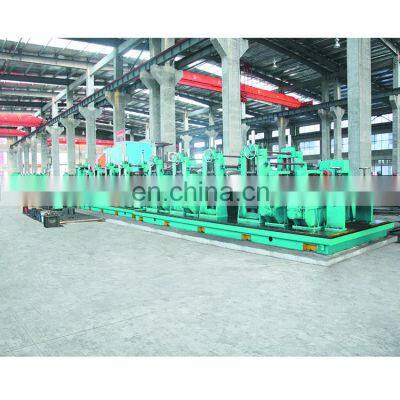

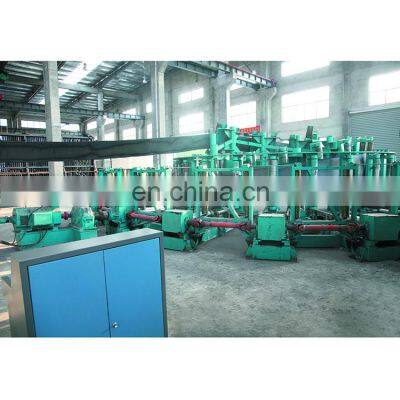

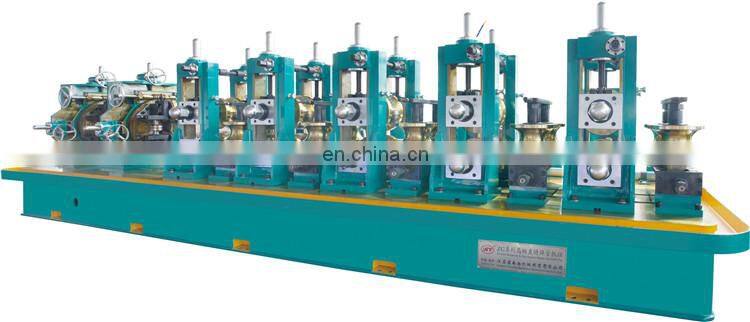

Nanyang Carbon Steel Tube Mills Pipe Making Machine API Carbon Steel Tube Pipe Welding Machine
- T/T Credit Card
You May Like
-
Nanyang Forming Welding Sizing Machine Tube Mill Pipe Making Machinery
-
Nanyang Factory Direct Sale Machinery Aluminium Air API Steel Pipe Making Machine
-
Nanyang Stainless Steel Welded Production Tube Mill Line Pipe Making Machine
-
Nanyang Welded Production QG Series Precise Tube Mill Line Pipe Making Machine For Car Industry
-
Nanyang Welded Production Stainless Steel Tube Mill Line Pipe Making Machine
-
QGF Series High Strength Welded Production Precise Tube Mill Line Pipe Making Machine For Car Industry
Product Description
| Model |
Tube O.D. (mm) |
Thickness (mm) |
Square&Rectangle (mm) |
Thickness (mm) |
Speed (M/min) |
| ZG16 | Φ8~Φ25mm | δ0.3~1.0 | 10×10~20×20 | δ0.3~0.8 | 30~120M/min |
| ZG25 | Φ8~Φ32mm | δ0.4~1.3 | 10×10~25×25 | δ0.3~1.0 | 30~110M/min |
| ZG32 | Φ13~Φ40mm | δ0.5~1.8 | 10×10~30×30 | δ0.4~1.4 | 30~100M/min |
| ZG45 | Φ16~Φ50.8mm | δ0.6~2.3 | 12×12~40×40 | δ0.6~1.6 | 30~100M/min |
| ZG50 | Φ19~Φ63.5mm | δ0.7~2.75 | 15×15~50×50 | δ0.7~2.3 | 30~100M/min |
|
ZG50 (Enlarge to 76) |
Φ19~Φ76mm | δ0.7~2.75 | 15×15~60×60 | δ0.7~2.3 | 30~100M/min |
| ZG60 | Φ19~Φ63.5mm | δ0.8~3.5 | 15×15~50×50 | δ0.8~2.75 | 30~90M/min |
|
ZG60 (Enlarge) |
Φ19~Φ76mm | δ1.0~3.0 | 15×15~60×60 | δ1.0~2.5 | 30~80M/min |
|
ZG60 (Enlarge to 102) |
Φ22~Φ102mm | δ1.0~3.0 | 16×16~80×80 | δ1.0~2.5 | 20~80M/min |
| ZG76 | Φ25~Φ90mm | δ1.0~4.0 | 200×20~70×70 | δ1.0~3.5 | 30~70M/min |
|
ZG76 (Enlarge to 127) |
Φ32~Φ127mm | δ1.2~4.0 | 25×25~100×100 | δ1.2~3.0 | 30~70M/min |
| ZG90 | Φ32~Φ127mm | δ1.5~4.5 | 25×25~100×100 | δ1.5~3.75 | 20~60M/min |
|
ZG90 (Enlarge to 140) |
Φ40~Φ140mm | δ1.5~4.5 | 30×30~110×110 | δ1.5~3.75 | 20~60M/min |
| ZG115 | Φ48~Φ127mm | δ1.5~5.0 | 40×40~100×100 | δ1.5~4.0 | 20~60M/min |
|
ZG115 (Enlarge to 165) |
Φ60~Φ165mm | δ1.5~5.0 | 50×50~130×130 | δ1.5~4.0 | 20~60M/min |
| ZG165 | Φ50.8~Φ165mm | δ2.0~6.0 | 40×40~130×130 | δ2.0~5.0 | 15~50M/min |
|
ZG165 (Enlarge to 219) |
Φ76~Φ219mm | δ2.0~5.0 | 60×60~170×170 | δ2.0~4.0 | 15~50M/min |
| ZG219 | Φ89~Φ219mm | δ2.5~8.0 | 70×70~170×170 | δ2.5~6.0 | 12~35M/min |
| ZG273 | Φ114~Φ273mm | δ3.0~10.0 | 90×90~210×210 | δ3.0~8.0 | 10~30M/min |
Q: Which products your company are manufacturing?
A:Our company main products is Carbon steel/GI pipe pipe making machine and also we can make Stainless steel pipe making machine.
Q: What advantage for the machine?
A:We have Adopt first class suppliers. like "Hangzhou Xinhengli" DC Motor, "GUOMAO" Reducer, Siemens AC motor on the machine.
Q: Can you print the company name or logo on the pipes?
A: Yes. We can print your logo or company name on the pipes by Stamping or Coating.
Q: What payment terms you can accept?
A: We can accept payment terms by T/T(30% deposit, 70% before shipment), L/C at sight
Q: When is your company delivery time?
A: For small model of machine, our delivery time is within 100 days, It depends on your machine model.
Q: How many workers will need to operate the machine?
A: 3~6 workers for one line, need one skillful stuffs for adjusting the machine rollers.
Q: How long will take to change the roller on the machine?
A: If one worker to change the roller, will need about 4~6 hours to change , But sometime is according to the worker whether have enough familiar to decide.
Q: How many tons for normal machine to production per month?
A: Our machine is according to the model to decide , under the situation, one machine can produce 1400 tons per month.
Q: How we get from the machine for after service?
A: We will supply technical support for installation , operation and maintain etc ,Also we can arrange the technical engineer to your company .
