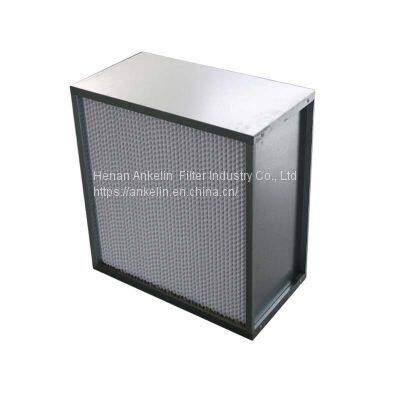

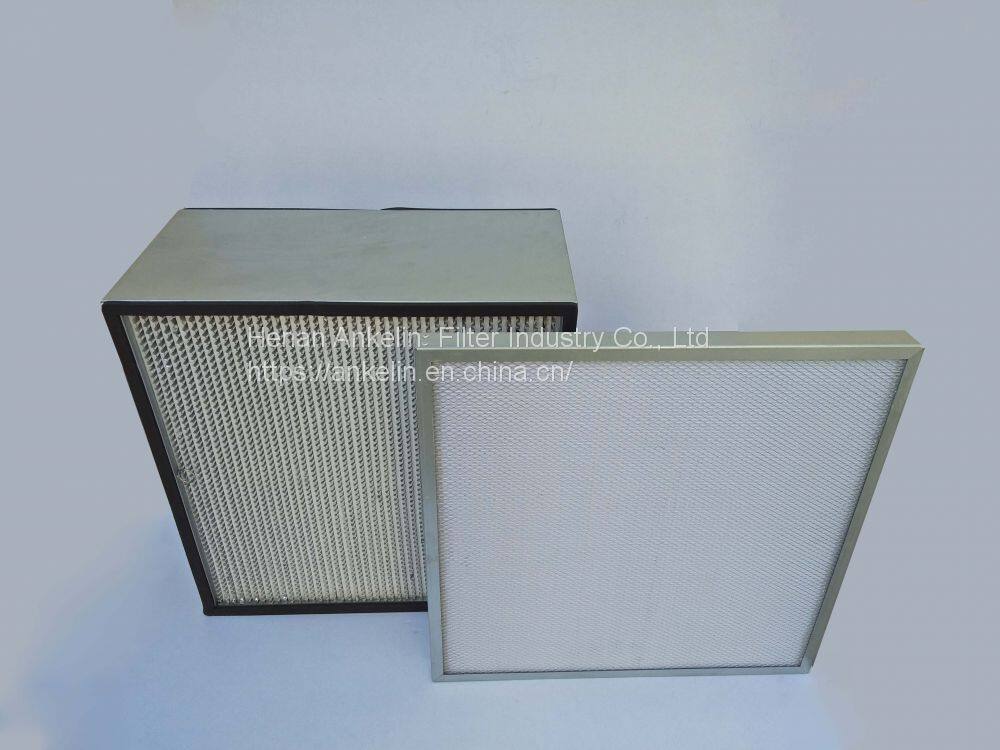

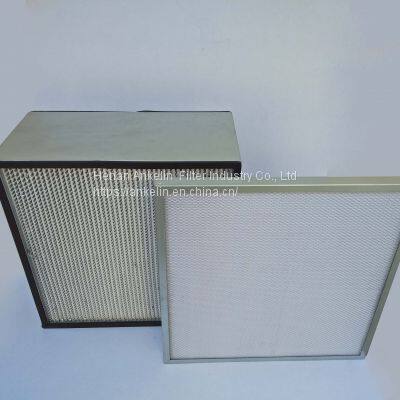

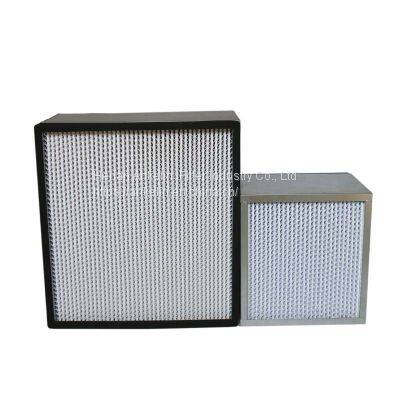

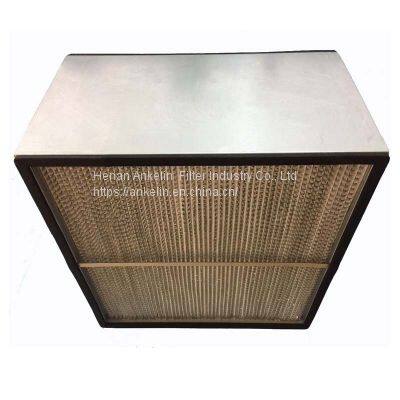

AGB high-efficiency filter

Traditional high-efficiency filters with partitions have been widely used in clean engineering for half a century. Due to its many advantages such as simple manufacturing, high temperature resistance, and impact resistance, in today's constantly updated filter variety, partition filters still occupy an irreplaceable position in many occasions, such as large pharmaceutical factories and hospitals, where partition high-efficiency filters alone dominate.

The AGB produced by Anklin has partition filters, which are widely used in purification engineering in various industries, as well as air conditioning and process air supply systems with special requirements.

According to market demand, Anklin produces three sizes of AGB type baffle filters:

International specifications with a basic size of 610mm (24 ")

Domestic traditional specifications with a basic size of 484mm

Domestic specifications with a basic size of 630mm

main performance

Filtration efficiency (sodium flame method): 99.97% 99.99% (can be customized according to requirements)

Filter material: high-quality chemical fiber glass fiber material

Outer frame: galvanized frame, stainless steel multi-layer plywood, dense board, etc. (can be customized according to requirements)

Partition: Paper partition aluminum partition

Sealing: polyurethane

Working temperature: -20-90 ℃

humidity

Aluminum partition ≤ 99%

Paper partition: ≤ 85%

All AGB baffled filters of Anklin have undergone performance testing one by one before leaving the factory. In general, the sodium flame method according to the international standard GB6165 is used for testing. According to customer needs, international standards can be used for testing.
