Wear-resistant Solid Engineering Plastic Mc Nylon Plate

MC nylon plate - Currently on the market commonly used MC nylon plate mainly has the following types:

One: MC Nylon (ivory white) :

The properties of unmodified cast nylon 6 are very close to those of nylon 66. It has good comprehensive properties, high strength, stiffness and hardness, creep resistance, wear resistance, heat aging resistance and good machining performance.

Two: MC901 (blue) :

This modified nylon 6 has an eye-catching blue color, higher toughness, flexibility and fatigue resistance than ordinary cast nylon, proving to be an ideal material for gears, racks and transmission gears.

Three: PA6+ oil (green) :

This cast nylon 6 is true to the name of the self-lubricating nylon, is specially developed for the manufacture of non-lubricating, high load and low running speed parts, greatly broaden the scope of nylon application, it is lower than ordinary nylon friction coefficient (can reduce 50%) and wear resistance is improved (can improve 10 times).

Four: PA6+ molybdenum disulfide (gray black) :

Molybdenum disulfide powder can improve the bearing capacity and wear resistance of unmodified cast nylon without affecting its impact and fatigue resistance. It is widely used in the manufacture of gears, bearings, star wheels and sleeves.

Five: PA6+ solid lubricant (grey) :

Using a patented cast nylon 6 formula containing a solid lubricant, the material is self-lubricating, excellent friction, outstanding wear resistance and pressure velocity capability (5 times higher than ordinary cast nylon). Especially suitable for high-speed running, unable to lubricate the moving parts, is the perfect complement of oily nylon.

MC nylon plate main characteristics:

High mechanical strength, stiffness, hardness, toughness, good aging resistance, good mechanical vibration reduction ability, good sliding, excellent wear resistance, good machining performance, used for precision and effective control, no creep phenomenon, good wear resistance, good dimensional stability.

MC nylon plate is also called cast nylon plate: The English name is Monomer casting nylon, which is called monomer casting nylon in Chinese. It is made by using the molten raw material C6H11NO as the catalyst under atmospheric pressure, and making the monomer to be polymerized together with the activator and other auxiliators, and then directly injected into the mold preheated at a certain temperature. Make the material in the mold quickly polymerization reaction, condensation into a tough solid embryo, and then through the relevant process treatment, get the predetermined plate

Guangzhou Yayan Plastic Products Co., LTD. Spot supply: PEEK board/stick, PPS board/stick, PVDF board/stick, PTFE board/stick, PSU board/stick, PEI board/stick, PI board/stick, PAI board/stick, PPO board/stick, PBT board/stick, CPVC board/stick, UPE board/stick, PETP board/stick, PC board/stick, POM board/stick, ABS board/stick, PMMA board / bar, PP board/bar, PE board/bar, imported PU board/bar, German PES board/bar, domestic PVC board/bar, Swiss engineering PBI board/bar, German PA nylon series board/bar/sheet, MC nylon series board. Insulation materials: Taiwan red, black electric board, cold drawing board, phenolic laminate cloth bar board, heat insulation board, epoxy glass fiber bar board, epoxy board (FR-4) asbestos board, etc. Anti-static products: anti-static POM board/rod, anti-static organic board, anti-static PC board. Anti-static PVC plate/bar, anti-static nylon plate/bar synthetic SLATE and so on.

Welcome to visit to negotiate!

Enquiries can be reached at 020-3622 28290

Phone number: 180 2748 2446

Contact: Miss Huang

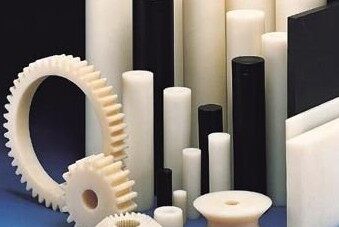

Product Description: MC nylon plate, also known as cast nylon plate: The English name is Monomer casting nylon, which is called monomer casting nylon in Chinese. It is made by using the molten raw material C6H11NO as the catalyst under atmospheric pressure, and making the monomer to be polymerized together with the activator and other auxiliators, and then directly injected into the mold preheated at a certain temperature. Make the material in the mold quickly polymerization reaction, condensation into a tough solid embryo, and then through the relevant process treatment, get the predetermined plate. "Plastic instead of steel, excellent performance", extremely wide range of uses. It has light weight, high strength, self lubrication, wear resistance, anti-corrosion, insulation and other unique properties. Is widely used engineering plastics, almost all industrial fields.

MC nylon plate main specifications: 5-200mm*500/1000mm*1000*2000mm
