Home > Products > PV Combiner Box > Metal Box 1000VDC 12 Inputs and 1 Output with Solar PV Combiner Box

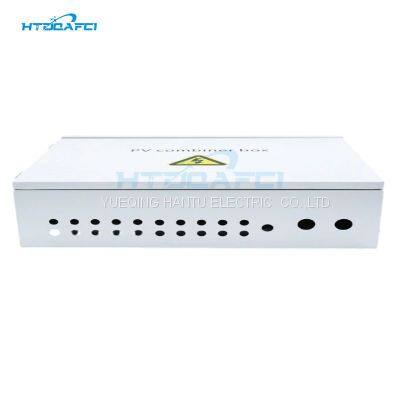

Metal Box 1000VDC 12 Inputs and 1 Output with Solar PV Combiner Box
- 100 Piece / Pieces per Month
- WENZHOU
- T/T
- 202212 days
You May Like
-
PV Combiner Box, 6 String Waterproof Solar Combiner Box with Circuit Breaker, 80A Rated Current Fuse with Lightning Arrester and 63A DC Breaker Solar
-
Hantu Electric Hot Sell Afdd Afci RCBO Smart Circuit Breaker
-
Factory Surpply Safeh SCR-Afdd/Afci
-
Safeh Iot-Afdd/Afci China factory hantu electric company supply
-
Iot RC-MCB Factory Supply Directly WiFi Circuit Breaker
-
Hantu Electric Hot Sell WIFI Circuit Breaker
Product Description
Feature:
HTV series cominer boxes are beautiful and durable, safe and reliable, widely used in factories, buildings, residences, shopping malls and other places.
The panel is made of steel material with high strength and never changes color. The combiner box is IP65/IP66
Waterproof, dustproof, anti-corrosion and durable to use.
The combiner box let user can connect a certain number of photovoltaic cells with the same specifications .
Connect together ,group or one by one photovoltaic series ,and then several photovoltaic series.
Connect the photovoltaic combiner box in parallel and after coving in the photovoltaic combiner box ,through the control,DC power distribution cabinet ,photovoltaic inverter wake-up ,AC solid power cabinet ,supporting use from it constitutes a complete photovoltaic power generation and is connected to the mains grid.
Product Parameter:
| Type | HTV-CD04 | HTV-CD06 | HTV-CD08 | HTV-CD10 | HTV-CD12 | HTV-CD14 | HTV-CD16 | HTV-CD18 | HTV-CD20 |
| IP protection(IEC60529) | IP65/IP66 | ||||||||
| IK impact resistant buckle(IEC62262) | IK08 | ||||||||
| Maximum rated voltage DC | 1000VDC | ||||||||
| Fuse holder | 1000v DC 30A | ||||||||
| DC switch with/MCCB | 50A | 80A | 100A | 125A | 160A | 225A | 250A | 315A | 350A |
| Overload protect DC | Type /In=20KA,Imax=40KA,Ucpv=1000V DC | ||||||||
| DC input number | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
| Connect DC input | PG09,IP68(MC4 Optional) | ||||||||
| Input cable size is negative and positive | Q4-8mm | ||||||||
| Output | 1 | ||||||||
| DC output number | PG36,IP68 ,22~32mm(customizable) | ||||||||
| DC grounding protection | Material :Nylon plastic ,seal :Nitro rubber Buna ,IP68 | ||||||||
| Ambinent temperatrue | -20 to 60 degrees ,humidity :0~99%, <2000m, | ||||||||
| Install | Wall-mounted/padlock door | ||||||||
Application Scenarios:
Worshop:
