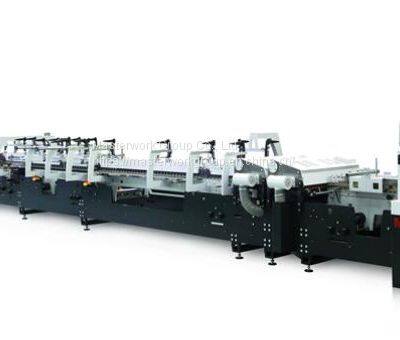

MK Diana Easy 65/85/115

MK Diana Easy 65/85/115

Besides the excellent genes on Diana Easy from Diana series, more energy-saving is available due to optimized driving system, shorter time for commission is needed and higher productivity can be reached due to the easier work on optimized modular units. Lower maintenance cost can be assured due to its easier work. Upgrading work can be done at any time necessary due to the reserved interface for extension. It fits for 3 formats, i.e. 65/85/115.

Product Features

(1)Machine Interface and Automations

Touch-screen for machine operations

Easy, intuitive handling of machine interface with self-explanatory navigation menu

SmartSet: positioning of all carriers can be stored for repeat jobs (optional)

DigiSet: automatic first set-up calculation for the positions of all carriers (optional)

(2)Compression Section For the formats 85 and 115 cm

600 mm wide compressing belt

2,4 m pressing section

Softrubber belt for precise pressure balance

Optional Start/Stop function

(3)Transfer Section

Two upper and lower carriers

Manual adjusting of upper carriers, motorized adjusting of lower carriers

Inline ejector optional or easy retrofitting

Touch-screen control panel for comfortable machine operation

(4)Folding Station

Telescopic upper right and left roller bar

Left before right folding and right before left folding as standard

Central carriers as option or easy retrofitting

Upper roller bar tiltable, easy manual assembly and dissembly of lower carriers due to light -weight construction

Belt fold down to 45 mm open carton width are possible (optional)

(5)Lockbottom Module

Left, middle and right transmission belt as standard configuration

Glue flap prefolder device at DS could be installed as optional

Reserved installation position for the second unit back folding shaft

Lockbottom box is equipped with gluing system optionally

(6)Prefolding Module

Low side frame design gives perfect accessibility for the operator

Prebreaking for crease lines 1 and 3

Prepared for code reader

Upper and lower central carriers (option and retrofitting)

Technical Parameter
